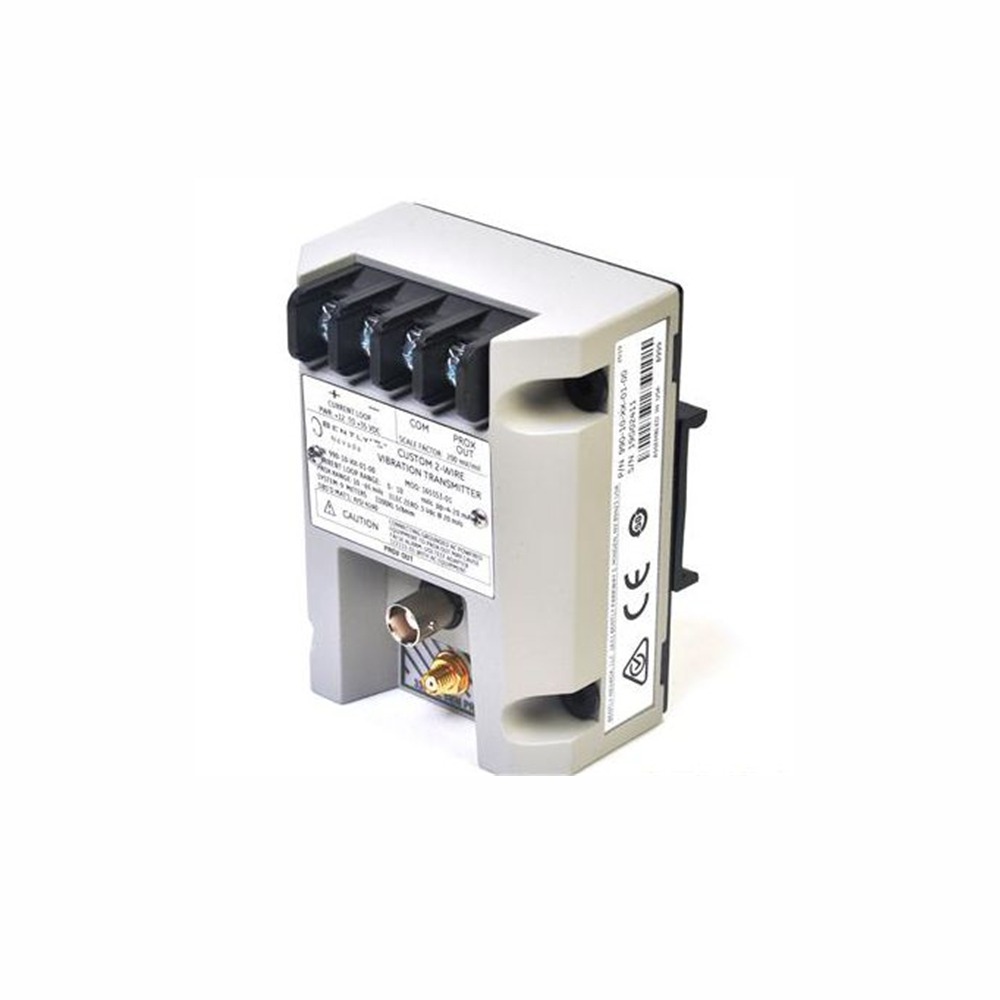

990-05-50-01-01 Bently Nevada | Two-wire Vibration Transmitter

Overview

The Bently Nevada 990-05-50-01-01 Vibration Transmitter measures machinery vibrations up to 5 mils (125 μm) for heavy-duty applications. It pairs with 3300 NSv Proximity Probes to deliver precise data. Provides a 4-20 mA output for seamless control system integration. Features 35 mm DIN rail mounting and CSA Division 2 certification for hazardous areas. Made in the USA, with optional Certificate of Origin.

Technical Specifications

• Brand: Bently Nevada
• Model: 990-05-50-01-01

  05	0-5 mils range (0-125 μm)
  50	5-meter system length
  01	35 mm DIN rail clips
  01	CSA Division 2 certified

• Electrical:
  • Input Voltage: +12 to +35 Vdc (±3% ripple)
  • Loop Resistance: 1,000Ω max at 35V
  • Output Noise: <12 mV RMS (20 Hz–5 kHz)
• Performance:
  • Accuracy: ±1.5% FS (250Ω, 25°C)
  • Probe Gap: 0.5–1.75 mm (±0.04 mm)
  • Frequency Response: 5 Hz–6 kHz (±2.5 dB)

For more detailed information:990 Vibration Transmitter Datasheet
