9200-02-01-10-00 | Two-wire Velocity Seismoprobe Transducer

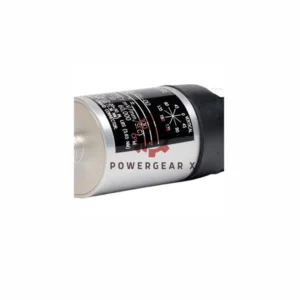

Bently Nevada 9200-02-01-10-00 Two-Wire Velocity Seismoprobe Transducer

Technical Specifications

• Velocity Range: 25 mm/s (1 in/s) at 100 Hz
• Sensitivity: 20 mV/mm/s (±5%)
• Frequency Response: 4.5 Hz to 15 kHz
• Temp Range: -29°C to +121°C
• Coil Data: 1.25kΩ ±5%, 125mH

Installation Requirements

• 45±2.5° mounting angle
• M10X1 threaded stud base
• Top-mounted terminal block

Industrial Applications

• Electric motor vibration analysis
• Centrifugal fan monitoring
• Gearbox health assessment
• Identifies imbalance in rotating assets

Package Contents

• 9200 transducer assembly
• Circular M10X1 mounting base
• Neoprene isolation gasket
• Factory test documentation

Part Number Structure (9200-02-01-10-00)

• 9200: Core Model
  • 02: 45° Mount/4.5Hz
  • 01: Terminal Block Top
  • 10: M10X1 Stud
  • 00: No Certifications
