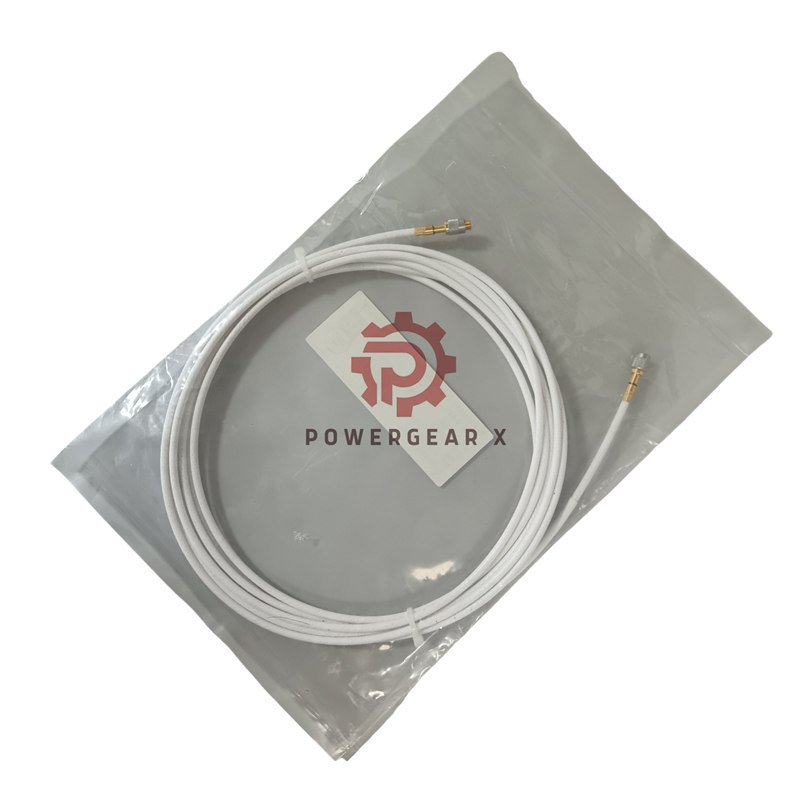

Meggitt 913-402-000-013 Proximity Measuring System Overview
Meggitt (Vibro-Meter) introduces the 913-402-000-013/A2-E040-F0-G000 proximity measuring system, designed for explosive Ex i environments. This model delivers stable, high-accuracy measurements for vibration and shaft position monitoring.
Key Technical Specifications
- Model: 913-402-000-013/A2-E040-F0-G000
- Environment (A): 2 = Explosive Ex i
- Extension Cable (E): 040 = 4.0 m ±400 mm
- Optional Protection (F): 0 = None (Cable, Connector)
- Flexible Hose (G): 000 = None
- Weight: 0.22 kg
Performance & Reliability
- Temperature Range: −40°C to +200°C
- Operating Drift: <5% at +180°C
- Short-term Survival: up to +220°C
- Protection Rating: IP68 (per IEC 60529)
- Shock Resistance: 15 g peak, 11 ms
- Vibration Endurance: 5 g peak, 10–500 Hz
- Isolation Voltage: 1500 Vrms
Construction Details
- Body Material: AISI 316L Stainless Steel
- Tip Material: Torlon (polyamide-imide)
- Coil Diameter: Ø8 mm
- Encapsulation: High-temp epoxy
- Cable: 70 Ω FEP coaxial, Ø3.6 mm
- Connector Type: Miniature self-locking coaxial
Additional Protection Options
- Stainless Steel Hose: Added mechanical protection
- FEP Sheath: Resistant to most chemicals and moisture
- Provides flexibility and low friction for harsh industrial settings
Application Areas
- Rotating machinery condition monitoring
- Vibration and shaft position measurement
- Industrial and hazardous zone instrumentation
- Machinery protection systems (API 670 compliant)
Power & Signal Requirements
- Power Source: High-frequency input from IQS900 signal conditioner
- Output Signal: Compatible with VM600, VM600Mk2, VibroSmart® systems
- Frequency Response: DC to 20 kHz (−3 dB)
- Measurement Range: 2 or 4 mm
Warranty & Delivery
- 12-month standard warranty
- Global shipping via FedEx, UPS, or DHL
- Fast and reliable international logistics support
FAQ
- Q: What is the maximum cable length for 913-402-000-013?
A: The standard cable length is 4.0 m ±400 mm, with custom lengths available. - Q: Can this proximity system be used in Ex zones?
A: Yes, it is certified for Ex i environments with full compliance. - Q: What equipment works with this model?
A: It integrates smoothly with VM600Mk2 and VibroSmart® systems. - Q: What materials protect the sensor in harsh environments?
A: Stainless steel housing and FEP sheath ensure mechanical and chemical protection. - Q: What is the main advantage of the Meggitt 913-402-000-013?
A: It provides stable, accurate readings even at high temperatures up to +200°C.
