Product details

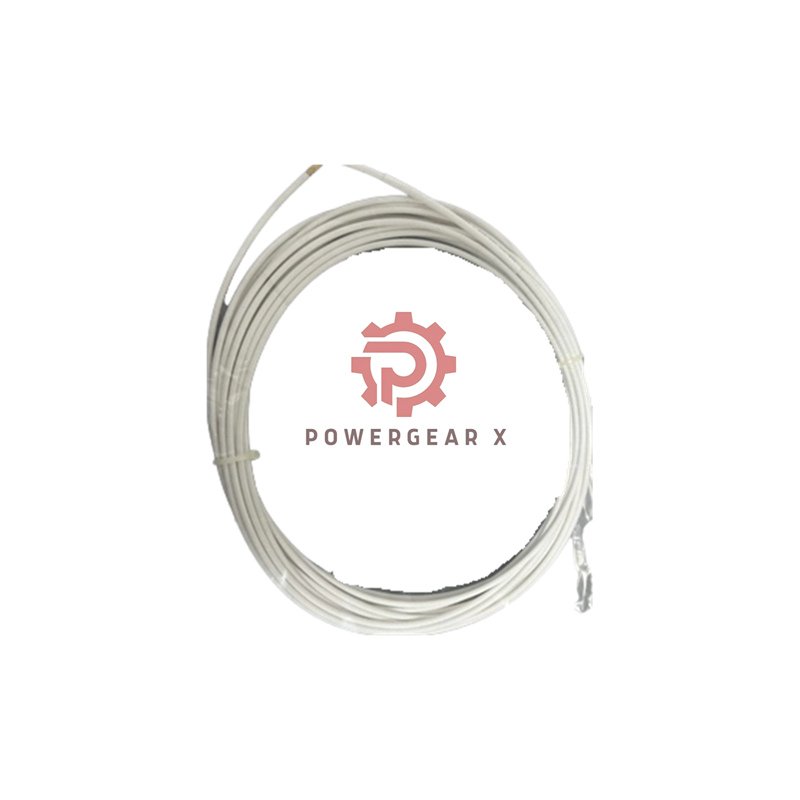

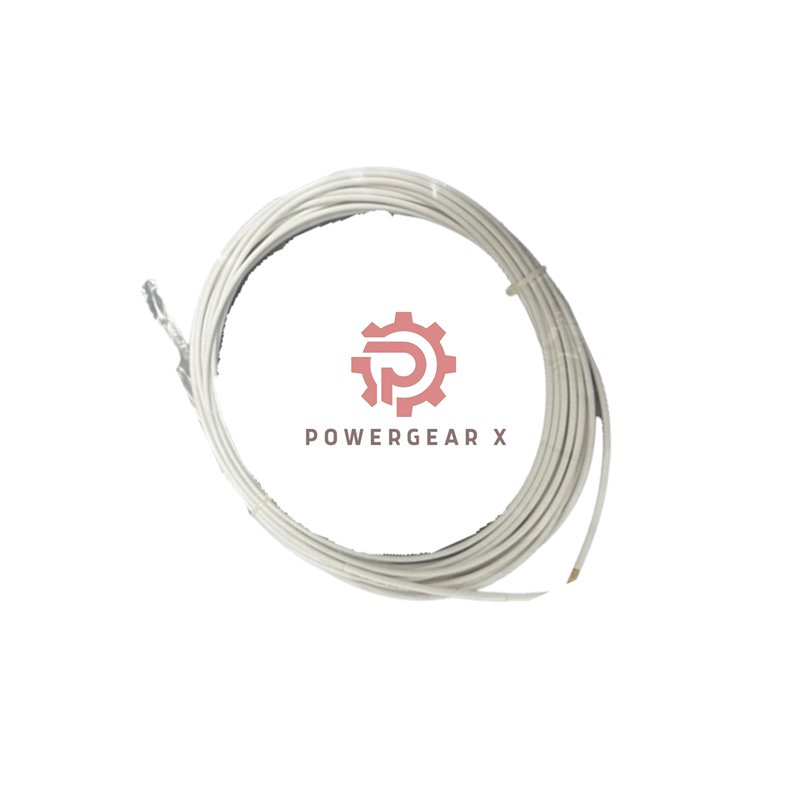

Meggitt (Vibro-Meter) 913-402-000-012/A1-E090-F0-G000 Proximity Measuring System
- Manufacturer: Meggitt (Vibro-Meter)
- Model: 913-402-000-012/A1-E090-F0-G000
- Type: Proximity Measuring System
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
- Weight: 0.22 kg
- Contact: sales@powergearx.com |
+86 18030005825
🔹 Configuration Code Tree
- 913-402-000-012 — Proximity Measuring System
- A1 — Environment: Standard
- E090 — Extension Cable: 9.0 m ±900 mm
- F0 — Optional Protection: None
- G000 — Flexible Hose: None
⚙️ Technical Specifications
- Temperature Range: −40°C to +180°C (operating), up to +220°C short-term
- Ex Zone Use: −40°C to +195°C
- Vibration: 5 g peak (10–500 Hz)
- Shock: 15 g (11 ms half sine-wave)
- Construction: 8 mm coil, Torlon tip, AISI 316L body
- Cable: 70 Ω coaxial FEP cable, Ø3.6 mm
- Protection Rating: IP68
- Mounting: 2 × M4 screws
- Frequency Response: DC to 20 kHz (−3 dB)
- Measurement Range: 2–4 mm
⭐ Key Advantages
- API 670 compliant design for industrial reliability
- Non-contact eddy-current sensing for precise vibration detection
- High resistance to temperature, moisture, and chemicals
- Compact stainless steel body for durability
- Compatible with VM600Mk2, VibroSmart®, and IQS900 systems
📈 Typical Applications
- Turbomachinery protection
- Shaft vibration and position monitoring
- Gap measurement in rotating machinery
- Condition monitoring in harsh industrial zones
- Oil & Gas and Power Generation systems
📦 Shipping & Warranty
- Ships worldwide via FedEx / UPS / DHL
- Factory tested and quality certified before shipment
- 12-Month Warranty against manufacturing defects
❓ Professional FAQ
- Q1: Can this system work in extreme heat?
A1: Yes, it operates up to +180°C and can survive +220°C short-term. - Q2: Is the cable replaceable?
A2: It comes with a fixed FEP coaxial cable, extensions available. - Q3: Does it support non-Meggitt systems?
A3: Yes, it’s API 670 compliant and works with many standard monitors. - Q4: How long does it last?
A4: Typically over 5 years with correct installation and environment. - Q5: Is it resistant to oil or chemicals?
A5: Yes, the FEP sheath and stainless-steel housing provide strong protection.
