Product details

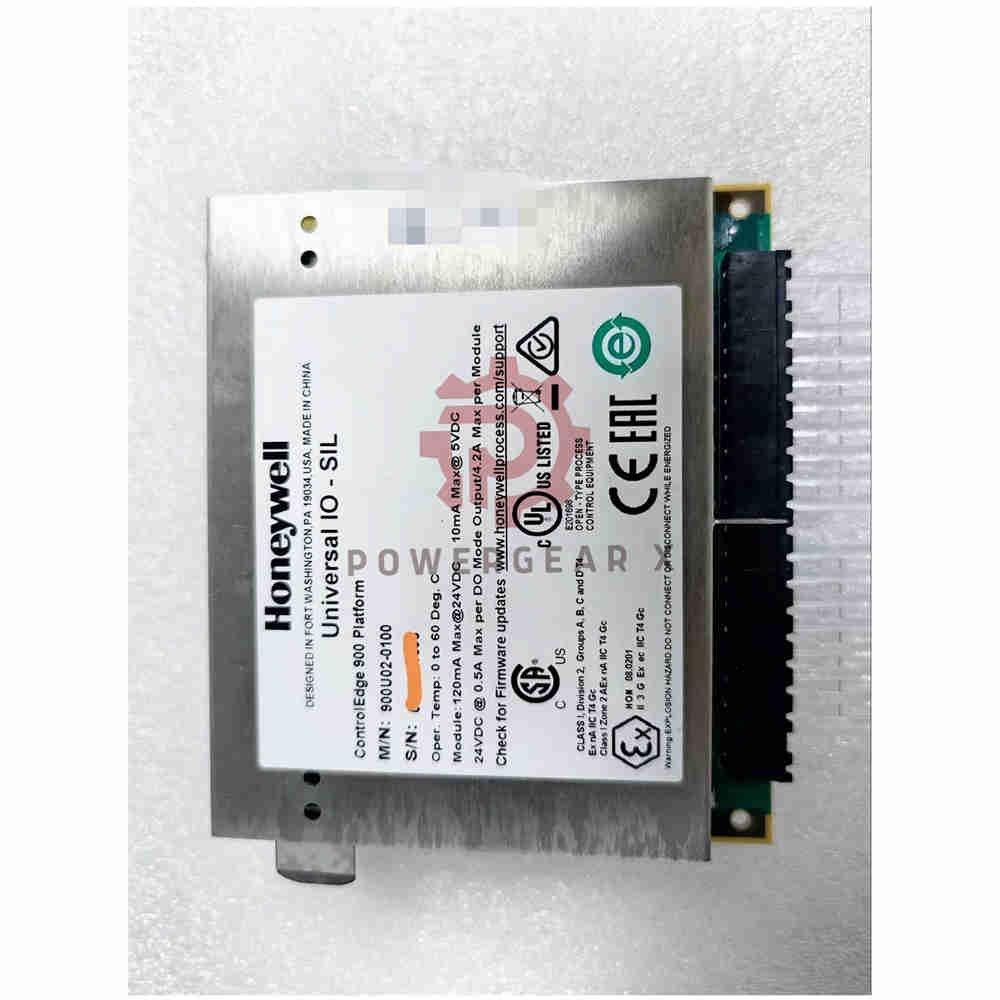

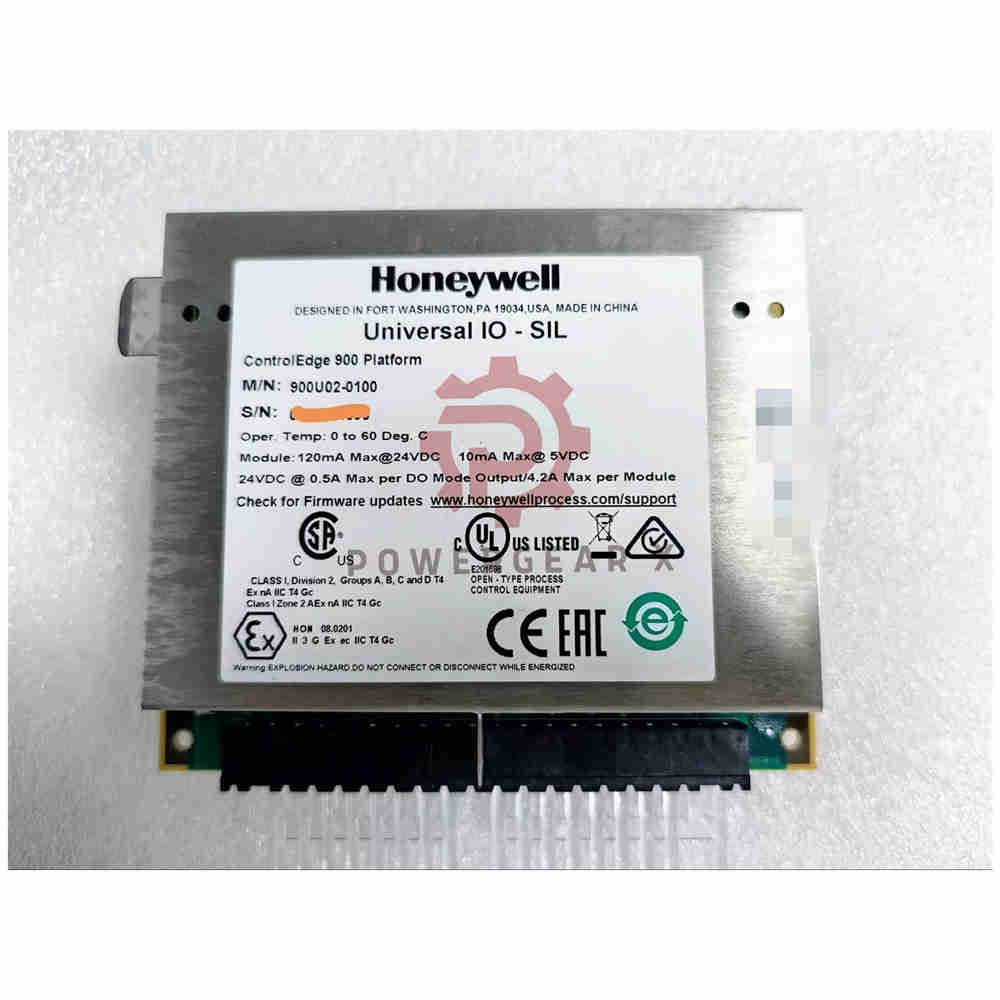

Advanced Safety I/O – Honeywell 900U02-0100 Universal Module
- Honeywell 900U02-0100 provides flexible input and output control.
- Supports analog input and output in one unit.
- High channel density improves efficiency.
- Designed for safety control systems.
- Supports HART communication.
System Capability
- Up to 16 channels in standard mode
- Up to 14 channels in redundant mode
- Fast update rate: 10 ms
- Strong isolation protects system
Technical Specifications
- Brand: Honeywell
- Model: 900U02-0100
- Type: Universal I/O Module
- Field Voltage: 24V DC typical
- Voltage Range: 22–27V DC
- Max Load: 4.2 A per module
- Channel Load: 500 mA
- Isolation: 1.5 kVDC
- Protection: Electronic short circuit per channel
- Fuse: Internal type
- Update Time: 10 ms
- EMC: High resistance to noise
Analog Input
- Supports 2, 3, 4 wire transmitters
- Input range: 4–20 mA
- 16-bit high resolution
- Accuracy: 0.1% full scale
- Input impedance: 250 Ω
- Max voltage: 30V
- Filter: 1 kHz low-pass
Analog Output
- Output: 4–20 mA
- Up to 8 channels
- Resolution: 12-bit
- Low ripple output signal
- Accuracy: <0.5%
- Max load: 750 Ohms
- Min load: 250 Ohms
Configuration Breakdown
- 900U02-0100
- ├─ 900U02
- Universal I/O series
- Mixed signal support
- └─ 0100
- Standard version
- No extra hardware options
Installation & Use
- Mount on control rack
- Use stable 24V DC power
- Ensure correct grounding
- Check wiring before startup
Applications
- Process control systems
- Oil and gas industry
- Power plant systems
- Safety automation
- Industrial monitoring
Packing & Warranty
- 1 × 900U02-0100
- Original packaging
- 12-month warranty
Shipping
- FedEx delivery
- UPS shipping
- DHL express
FAQ
- How to select correct channel mode?
- Choose based on system safety level and redundancy need.
- Does this module support smart transmitters?
- Yes. It supports HART devices.
- What is a common installation mistake?
- Poor grounding often causes unstable signals.
- How to improve signal accuracy?
- Use quality cables and avoid interference.
- What should I confirm before buying?
- Check voltage, channels, and system compatibility.
