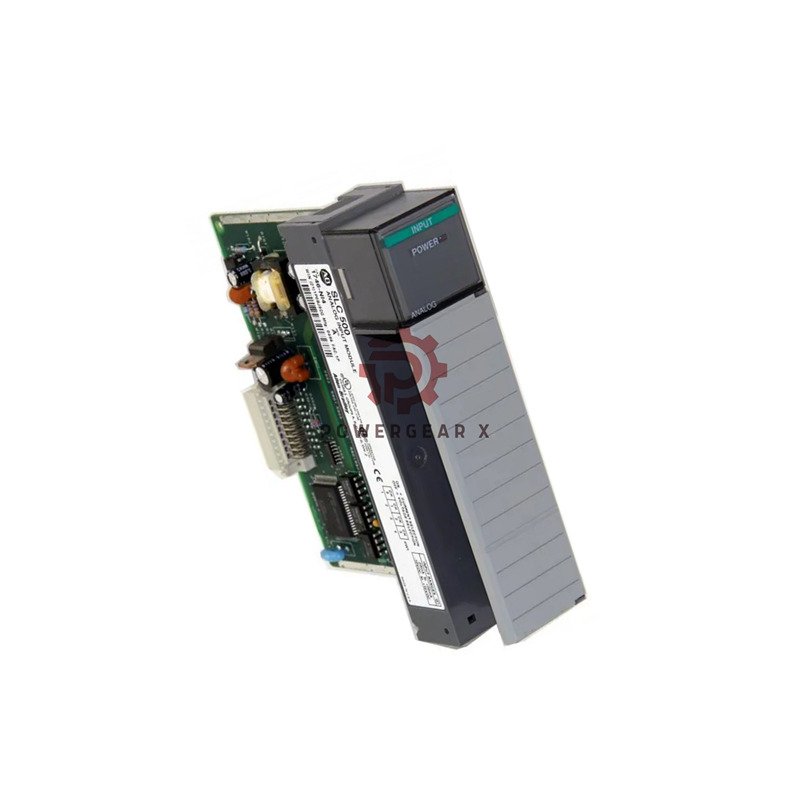

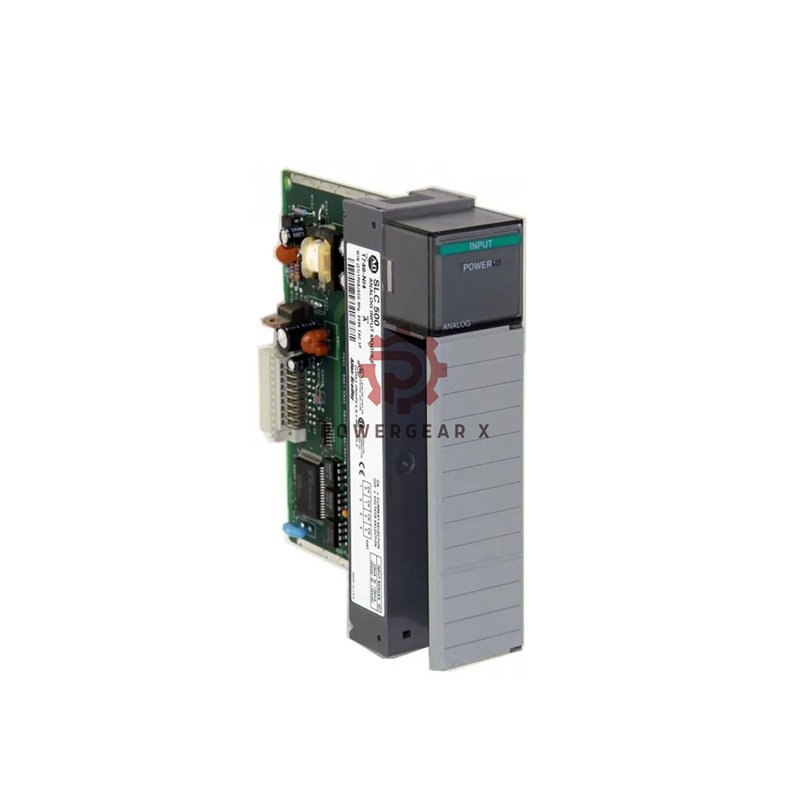

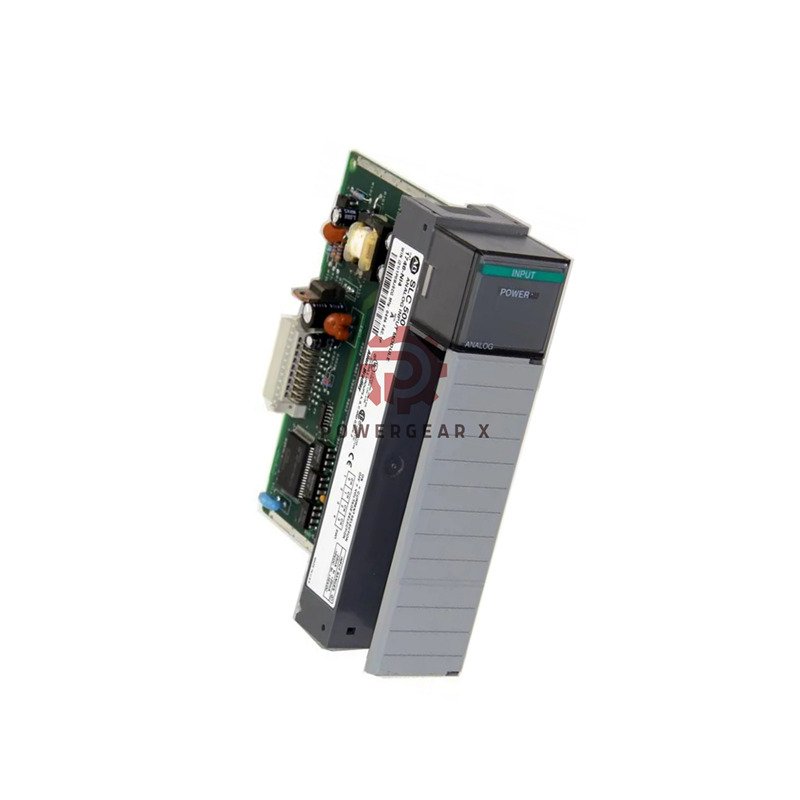

Allen-Bradley 1746-NO8V SLC 500 Analog Output Module | Premium Precision Control
Product Overview
The 1746-NO8V analog output module delivers exceptional performance. It offers eight voltage output channels. This module works with SLC 500 control systems. It provides precise control for industrial applications. Perfect for valve control and VFD operation.
Detailed Technical Specifications
- Brand: Allen-Bradley/Rockwell Automation
- Model: 1746-NO8V
- Series: SLC 500
- Type: Analog Voltage Output Module
- Output Channels: 8 single-ended
- Output Ranges: ±10.25V, ±10V, 0-10V, 0-5V, 1-5V
- Resolution: 16-bit (320μV/count)
- Accuracy: 0.1% @ 25°C, 0.2% @ 60°C
- 540μs for all 8 channels
- Step Response: 1ms (0-95% full scale)
- Load Impedance: >1kΩ minimum
- Max Load Current: 10mA per channel
- Output Impedance: <1Ω
- Overrange Capability: 2.5% (±10.25V)
- Backplane Current: 120mA @ 5V, 160mA @ 24V
- Power Consumption: 5.6W maximum
- Isolation Voltage: 500V DC tested
- Operating Temperature: 0 to 60°C
- Relative Humidity: 5-95% non-condensing
- Vibration Immunity: 5G @ 10-500Hz
- Shock Immunity: 30G operational
- Certifications: cULus, CE, Class I Div 2
