Product details

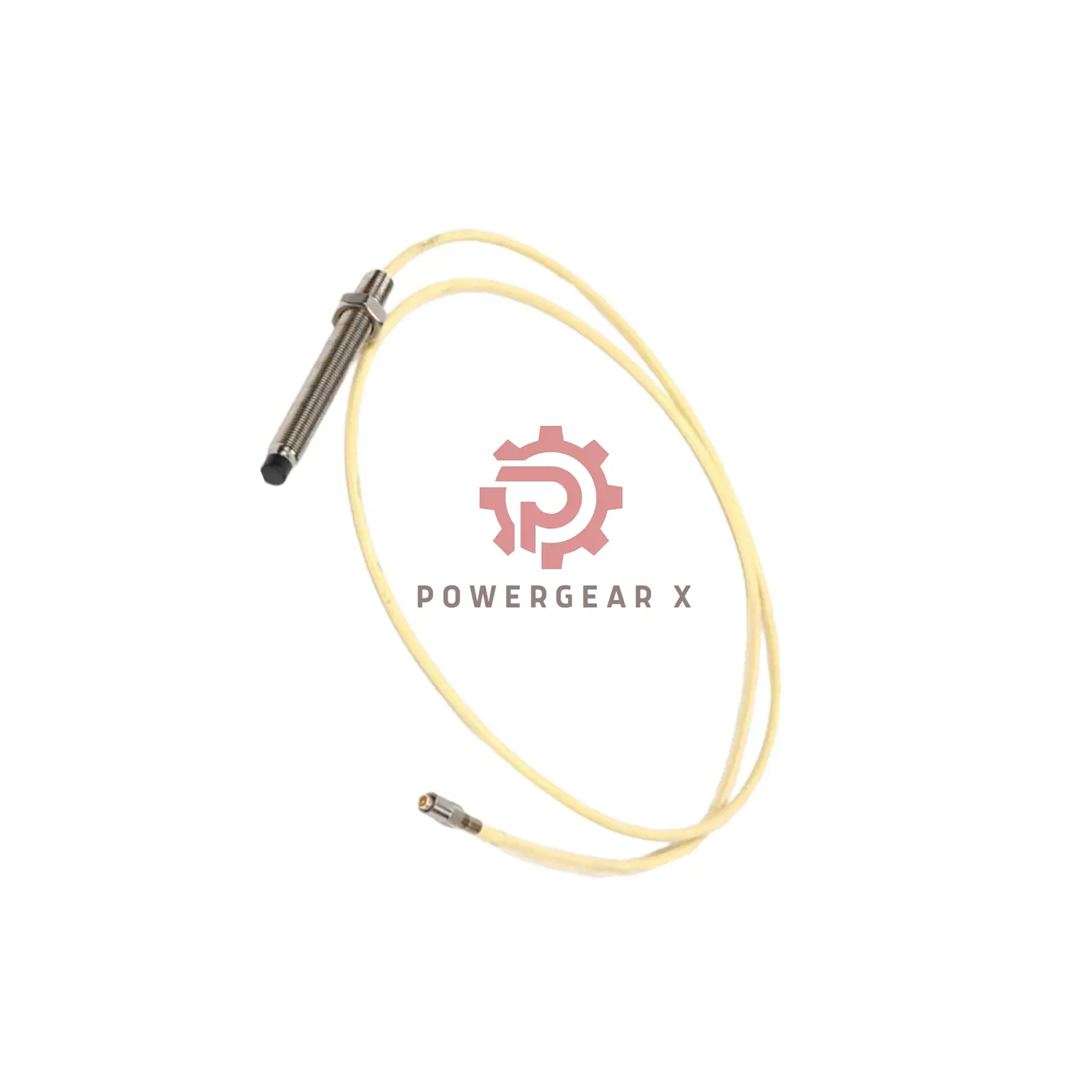

Industrial Vibration Monitoring System
Core Specifications
| Model | 21504-00-40-05-02 |
| Range | 0.25-2.0mm (10-80 mils) |
| Accuracy | ±0.02mm (±0.8 mils) |
| Output | 200mV/mil ±4% |
| Frequency | 0-10kHz (-5% @10kHz) |
Mechanical Profile
- Housing: 101.6mm (4″) stainless steel
- Mounting: 3/8-24 UNF thread
- Cable: 0.5m (+5/-2″) coaxial
- Tip: 8mm DMF-resistant
Environmental Performance
- Temp Range
- -34°C to +177°C
- Chemical Resistance
- H2SO4(10%), MEK, NH4OH
- Protection
- IP67 submersible
- Humidity
- ≤95% non-condensing
Heavy Industry Use Cases
- Oil pipeline compressor monitoring
- Mining conveyor belt safety systems
- Nuclear reactor coolant pumps
- Marine turbine vibration analysis
Configuration Guide
21504-[00]-[40]-[05]-[02]
• 00: 0mm unthreaded
• 40: 4″ (101.6mm) case
• 05: 20″ cable (±5″)
• 02: MIL-C-39012 connector
