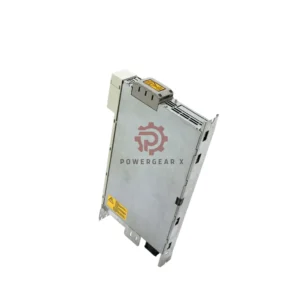

6SE7016-1EA61-Z | Siemens Masterdrives Drive

6SE7016-1EA61-Z Vector Drive | Siemens Masterdrives MC

Precision Power for Demanding Motors

The Siemens 6SE7016-1EA61-Z delivers 2.2kW vector control for industrial applications. Handles 380-480V systems with 6.1A output. Compact design saves panel space while delivering robust performance.

Key Advantages

• High-torque vector control for precise motor management
• Wide voltage range (380-480VAC, 50/60Hz)
• Powerful 6.1A output (2.2kW rating)
• Space-efficient design for crowded control cabinets
• Industrial-grade protection (IP20 enclosure)

Technical Specifications

• Brand: Siemens
• Model: 6SE7016-1EA61-Z
• Type: Vector Control Converter
• Input Voltage: 3-phase 380-480VAC ±10%
• Output Current: 6.1A continuous
• Power Rating: 2.2kW at 400V
• Frequency: 50/60Hz automatic adjustment
• Protection: IP20 (indoor use)
• Cooling: Natural convection
• Communication: Standard terminal connections
• Warranty: 12 months replacement
• Shipping: FedEx, UPS, DHL (3-5 business days)

Expert FAQs

• Q: What’s the overload capacity?
  A: 150% for 60 seconds, 200% for 3 seconds
• Q: Does it support encoder feedback?
  A: Yes, for closed-loop vector control
• Q: Minimum wire size for power connections?
  A: 2.5mm² (14AWG) for main power
• Q: Can I parallel multiple units?
  A: No, each drive operates independently
• Q: Altitude limitations?
  A: Full rating up to 1000m (3280ft)
