Product details

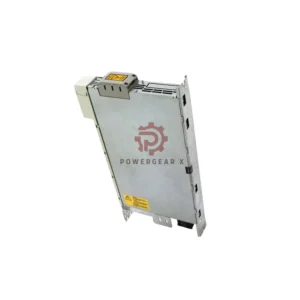

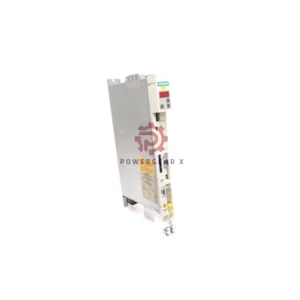

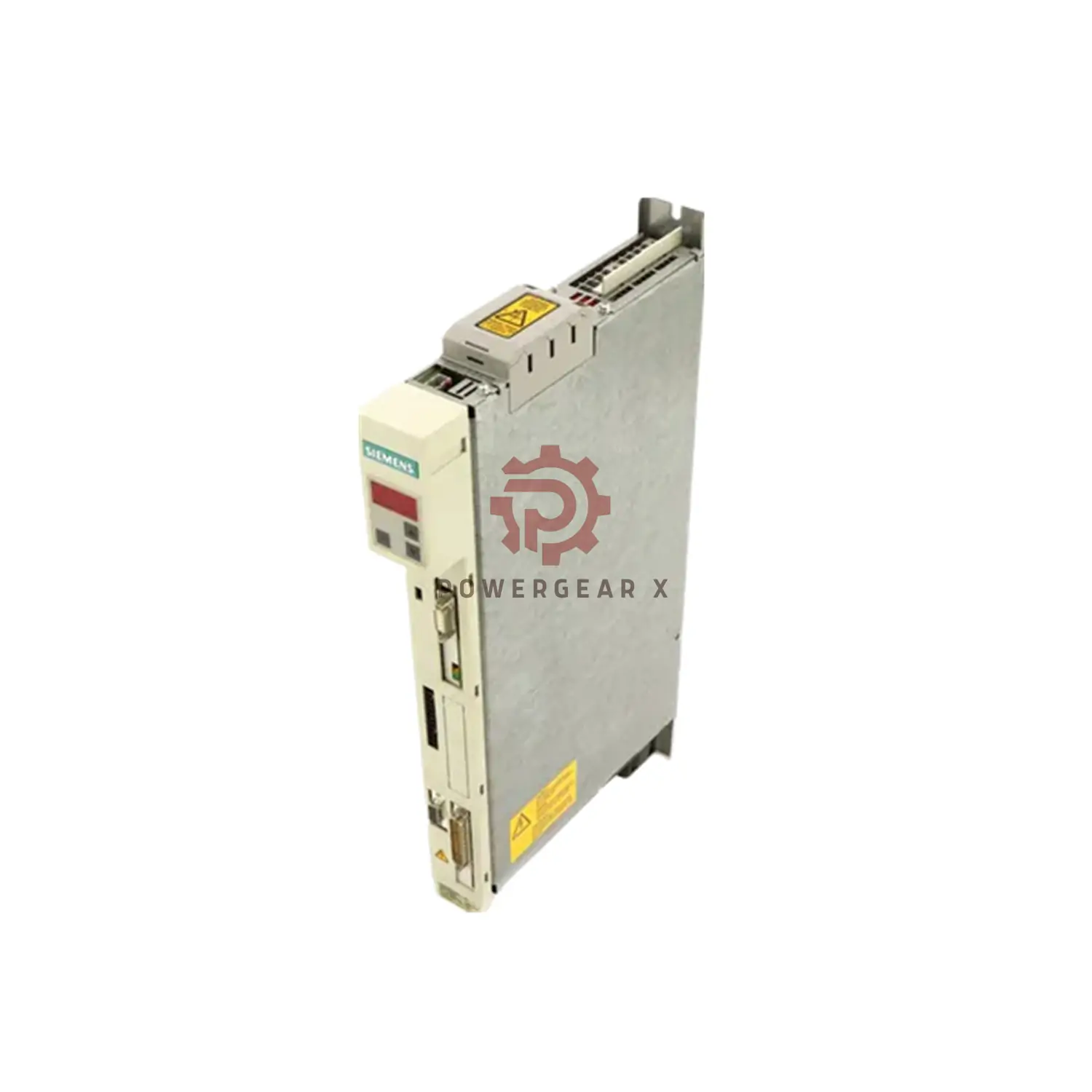

SIMOVERT MASTERDRIVES 2.2kW Compact Converter – Industrial AC Drive Solution
🔧 Product Overview
This Siemens compact converter delivers precision motion control for industrial applications. Designed for 3-phase systems with 2.2kW output, it features 380-480V AC input and includes complete documentation CD.
📊 Technical Specifications
| Brand | Siemens |
| Model Number | 6SE7016-1EA51-Z |
| Input Voltage | 3-phase 380-480V AC |
| Output Current | 6.1A |
| Frequency Range | 0-650 Hz |
| Control Accuracy | ±0.01% speed regulation |
| Operating Temp | -10°C to +50°C |
| Communication | PROFIBUS DP optional |
| Dimensions (HxWxD) | 35.6 x 10.2 x 43.2 cm |
🆚 Model Comparison
| Feature | This Model (6SE7016-1EA51-Z) | 6SE7014-0TP70-Z | 6SE7015-0EP70-Z |
| Power Rating | 2.2 kW | 1.5 kW | 3.0 kW |
| Input Voltage | 3AC 380-480V | DC 510-650V | 3AC 380-480V |
| Output Current | 6.1A | 4A | 8A |
| Dimensions | 35.6×10.2×43.2cm | 18.5×18.5×15.0cm | 42.5×20.0x38.0cm |
| Cooling Method | Forced air | Convection | Forced air |
⚙️ Performance Features
- Vector control for precise torque regulation
- Built-in brake chopper (optional external resistor)
- 150% overload capacity for 60 seconds
- EMC compliant for industrial environments
🔍 Industry Applications
- Pump and fan control systems
- Material handling conveyors
- Plastic extrusion machinery
- Food processing equipment
❓ Frequently Asked Questions
Q: What communication protocols are supported?
A: Supports PROFIBUS DP via optional adapter
Q: Can this drive operate at high altitudes?
A: Yes, derating required above 1000m
Q: Is dynamic braking included?
A: Built-in brake chopper, resistor sold separately
Q: What cooling method is required?
A: Forced air cooling with minimum 1m/s airflow
Critical Installation Notes
- Maintain 100mm clearance on ventilation sides
- Ground using 10mm² cable minimum
- Use RFI filter for sensitive environments
- Verify line voltage before power-up
📦 Shipping & Warranty
Global delivery via FedEx | UPS | DHL
12-month warranty – documentation CD included
