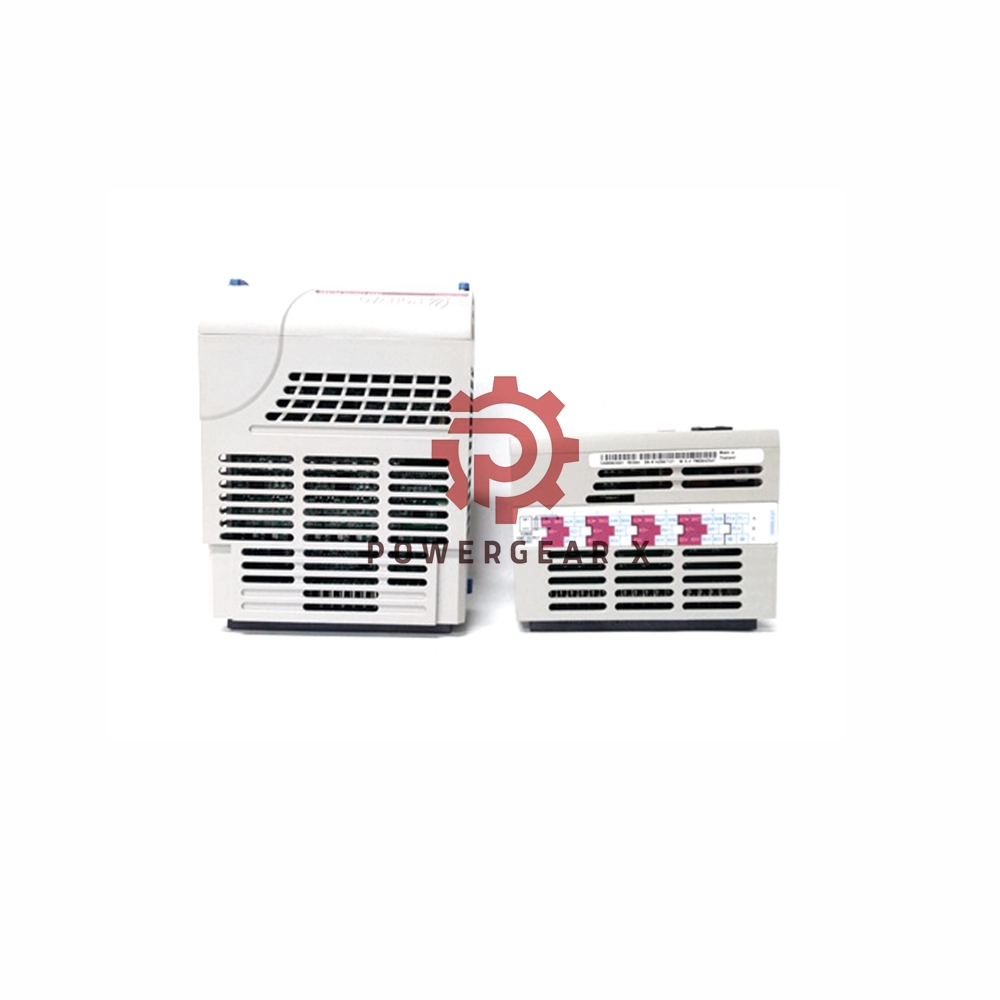

5X00062G01 Ovation HART 8-Channel Analog Output Module

Overview:

5X00062G01 Ovation HART 8-Channel Analog Output Module 4-20 mA Output Module is designed to provide precise analog output for a wide range of industrial automation applications. It features a 14-bit resolution with an update rate of 24 ms per channel, ensuring fast and accurate data transmission. Ideal for control systems, process monitoring, and instrumentation, this module delivers reliable performance in harsh environments.

Technical Specifications:

• Brand/Model: Emerson Ovation
• Model Number: 5X00062G01
• Channels: 8 independent 4-20 mA output channels.
• Channel Update Rate: 24 ms (Typical 14-bit resolution).
• Output Range: 4 to 20 mA.
• D/A Resolution: 14 bits.
• Accuracy: ±0.25% of Span over the full temperature range.
• Diagnostics: Open loop feedback detection with Pass/Fail status stored in data register 0xC.
• Dielectric Isolation: Channel-to-Logic = 1000 VAC/VDC (for 1 minute).
• Output Loading: Maximum 700 ohms, minimum 230 ohms, maximum 600 ohms.
• Output Compliance: 20 mA at 21.6 VDC supply into a 700-ohm load.
• Operating Temperature: 0° to 60°C.
• Humidity: 0% to 95% (non-condensing).
• Module Power:
  • Main: 24 VDC, 1.2 W typical, 2.5 W maximum.
  • Auxiliary: 24 VDC (-5%, +6.25%), 6 W typical, 7.2 W maximum.
