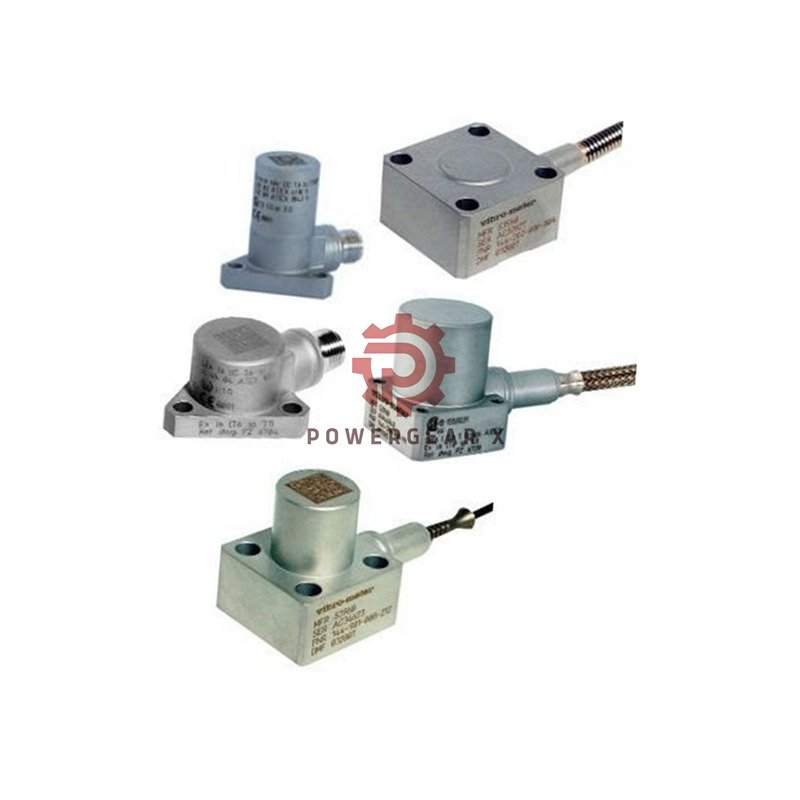

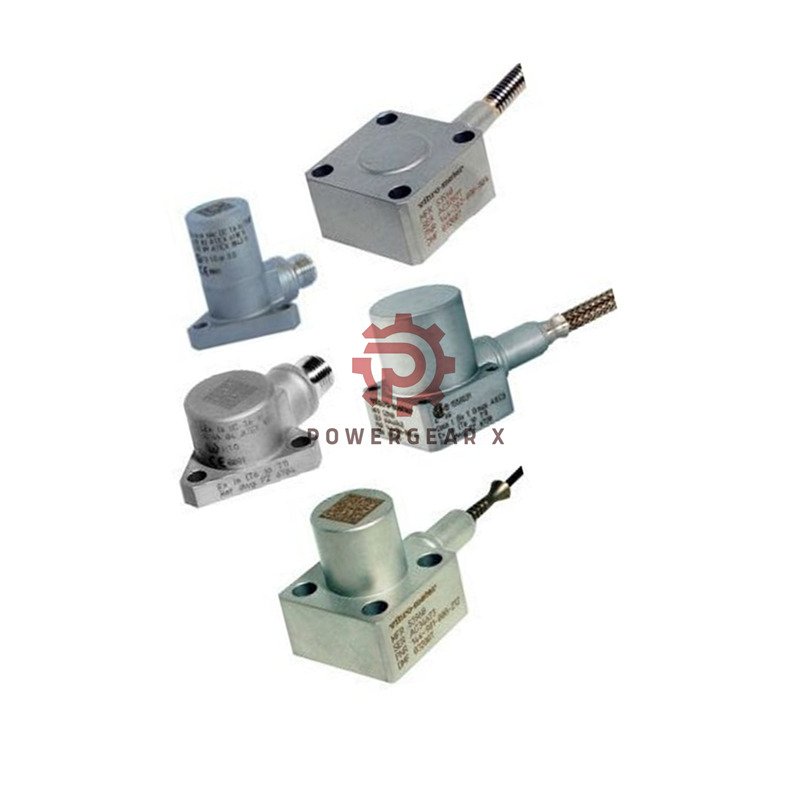

444-311-000-023 Meggitt CE311 Accelerometer 6m Cable – Industrial Vibration Sensor

Meggitt CE311 – Robust Vibration Sensor for Tough Conditions

The Meggitt CE311 accelerometer delivers reliable vibration monitoring. It features built-in electronics and excellent environmental protection. This CE311 model comes with a longer 6-meter integral cable.

• Brand: Meggitt Vibro-meter
• Model: CE311 with 6m cable
• Key Advantage: No external charge amplifier needed
• Ideal For: Harsh industrial and hazardous areas

Performance Specifications

• Output Signal: 4-20 mA current loop
• Voltage Range: 15-28 VDC operating
• Current Draw: 5.5-7.5 mA standby
• Accuracy: ±1% linearity across range
• Response Flatness: ±0.5 dB typical
• Phase Response: Linear within ±2°
• Ground Isolation: > 100 MΩ at 500 VDC

Advanced Technical Data

• Dielectric Strength: 500 VAC, 60 seconds
• Insulation Resistance: > 1000 MΩ at 500 VDC
• Zero Shift vs Temperature: < ±2% FSO
• Warm-up Time: < 2 seconds to rated performance
• Long-term Stability: < ±2% per year
• MTBF: > 100,000 hours

Installation Specifications

• Mounting Pattern: 25.4 mm × 25.4 mm (1″ × 1″)
• Thread Engagement: Minimum 5 mm depth required
• Surface Flatness: < 0.01 mm for optimal performance
• Isolation Mounting: Available upon request
• Cable Bend Radius: Minimum 25 mm

Ordering & Shipping

• Manufacturer Part: 444-311-000-023
• Warranty Coverage: 12 months comprehensive
• Lead Time: 2-4 weeks standard
• Shipping Methods: FedEx, UPS, DHL express
• Product Configuration:
  • CE311 Platform
    • Standard Version
      • Cable length: 6 meters
      • Connector: Flying leads
    • Explosion-proof Version
      • ATEX certification available
      • IECEx compliant options

Technical Support FAQ

What cable length comes with this model?

• This version includes a 6-meter integral cable.

Can it operate in wet environments?

• Yes, the hermetic seal protects against water and steam.

What is the transverse sensitivity specification?

• It maintains less than 3% transverse sensitivity.

Does it require special mounting considerations?

• Use four M6 bolts with 15 N•m torque for proper installation.

What is the short-term temperature survival range?

• It can survive -55°C to 150°C for up to 15 minutes.
