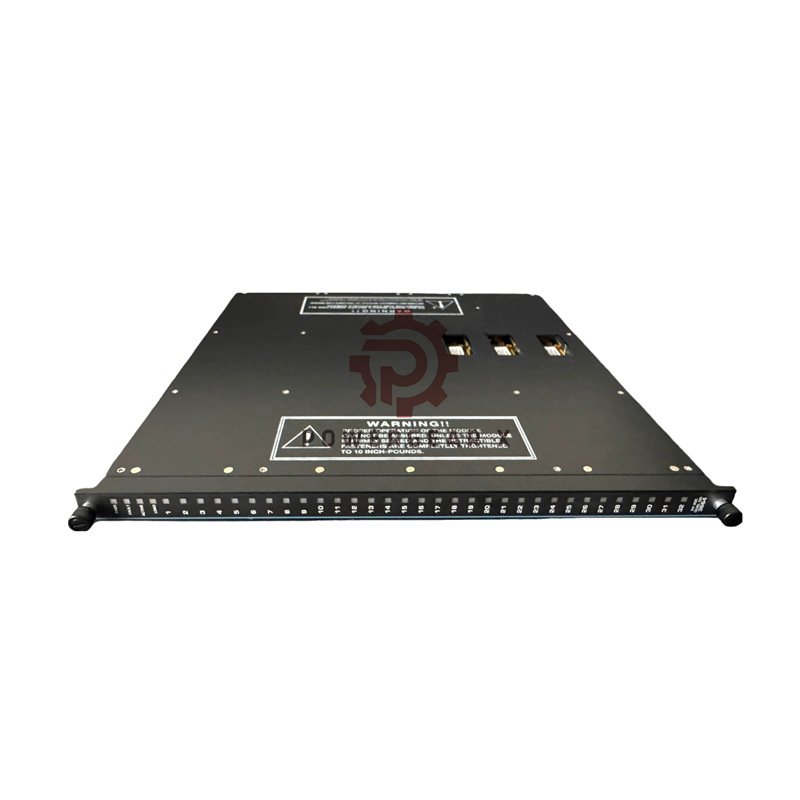

Triconex 3664 Dual Digital Output Module – Reliable Control Solution
The Triconex 3664 Dual Digital Output Module provides safe and reliable control for critical industrial applications. This smart module uses advanced 2-out-of-3 voting technology to ensure maximum safety. It continuously monitors itself for faults and alerts operators immediately if problems occur. The hot-spare capability allows for easy maintenance without system shutdown.
Technical Specifications
- Manufacturer: Triconex | Model: 3664
- Product Type: Dual Digital Output Module
- Nominal Voltage: 24 VDC operating power
- Voltage Range: 16-30 VDC for flexible operation
- Maximum Voltage: 36 VDC absolute maximum
- Output Signals: 32 points with common connection
- Current Capacity: 2A per point continuous rating
- Surge Protection: 10A for 10ms surge handling
- Power Consumption: Less than 10 watts total load
- Voltage Drop: Under 1.5 VDC typical loss
- Isolation Rating: 1500 VDC minimum point isolation
- Leakage Current: Maximum 2 mA load leakage
- Module Color: Dark blue for easy identification
- Operating Temperature: -40°C to +70°C range
- Humidity Tolerance: 5% to 95% non-condensing
- Vibration Resistance: 2g from 10-500 Hz operational
Diagnostic Indicators & Alarms
- Point Status – ON/OFF state for each output point
- Module Health – PASS, FAULT, ACTIVE status indicators
- Field Alarms – LOAD/FUSE condition monitoring
- Stuck-ON Detection – Identifies failed-ON output points
- Stuck-OFF Detection – Identifies failed-OFF output points
- Chassis Alarm – Activates system-wide alert signals
Warranty & Shipping
- 12-month warranty
- Global shipping via FedEx, UPS, DHL
- Express delivery options available
- Tracking provided for all orders
- Technical support included
Contact our technical team at sales@powergearx.com or +86 18030005825 for pricing and delivery information about the Triconex 3664 module.
