3500-94m-06-00-00 Bently Nevada VGA Display Module 15 inch Panel Mount

Display Module Overview

The Bently Nevada 3500/94M VGA Display Module (model 3500/94M-06-00-00) delivers clear machine condition data. It connects directly to the 3500 monitoring system. This unit is made in the U.S.A. and includes a 15-inch industrial display with panel mount hardware.

• Large 15″ screen: Shows vibration, position, and temperature values clearly.
• Touch interface: Resistive screen for easy navigation.
• Rugged design: Monitor works in -20°C to +65°C environments.
• 12-month warranty against defects.

Model & Suffix Tree

• 3500-94m – Main VGA Display Module
  • 06 – Display size: 15-inch, panel mount (installation hardware included).
  • 00 – No KVM extender or display router box cables.
  • 00 – Agency approval option: none (standard).
• Module weight: 1.07 kg (monitor + I/O).
• Power consumption: 4.6 watts max.

Technical Specifications

• Inputs/Outputs:
  • High-speed network port (monitor status).
  • RS232 port for touch controller data.
  • VGA port for analog video signals.
  • Front port: 24 Vdc power out, VGA out, touch in.
  • OK LED and TX/RX LED for status.
• Environmental limits:
  • Operating temp: -20°C to 65°C (-22°F to 149°F).
  • Storage temp: -40°C to 85°C (-40°F to 185°F).
  • Humidity: 95% non-condensing.
• Compliance: FCC Part 15, EMC (EN 61000-6-2/4), Safety (CSA, UL), RoHS.

Physical Characteristics

• Monitor module (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.5 x 0.96 x 9.52 in). Weight: 0.73 kg.
• I/O module (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.5 x 0.96 x 3.9 in). Weight: 0.34 kg.
• Rack space: Monitor uses 1 full-height front slot; I/O uses 1 full-height rear slot.
• 15″ Advantech Display (FPM-8151H):
  • Screen: 15″ diagonal LCD with LED backlight.
  • Industrial hardened, resistive touch.
  • Mounting: 19″ rack mount or panel mount.
  • Power: 24 Vdc (12-24 Vdc range), inrush 2.62 A.
  • Temp: 0°C to 60°C (32°F to 140°F).
  • IP65 front bezel, humidity 95% RH.
  • Approvals: CE, UL, Class I Div 2.
  • Dimensions: 422 x 338 x 68 mm; cutout 396 x 296 mm.
  • Shipping weight: 8.5 kg. Warranty: two years.

System Requirements

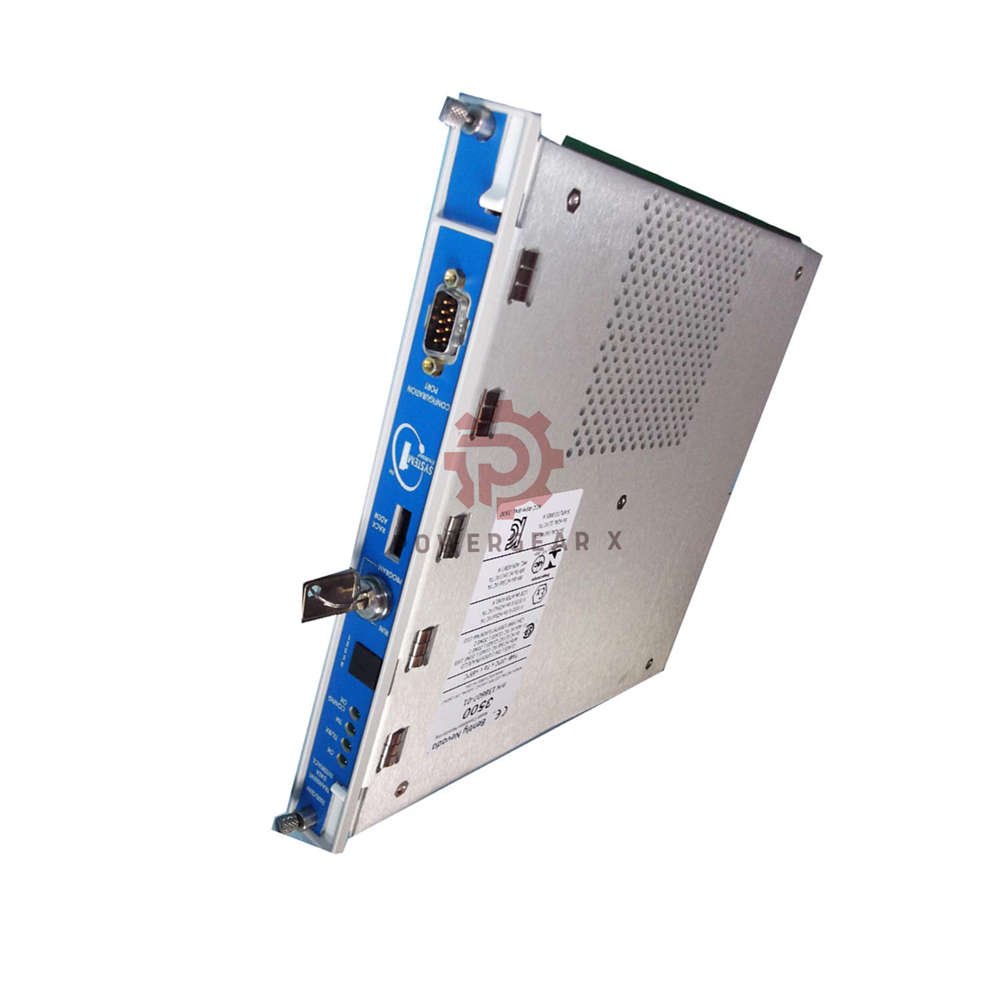

• Required hardware: 3500/22 Transient Data Interface (TDI) module.
• Minimum firmware/software:
  • 3500/94M Firmware: 4.06 Rev. C
  • 3500/22 TDI Firmware: Rev 1.71
  • 3500/01 Rack Config: Rev 5.6
  • 3500/02 Op Display: Rev 2.21
  • 3500/03 Data Acquisition: Rev 1.22

KVM Extender Details (Optional)

• Mounting: Shelf top.
• Power input: 12 Vdc and 5 Vdc.
• Temp range: 0ºC to 45ºC (32ºF to 113ºF).
• Humidity: 80% non-condensing.
• Hazardous area: Receiver is Class I, Div 2 approved. Transmitter must be in safe area.
• NEMA 4X: Not approved.

Package & Logistics

• Includes: One 3500-94m module (monitor + I/O), 15″ Advantech display, panel mount hardware, power supply.
• Warranty: 12 months from shipment.
• Shipping partners: FedEx, UPS, DHL – tracked and insured.
• Origin: Made in U.S.A.

Frequently Asked Questions (FAQ)

• What is the difference between suffix 04 and 06?Suffix 04 gives a 10″ independent-mount display with wide temp range and ATEX. Suffix 06 gives a larger 15″ panel-mount display with higher brightness but 0°C minimum temp.
• Can I use the 15″ display in cold environments?The 15″ Advantech screen requires temperatures above 0°C (32°F). Below that, you must use a heated enclosure.
• Does the 15″ display have hazardous area approvals?Yes, it is Class I, Div 2 approved. However it is not ATEX certified. For ATEX choose the 10″ display (suffix 04).
• What voltage does the 15″ display need?It accepts 12-24 Vdc (24 Vdc nominal). Inrush current is 2.62 A for <500 µs. Operating current is below 500 mA.
• Is the KVM extender required for operation?No. Suffix 00 means no KVM cables are included. The display works standalone with the 3500 monitoring system.

Selection Guide

• Choose suffix 06 for a large 15″ panel-mount display in control rooms (0°C to 60°C).
• If you need wide temperature range or ATEX, select suffix 04 (10″ display).
• Ensure your rack has a 3500/22 TDI module and updated firmware (see requirements).
• For panel mounting, the 15″ display includes hardware. Cutout dimensions: 396 mm x 296 mm.
