3500/94M-05-00-01 Bently Nevada 15 in VGA Display | Class I Div 2

🖥️ Product highlights

The Bently Nevada 3500/94M-05-00-01 is a 15″ VGA display module for the 3500 monitoring system. It provides clear, real-time machinery data in a 19″ rack mount format. CSA/NRTL/C approved for Class I, Division 2 areas. Seamlessly integrates with 3500/94M systems and TDI modules.

Need assistance? sales@powergearx.com or WhatsApp +86 18030005825.

🧩 Model breakdown – 3500/94M-05-00-01

• 3500/94M – VGA display module for 3500 monitoring system
• ⤷ 05 = 15″ display, 19″ rack mount (includes power supply)
• ⤷ 00 = no KVM extender / display router cables
• ⤷ 01 = CSA/NRTL/C (Class I, Division 2) approval

⚙️ Technical specifications

• Display
  15″ diagonal LCD · LED backlight · industrial hardened · resistive touch · Advantech FPM-8151H
• Power
  Max 4.6 W (module) · 24 Vdc supply included (accepts 12-24 Vdc) · inrush 2.62 A @ 24 V
• Temperature range
  Operating -20°C to 65°C (module) · Display 0°C to 60°C · storage -40°C to 85°C
• Humidity
  95% non-condensing (module) · 95% RH for display
• Dimensions (15″)
  422 x 338 x 68 mm · panel cutout 396 x 296 mm · shipping weight 8.5 kg
• I/O module
  1 full-height rear slot · VGA port · front port for touch · OK/TX/RX LEDs

📦 What’s included & shipping

• Package contains
  3500/94M monitor module · I/O module · 15″ Advantech display · 19″ rack mount kit · 24 Vdc power supply · quick start guide
• Warranty
  12 months against defects · full parts & labor coverage
• Shipping
  FedEx, UPS, DHL · fully insured · tracking provided worldwide

🔌 Compatibility & requirements

• Required hardware

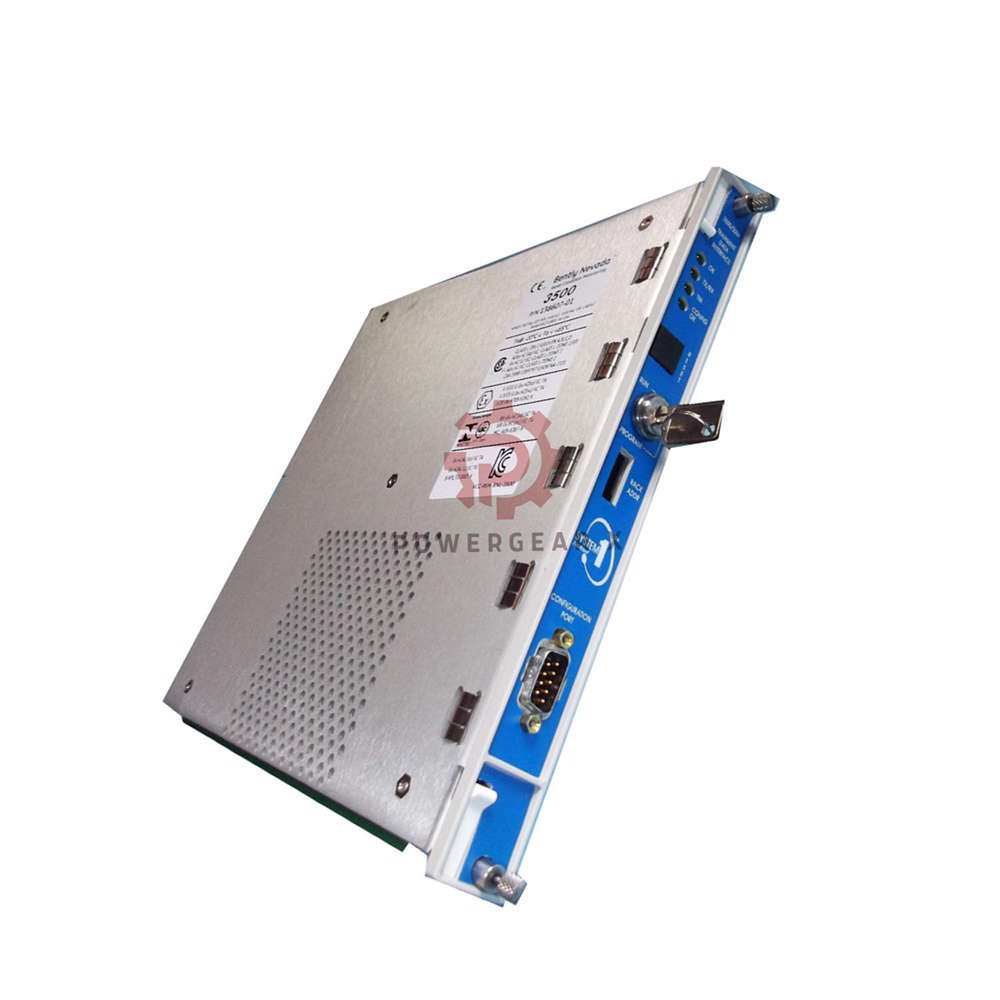

  3500/22 TDI (Transient Data Interface) module · 1 front slot + 1 rear slot in rack
• Firmware versions (minimum)
  94M: 4.06 Rev C · TDI: 1.71 · Rack Config 5.6 · Op Display 2.21 · Data Acq 1.22
• Rack space
  Monitor: 1 full-height front slot · I/O: 1 full-height rear slot

✅ Certifications & compliance

• Hazardous area
  Class I, Division 2 (CSA/NRTL/C) · CE, UL · IP65 front (display only)
• EMC & safety
  EN 61000-6-2/4 · CSA C22.2 61010-1 · UL EN 61010-1 · RoHS
• Protection
  Display IP65 rated · I/O module not NEMA 4X

🏭 Typical applications

• Where to use
  Turbine/generator monitoring · compressor control rooms · 19″ rack mount HMI for 3500 racks · hazardous locations (Div 2)
• Data displayed
  Real-time vibration · shaft position · trend data · system status via high-speed network

❓ Professional FAQ (real‑world experience)

• Q: What is the main difference between 3500/94M-05-00-01 and the 10″ version?
  A: The -05 uses a 15″ Advantech display in 19″ rack mount format. It gives more screen space but has a narrower operating temp range (0°C to 60°C) vs the 10″ version (-20°C to 65°C). Choose based on your control room environment.
• Q: Does this display work in cold environments below 0°C?
  A: The 15″ Advantech display requires a minimum 0°C operating temperature. Below that you need a heated enclosure. The 3500/94M module itself works down to -20°C, but the screen is the limiting part.
• Q: What does agency option 01 provide?
  A: Option 01 adds CSA/NRTL/C certification for Class I, Division 2 hazardous locations in North America. Required if the display is installed in a Div 2 area. The display itself is also rated Class 1, Div 2.
• Q: Can I mount this in a standard 19″ rack?
  A: Yes, the -05 includes 19″ rack mount hardware. It occupies vertical rack space, not the 3500 rack slots. The monitor module and I/O still need 1 front + 1 rear slot in the 3500 rack.
• Q: Is the touch screen compatible with gloved hands?
  A: Yes, it uses resistive touch technology. Works with industrial gloves. Not multi-touch, but very reliable in dirty environments.
