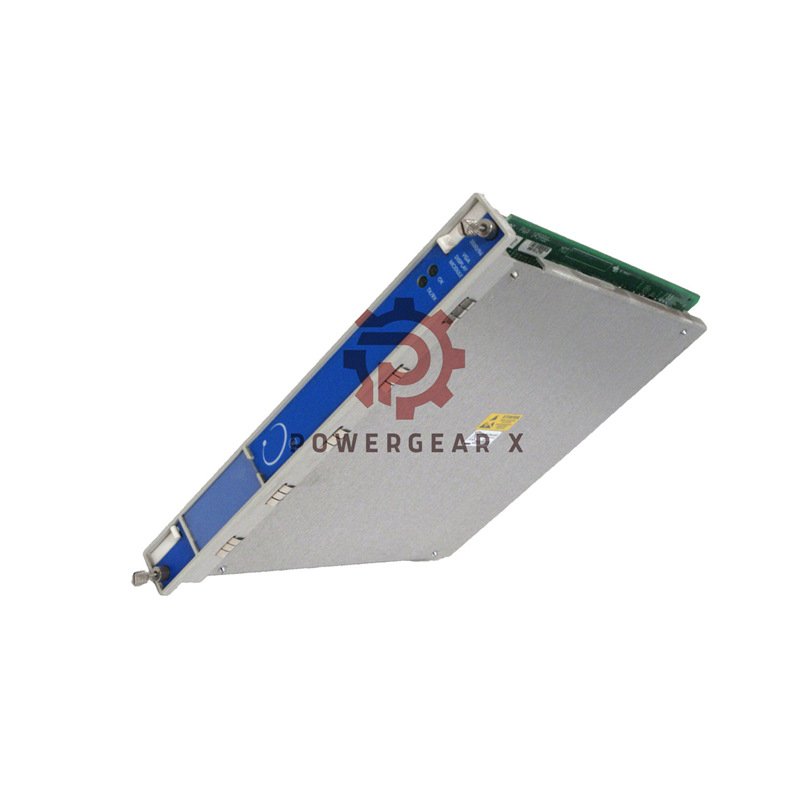

3500/94M-02-00-00 Bently Nevada VGA Display Module 10 in Rack

Product Overview

• Brand: Bently Nevada
• Model: 3500/94M-02-00-00
• Series: 3500/94M VGA Display Module
• Made in U.S.A

The 3500/94M provides dedicated VGA display for the 3500 protection rack.
It shows real-time system status and alarm data. It requires the 3500/22 Transient Data Interface module.

This unit delivers stable visual monitoring in harsh industrial sites.
It supports 10 inch and 15 inch industrial displays.
It fits standard 19 inch rack installations.

Configuration Breakdown

• 3500/94M-AA-BB-CC
  • AA – Display Size and Mounting
    • 02 = 10 inch display, 19 inch rack mount
  • BB – KVM Extender and Router Cables
    • 00 = None
  • CC – Agency Approval
    • 00 = None

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/94M-02-00-00
• Module Type: VGA Display Module
• Power Consumption: 4.6 W maximum
• Front Port Output: 24 Vdc power, VGA signal, touch input
• Communication: High-speed rack network
• RS232 Port: Touch controller data
• Status Indicators: OK LED, TX/RX LED
• Operating Temperature: -20°C to 65°C
• Storage Temperature: -40°C to 85°C
• Humidity: 95% non-condensing
• EMC Standards: EN 61000-6-2, EN 61000-6-4
• Electrical Safety: UL EN 61010-1, CSA C22.2 61010-1
• RoHS: 2011/65/EU compliant
• Module Dimensions: 241.3 x 24.4 x 241.8 mm
• Module Weight: 0.73 kg
• Total Shipping Weight: 1.07 kg

Display Options

• 10” Advantech ANA-D3510-100-A1
  • LCD with LED backlight
  • GFG resistive touch screen
  • IP54 protection
  • Class I Div 2 approved
  • Operating range: -20°C to 65°C
• 15” Advantech FPM-8151H
  • Industrial LCD panel
  • IP65 front protection
  • Resistive touch interface
  • Operating range: 0°C to 60°C

Core Advantages

• Real-time alarm and status display
• High noise immunity design
• Low power heat generation
• Industrial hardened construction
• Full compatibility with 3500 rack system

Compatibility Requirements

• Requires 3500/22 TDI module
• 3500/94M firmware 4.06 Rev C or newer
• 3500/22 firmware Rev 1.71 or newer
• Rack Config software Rev 5.6+
• Operator Display software Rev 2.21+

Installation Guide

• Install monitor module in one full-height front slot
• Install I/O module in one full-height rear slot
• Connect VGA cable securely
• Provide stable 24 Vdc supply
• Verify OK LED before system startup

Commissioning and Maintenance

• Front access simplifies inspection
• LED indicators support quick diagnostics
• No complex calibration required
• Low maintenance design

Typical Applications

• Steam turbine monitoring
• Gas turbine protection
• Compressor supervision
• Pump vibration systems
• Power generation plants

Diagnostic Capabilities

• Displays system health instantly
• Shows channel alarms clearly
• Indicates communication activity
• Supports operator touch control

Certifications

• FCC Part 15 compliant
• CE compliant
• UL certified
• CSA certified
• RoHS compliant

Packing List

• 1 x 3500/94M-02-00-00 module
• 1 x I/O module
• Installation manual
• Factory inspection report

Warranty and Shipping

• 12 Months Warranty
• New and original condition
• Delivery via FedEx, UPS, DHL
• Secure export packaging

FAQ

• Does the module work without TDI?

No. The system requires the 3500/22 TDI module.

• Which display should I choose?

Choose 10 inch for rack mount integration.
Choose 15 inch for larger viewing distance.

• What is a common installation issue?

Loose VGA connections may cause signal interruption.

• How to ensure long service life?

Keep stable voltage and control ambient temperature.

• Buying advice?

Confirm firmware version before purchase.
Check hazardous area requirements.
Verify rack slot availability.
