Product Introduction

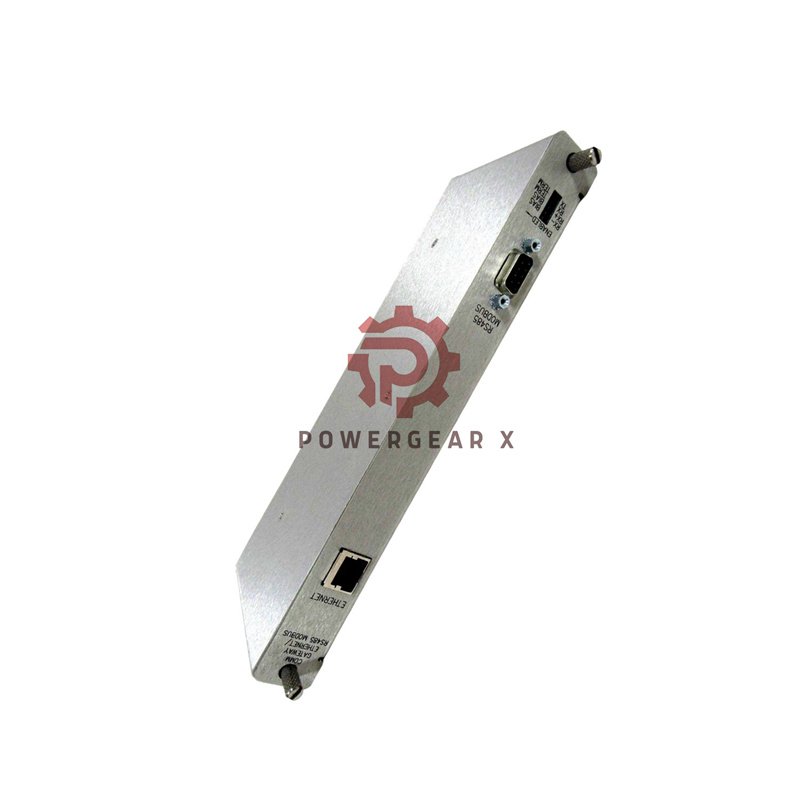

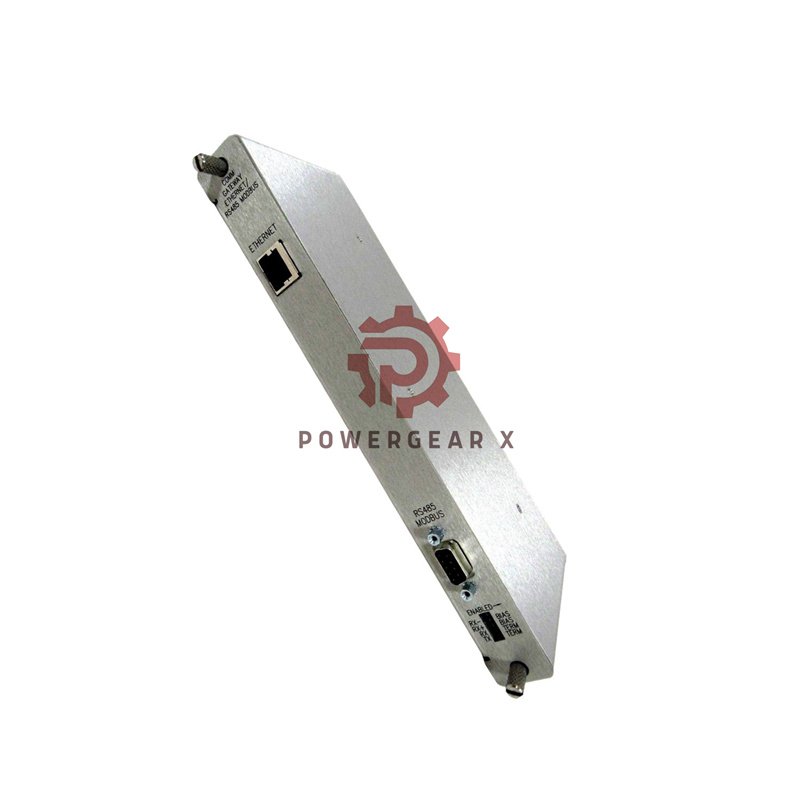

The Bently Nevada 3500/92-04-01-00 136188-02 Ethernet/RS485 Modbus I/O Module enables seamless industrial data communication. This module collects critical information from other 3500 series modules efficiently.
Core Features and Benefits
- Dual protocol support for Ethernet TCP/IP and Modbus RTU communication
- Rapid data collection with update times under 1 second for all modules
- Low power consumption of 5.0W to 5.6W for energy efficiency
- Robust industrial design for harsh environment operation
- Dual LED indicators for instant status monitoring and troubleshooting
- Compact form factor saves valuable rack space in control systems
Technical Specifications
- Brand: Bently Nevada | Model: 3500/92-04-01-00
- Power Consumption: 5.0W (RS232/RS422) to 5.6W (RS485)
- Data Update Rate: Maximum 1 second for complete rack scan
- Ethernet Speed: 10Mbps compliant with IEEE802.3 standards
- Operating Temperature: -30°C to +65°C wide range
- Storage Temperature: -40°C to +85°C for extreme conditions
- Humidity Rating: 95% non-condensing for damp environments
- Physical Dimensions: 241mm x 24.4mm x 99.1mm compact size
- Module Weight: 0.44kg lightweight design
- Rack Space: Requires 1 full-height rear slot for installation
- Connection Type: RJ-45 jack for standard Ethernet cabling
- Product Warranty: 12 months quality assurance guarantee
Model Number Breakdown
- Product Series: 3500/92 – I/O Communication Module
- Variant Code: 04-01-00 – Specific configuration details
- Additional ID: 136188-02 – Manufacturing reference number
Communication Protocols
- BNC Host Protocol for software configuration and data acquisition
- Modbus RTU transmission mode for industrial device networks
- Ethernet TCP/IP framework for modern connectivity needs
- Modbus/TCP protocol for seamless integration with SCADA systems
Installation and Setup
- Mount in single full-height rear slot of 3500 series rack
- Connect via standard RJ-45 Ethernet cable for communication
- Monitor OK LED for proper module operation status
- Watch TX/RX LED for active data transmission indicators
- No additional rack loading requirements for simple installation
Shipping and Delivery
- Package includes I/O module and necessary documentation
- Express shipping via FedEx, UPS, or DHL carriers available
- International delivery options for global customers
- Tracking numbers provided for all shipment types
Compliance Certifications
- FCC Part 15 rules compliance for electromagnetic compatibility
- EMC Directive 2014/30/EU for industrial environment immunity
- EN 61000-6-2 and EN 61000-6-4 standards for emissions control
- LV Directive 2014/35/EU for electrical safety requirements
- EN 61010-1 standard for electrical equipment safety
- RoHS Directive 2011/65/EU for environmental compliance
- DNV GL and ABS certifications for marine applications
Frequently Asked Questions
- What data types can this module collect from other modules?
It gathers measured values with timestamps, status information, and alarm data.
- How fast does the module update collected information?
The system updates all rack module data within one second maximum.
- What should I check if the TX/RX LED stops blinking?
Verify Ethernet cable connections and network configuration settings.
- Can this module operate in extreme temperature conditions?
Yes, it functions reliably from -30°C to +65°C operating range.
- What is the typical power requirement for this unit?
Power consumption ranges between 5.0 watts and 5.6 watts typically.
