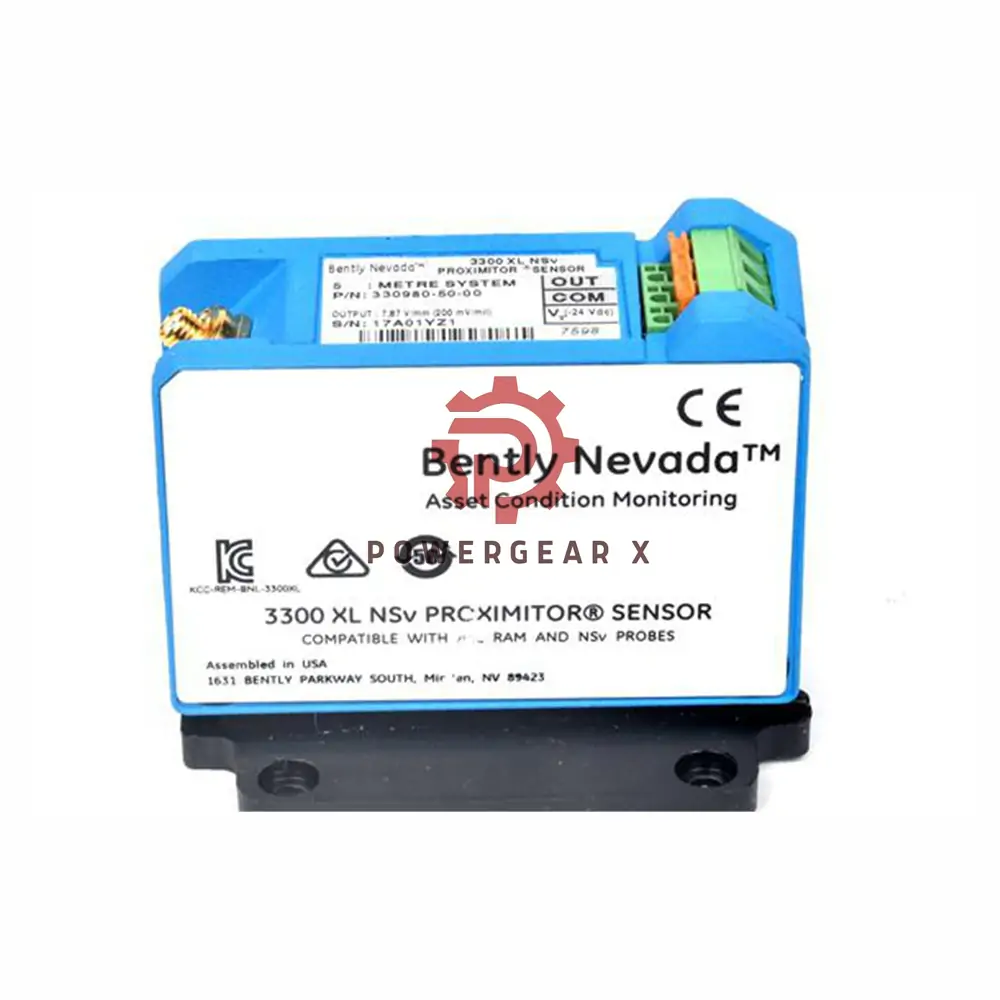

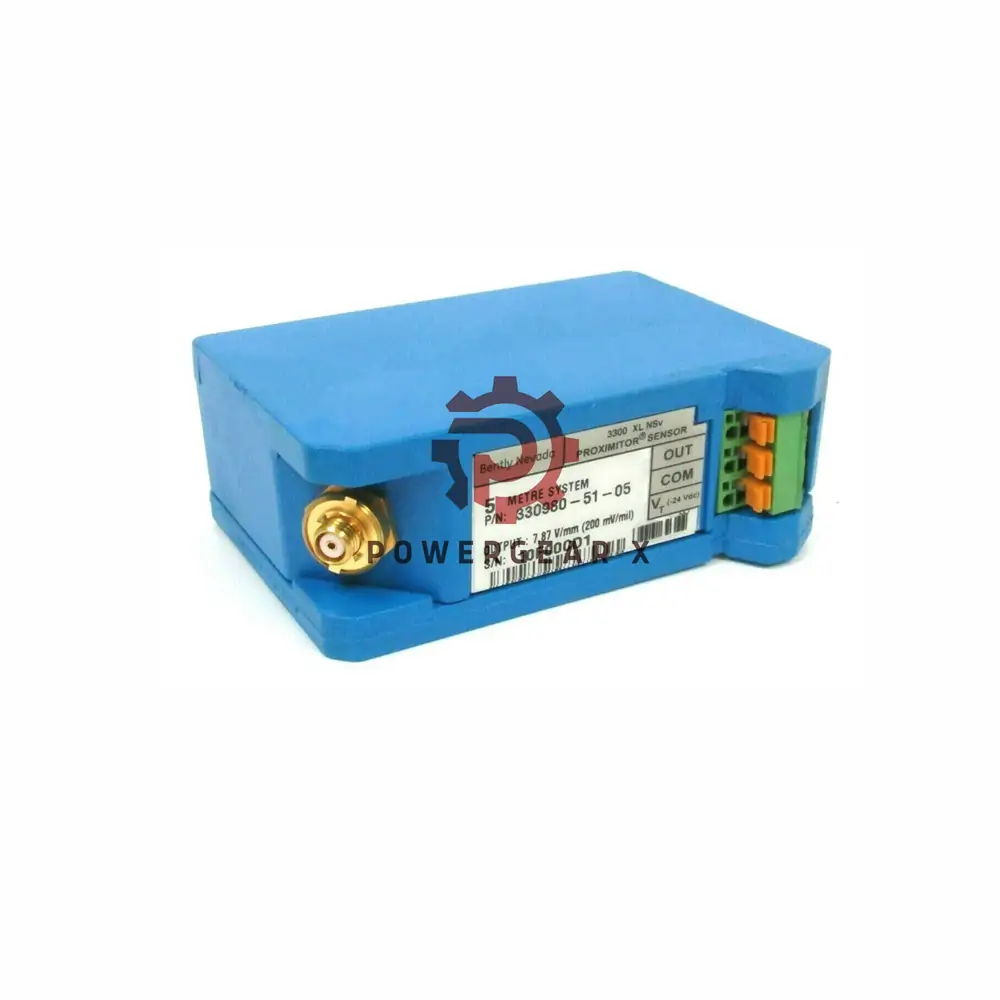

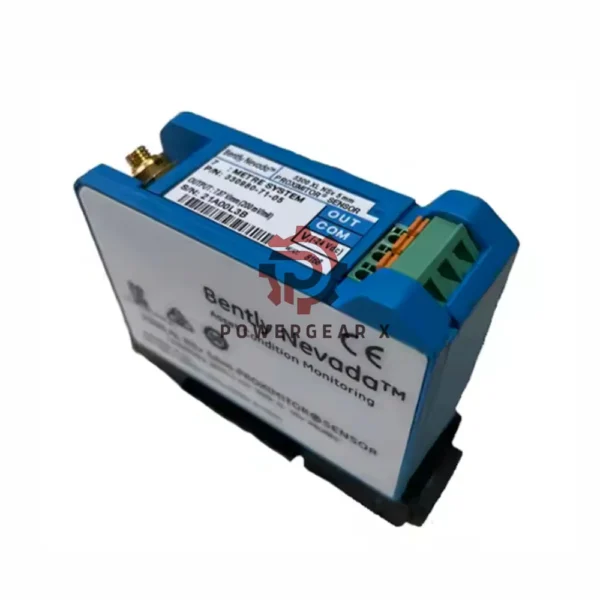

Bently Nevada 330980-72-00 NSv Proximitor Sensor

Product Summary

The 330980-72-00 is a 7.0-meter NSv Proximitor Sensor. It is used with NSv or RAM probes. It does not include any mounting hardware. No agency approvals are needed.

Key Specifications

• Cable Length: 7.0 meters (23.0 feet)
• Mounting: None included
• Material: A380 aluminum
• Weight: 255 g
• Input: Works with one NSv or RAM probe and cable
• Power: -17.5 Vdc to -26 Vdc (no barriers)
• Power with barriers: -23 Vdc to -26 Vdc
• Max Current: 12 mA
• Output Resistance: 50 ohms
• Sensitivity: Less than 2 mV per volt

Environmental Ratings

• Operating Temp: -52°C to +100°C
• Storage Temp: -52°C to +105°C
• Humidity: 100% condensing (not waterproof)

Model and Suffix Breakdown

• 330980: NSv Proximitor Sensor
• 72: 7.0-meter system length, no mount
• 00: No agency approval required

Testing Conditions

• Target: 31 mm AISI 4140 steel
• Gap: 1.0 mm
• Power Supply: -24 Vdc, 10 kΩ load
• Temp Range: 0°C to +45°C
• Max Altitude: 2000 m

Warranty

• 12 months factory warranty
