Industrial-Grade Vibration Sensor

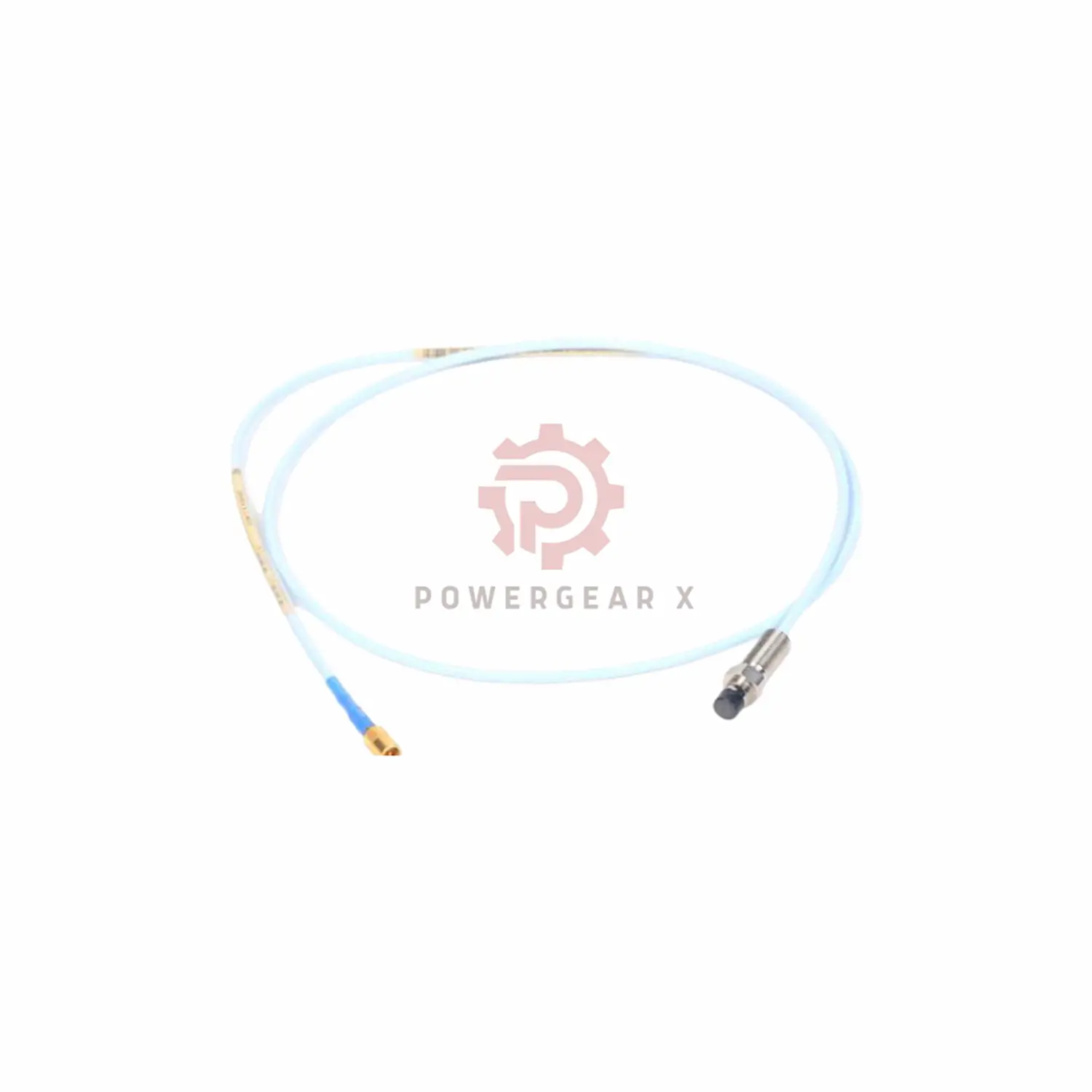

The Bently Nevada 330908-00-30-05-02-00 proximity probe features a 3.0″ stainless steel case with 0.004″ measurement resolution. Designed for heavy machinery, it maintains ±0.06mm repeatability across its full -52°C to +177°C operational range while resisting 25g RMS vibration.
Core Specifications
- Resonant Frequency: 28.5kHz ±3%
- Cable Velocity Factor: 0.82c
- Housing Hardness: 85 HRB
- Weight: 68g ±5g (2.4oz)
Model Configuration(330908-00-30-05-02-00)
| 330908 | Base sensor platform |
| 00 | Full thread engagement |
| 30 | 3.0″ (76.2mm) housing |
| 05 | 0.5m FEP cable |
| 02 | ClickLoc™ connector |
| 00 | No certifications |
Advanced Performance
- Shock Survival: 75g peak (11ms)
- EMI Shielding: 80dB @10MHz-2GHz
- Dielectric Strength: 1500VAC/min
- Cable Bend Radius: 25mm minimum
- Thermal Drift: 0.015%/°C
