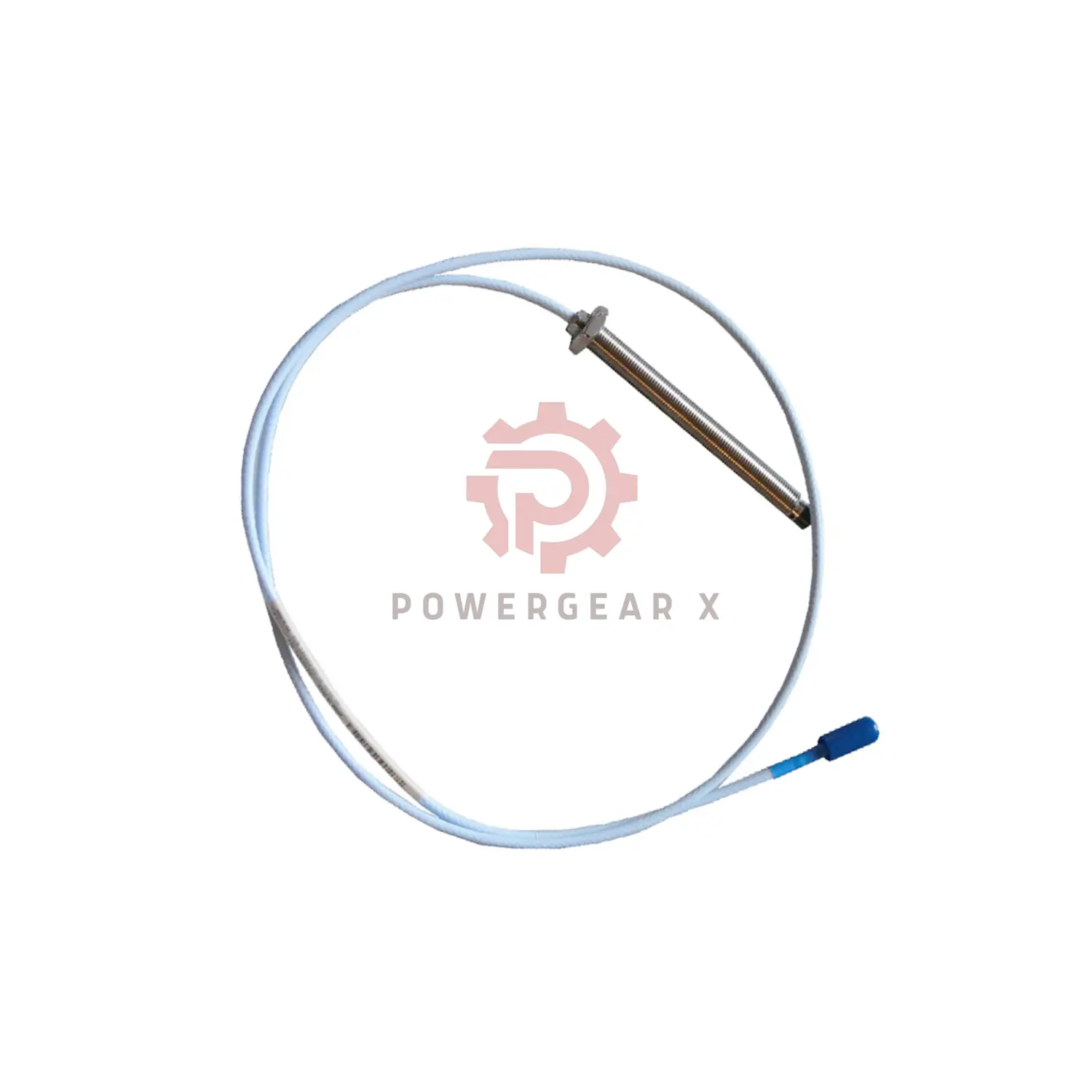

330906-02-12-10-02-CN Bently Nevada – Reverse Mount Probe

Bently Nevada Reverse Mount Probe

This 330906-02-12-10-02-CN industrial-grade reverse mount probe ensures precision vibration monitoring for critical machinery. Designed with a 1.0-meter FluidLoc cable and miniature coaxial ClickLoc connector, it delivers robust performance in high-temperature, high-pressure environments. Compatible with gas turbines, pumps, and compressors requiring IP67 protection and ATEX/IECEx certifications.

Core Technical Data

• Probe Diameter: 8 mm (0.31 in)
• Thread Specification: M10 x 1.0
• Frequency Range: 10 Hz – 10 kHz (±3 dB)
• Output Signal: 200 mV/mil ±3% (factory-calibrated)
• Voltage Range: 18–30 VDC

330906-02-12-10-02-CN Environmental Ratings

• Temperature Tolerance: -40°C to +120°C (-40°F to +248°F)
• Shock Resistance: 100 g peak (11 ms duration)
• Vibration Limit: 20 g RMS (20 Hz–2 kHz)

Certifications & Compliance

• Hazardous Area: ATEX/IECEx Ex ia IIC T4 Ga
• EMC: EN 61326-1:2013

Includes 18-month warranty and calibration certificate. Weight varies between 14–150 g (0.5–5.3 oz) based on configuration.
