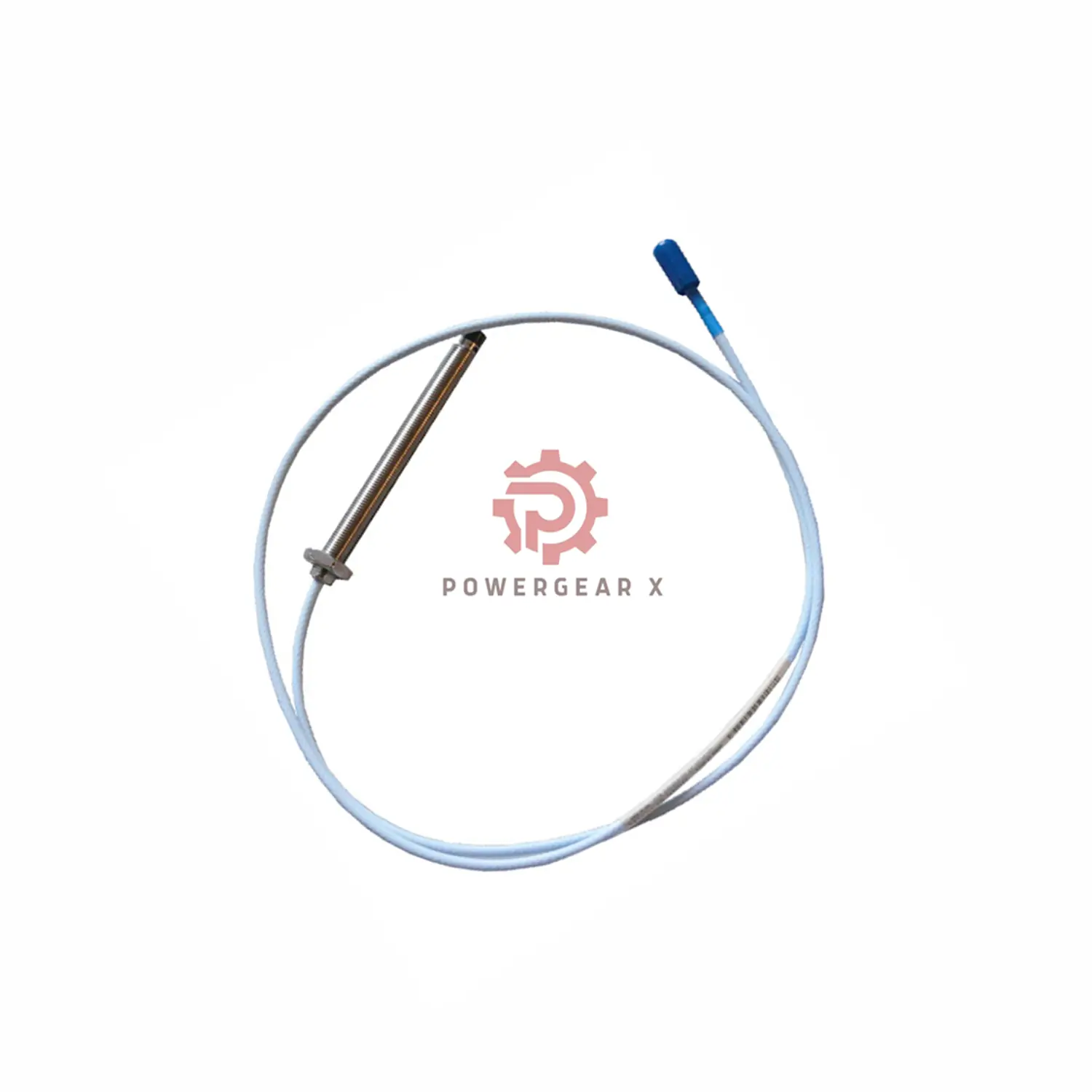

Bently Nevada 330904-08-10-70-11-00 Proximity Probe

Product Overview

The 330904-08-10-70-11-00 is a 3300 NSv proximity probe from Bently Nevada. It uses M8x1 threads and includes armored cable. The total probe length is 7.0 meters. It is new, factory packed, and includes a 12-month warranty.

Model Breakdown

• 330904: 3300 NSv Probe
• -08: Unthreaded length: 80 mm
• -10: Case length: 100 mm
• -70: Total length: 7.0 meters
• -11: Miniature coaxial ClickLoc connector with protector, FluidLoc cable
• -00: No agency approval

Key Technical Data

• Linear range: 0.25 to 1.75 mm
• Recommended gap: 1.0 mm
• Scale factor: 7.87 V/mm ±12.5%
• Accuracy: ±0.06 mm max
• Frequency: 0–10 kHz, -3 dB typical
• Minimum bend radius: 25.4 mm
• Temperature range: -52°C to +177°C
• Pressure seal: Viton O-ring (not pressure tested)
• Material: Probe tip: PPS, Case: AISI 304 stainless steel

Electrical Properties

• Probe resistance (7.0 m): 5.9 Ω ± 0.9
• Cable resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
• Cable capacitance: 69.9 pF/m typical

Installation Guide

• Probe thread: M8x1, max thread engagement: 12 mm
• Mounting torque: Max 5 in-lb (0.56 Nm), finger-tight recommended
• Field wiring: Use shielded triad cable, 16 to 24 AWG
• Max cable run: 305 meters from sensor to monitor
