330904-08-10-10-01-05 Bently Nevada | 3300 NSv Proximity Probes Metric

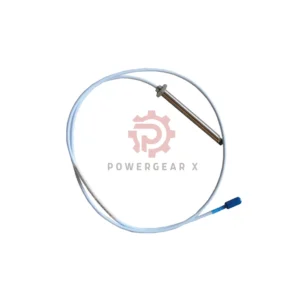

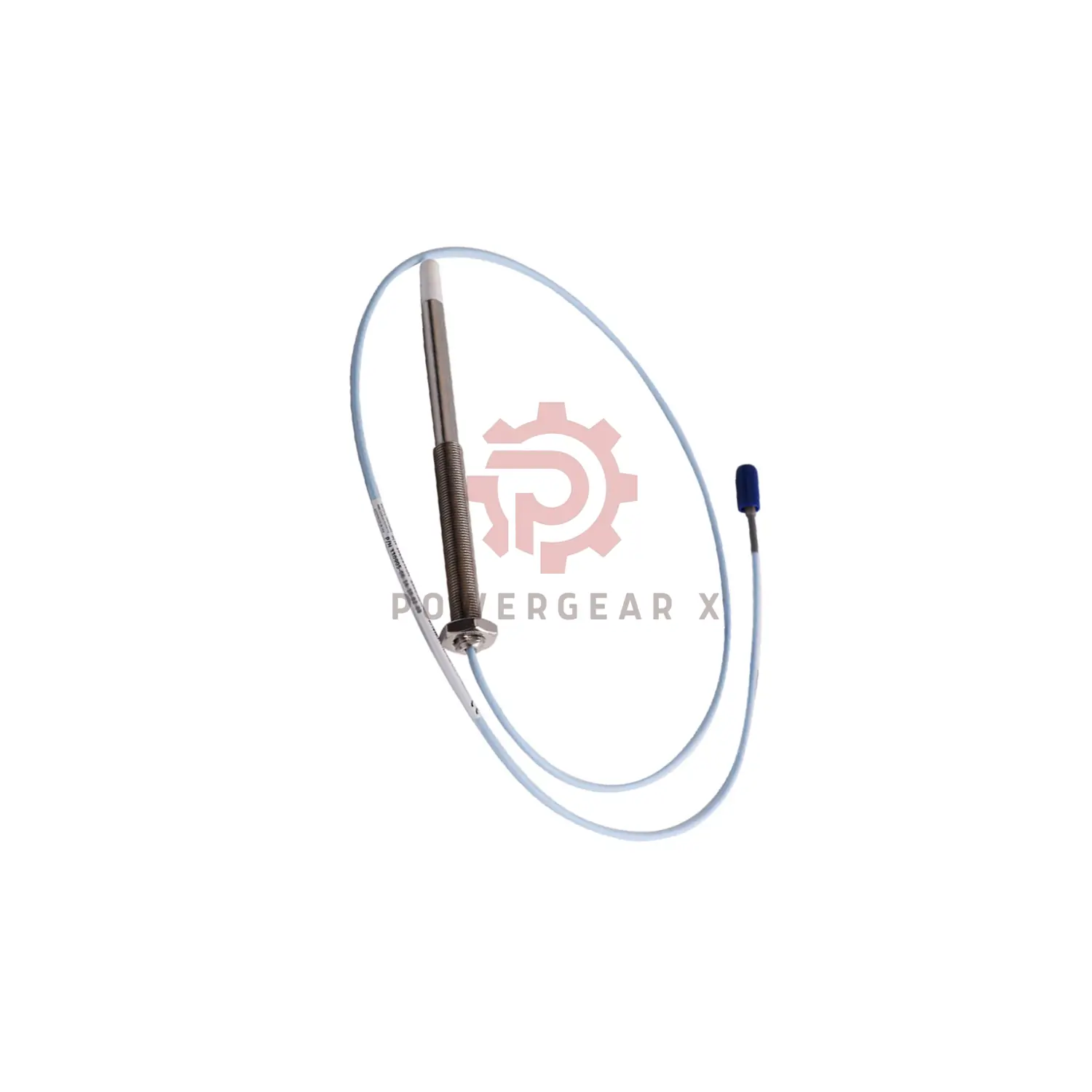

Bently Nevada 330904-08-10-10-01-05 3300 NSv Proximity Probe

Model Full Suffix Details (330904-08-10-10-01-05)

• Model: 330904 – 3300 NSv Probe
• Thread: M8X1 with armor
• Unthreaded Length: 80 mm
• Overall Case Length: 100 mm
• Total Cable Length: 1.0 meter (39 inches)
• Connector Type: 01 – Miniature coaxial ClickLoc with protector, standard cable
• Agency Approval: 05 – Multiple approvals

Technical Parameters

• Measuring Range: Linear range 0.25 mm to 1.75 mm
• Output Signal: Approx. -1 to -13 Vdc over linear range
• Incremental Scale Factor: 7.87 V/mm with ±12.5% / -20% tolerance
• Accuracy: Deviation less than ±0.06 mm
• Frequency Response: 0 to 10 kHz typical
• Recommended Gap: 1.0 mm
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Probe DC Resistance: 4.2 ± 0.5 ohms at 1 meter cable length
• Recommended Target Size: Minimum 8.9 mm diameter, ideal 13 mm diameter
• Probe Cable: 75 ohm coaxial, FEP insulated

Installation Guide

• Torque: Finger tight, max 0.56 N·m (5 in·lb)
• Thread Engagement Max Length: 12 mm for M8x1
• Minimum Bend Radius (with or without armor): 25.4 mm (1 inch)
• Use shielded triad cable for field wiring (16 to 24 AWG)
• Maximum recommended field wiring length: 305 meters (1000 feet)

Warranty & Shipping

• 12-month factory warranty
• Fast shipping via FedEx, UPS, DHL

Industrial Pain Point Solutions

• Reduces downtime by precise shaft position monitoring
• Resists chemicals and heat in demanding industrial environments
• Compatible with existing Bently systems for easy upgrades
• Long cable support reduces installation complexity in large plants
• Simple installation lowers maintenance and repair costs
