330904-00-10-50-01-00 | Bently Nevada | 3300 NSv Proximity Probes Metric

Bently Nevada 3300 NSv Proximity Probe: Precision for Demanding Environments

DESCRIPTION

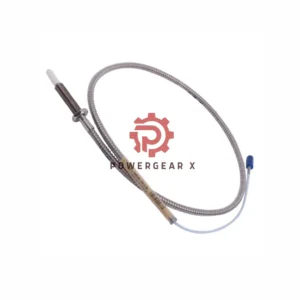

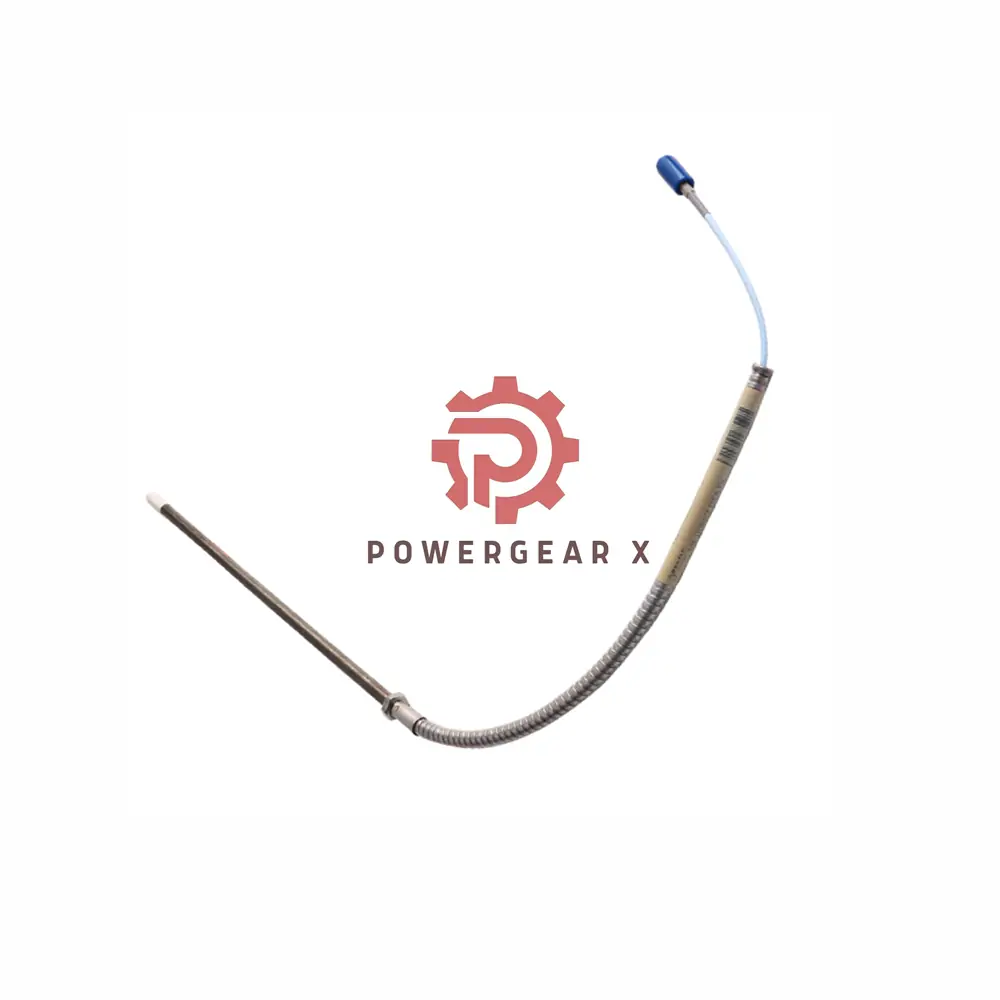

The 3300 NSv Proximity Probe (Model: 330904-00-10-50-01-00) features an M8X1 threaded stainless steel case and 5.0-meter standard cable with ClickLoc connector protector. Designed for harsh industrial use, it provides superior chemical resistance and backward compatibility with 3300 RAM probes.

TECHNICAL DATA

Brand: Bently Nevada
Model: 330904-00-10-50-01-00
Full Suffix Code:
– 00: 0mm Unthreaded Length
– 10: 100mm Case Length
– 50: 5.0m Cable
– 01: ClickLoc Connector + Protector
– 00: No Certifications Required

CORE SPECIFICATIONS

Measurement Range: 0.25-1.75mm (-1 to -13Vdc)
Accuracy: ±0.06mm deviation
Output: 7.87 V/mm (±12.5%)
Temp Resistance: -52°C to +177°C
Cable Type: 75Ω FEP-insulated coaxial
Thread Torque: 5.1 N•m (45 in•lb) max

INSTALLATION & INTEGRATION

• Mounting: Finger-tighten (0.56 N•m max)
• Compatibility: Works with 3300 XL NSv systems
• Wiring: Shielded triad cable ≤305m

CERTIFICATION & PACKAGE

• Materials: PPS tip, 304 SST body
• Pressure Seal: Viton O-ring design
• Included: 1 probe, factory documents

INDUSTRY APPLICATIONS

Ideal for chemical processing compressors and rotating equipment. Delivers 10kHz response with long cable runs. Outperforms 3000-series probes in side-view measurements.
