330904-00-10-05-01-05 | Bently Nevada | 3300 NSv Proximity Probes Metric

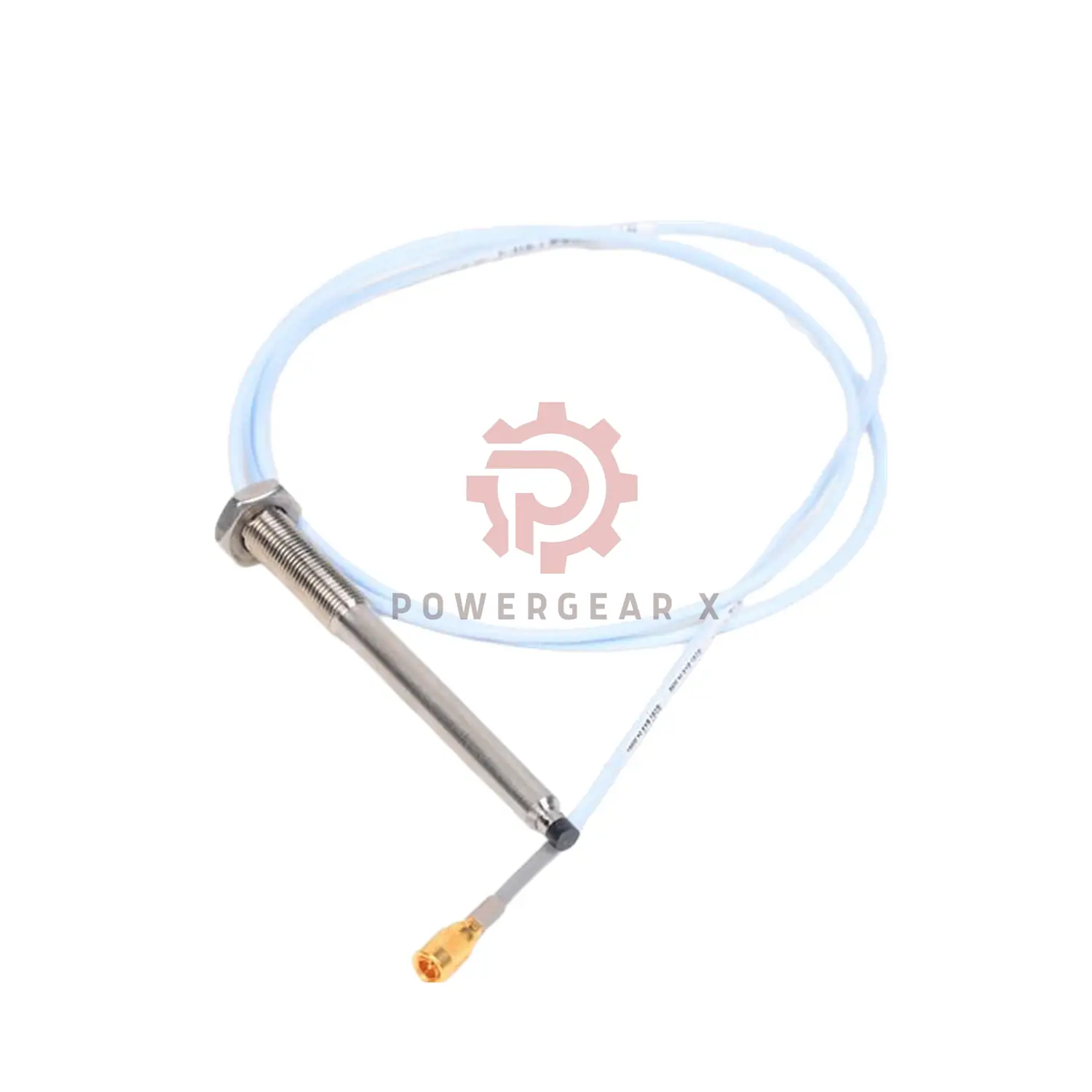

Bently Nevada 3300 NSv Proximity Probe

Industrial-Grade Vibration Monitoring

This 330904-00-10-05-01-05 model features a 100mm stainless steel case with chemical-resistant PPS tip. Designed for harsh environments like oil refineries and power plants.

🔑 Model Suffix Explained

• 330904-00-10-05-01-05 =
• -00- → 0mm unthreaded length
• -10- → 100mm case length
• -05 → 0.5m cable (20″)
• -01 → ClickLoc connector + protector
• -05 → ATEX/IECEx certified

Core Specifications

• Range: 1.5mm (0.25-1.75mm)
• Accuracy: ±0.06mm error
• Output: 7.87V/mm
• Temp: -62°F to +351°F
• Thread: M8x1 (12mm engagement)

Installation Notes

• Max torque: 5 in-lb (finger tight)
• Min cable bend: 1.0″ radius
• Cable length ≤1000ft

Compatibility

Direct replacement for 3300 RAM probes with identical electrical connections.

Certifications

Approved for hazardous locations (ATEX/IECEx)

Package Includes

• Probe with armored cable
• Connector protector
• Installation guide
• Viton O-ring seal
