330903-00-05-70-01-05 | Bently Nevada Metric 3300 NSv – Proximity Probes

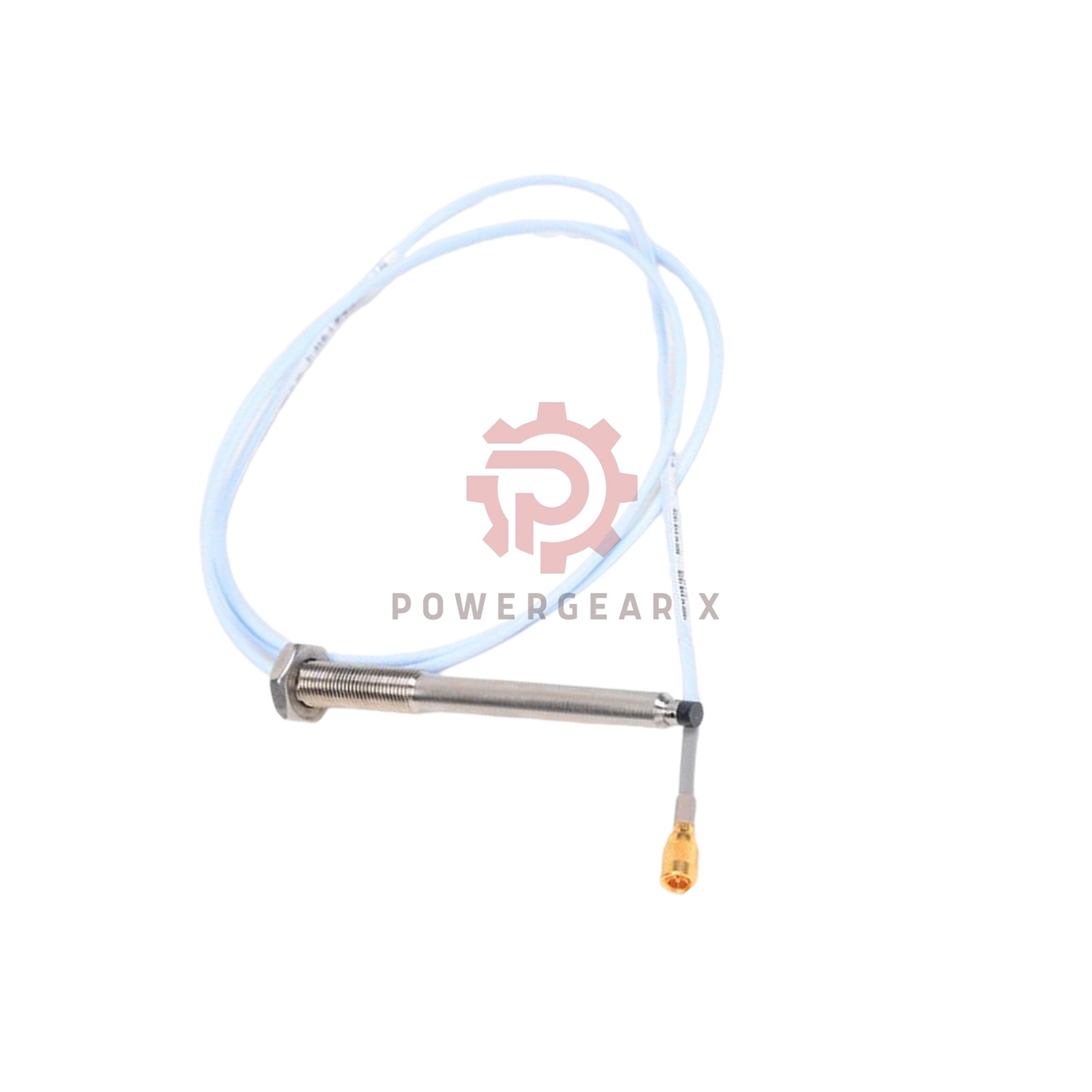

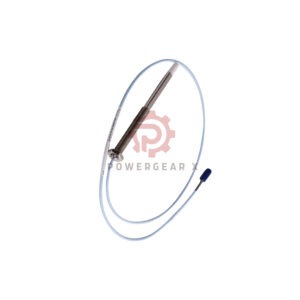

Bently Nevada 3300 NSv Proximity Probe: Precision Vibration Monitoring

Description

The Bently Nevada 3300 NSv Proximity Probe (Model: 330903-00-05-70-01-05) delivers high-accuracy shaft vibration measurement with a 7.0-meter cable and M8X1 threading. Features a connector protector for rugged installations, maintaining compatibility with 3300 RAM systems. Ideal for turbines, motors, and gearboxes in power generation plants.

Technical Specifications

• Brand: Bently Nevada
• Model: 330903-00-05-70-01-05
• Suffix Details:
  • -00: 0mm unthreaded length
  • -05: 50mm case length
  • 70: 7.0m cable
  • 01: ClickLoc connector + protector
  • 05: Multi-certified
• Range: 0.25-1.75mm (10-70 mils)
• Accuracy: ±0.06mm (±2.3 mils)
• Output: -1 to -13 Vdc (7.87 V/mm)
• Temp Range: -52°C to +177°C
• Materials: PPS tip, 304 SST case

Installation Guide

• Torque: 5.1 N•m (45 in•lb) max
• Min. target size: 13mm diameter
• Use shielded triad cable for field wiring

Certifications & Support

• Multi-agency approved (Option 05)
• 12-month warranty included
• Global shipping via DHL/FedEx/UPS

Real-World Use

Monitors steam turbine vibrations in energy plants, providing early warning of bearing wear with ±0.06mm precision.

For more detailed information:3300 NSv Proximity Transducer System Datasheet
