Overview

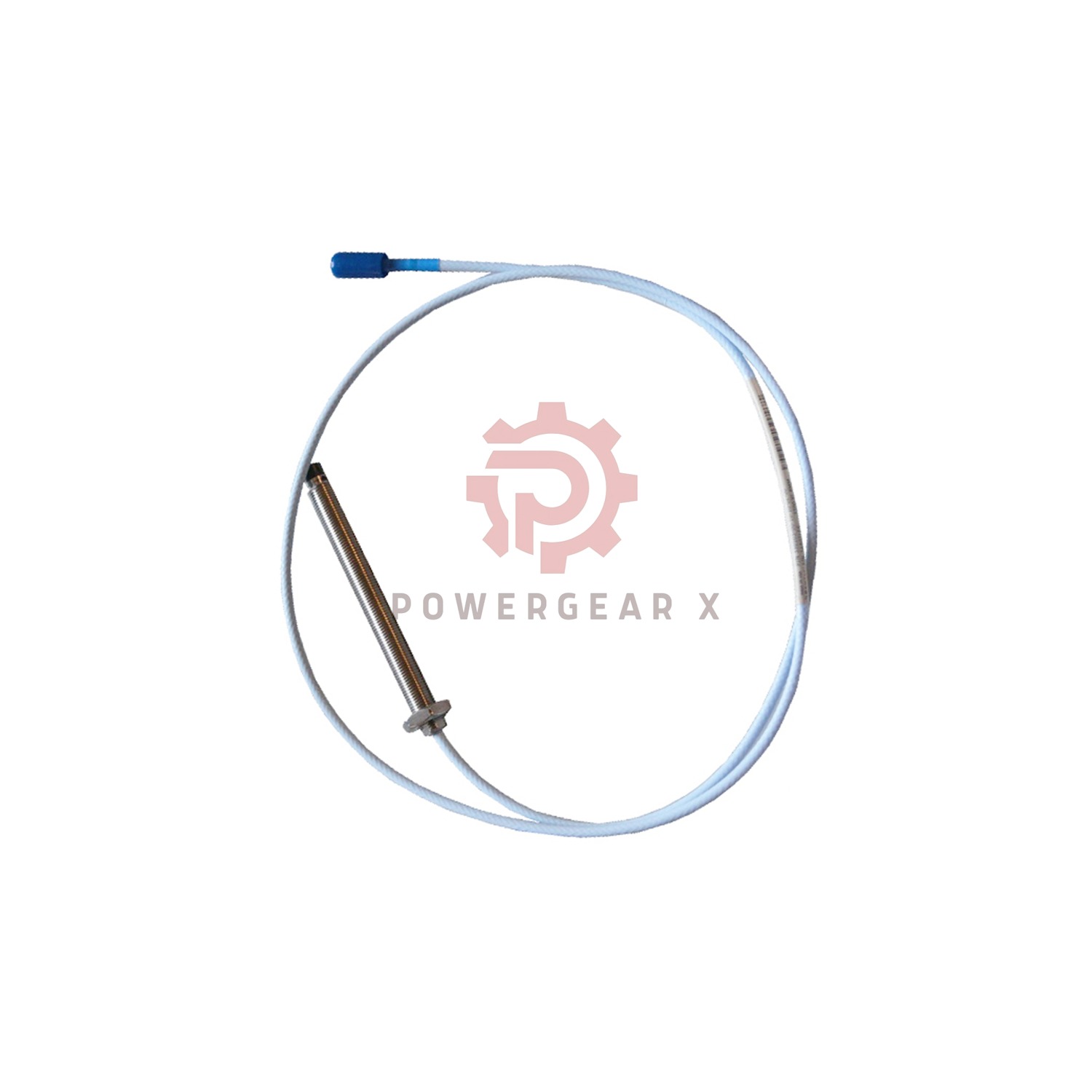

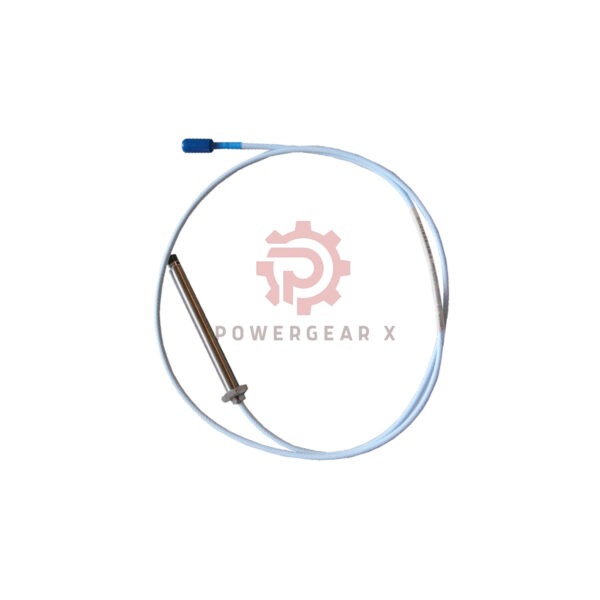

The Bently Nevada 330903-00-05-10-11-00 NSv Proximity Probe is engineered for extreme-duty vibration monitoring. Featuring a rugged 50 mm stainless steel case and FluidLoc chemical-resistant cable, it excels in harsh industrial environments. Directly replaces legacy 3300 RAM systems. Ships new with a 12-month warranty.
Model Suffix Blueprint
Model:330903-00-05-10-11-00
├─ 00 ➔ 0 mm unthreaded section ├─ 05 ➔ 50 mm heavy-duty case ├─ 10 ➔ 1.0m cable (39") ├─ 11 ➔ ClickLoc + FluidLoc protection └─ 00 ➔ No agency certifications
Precision Engineering
⚡ Electrical Specs
- Core Resistance: 4.2Ω ±0.5
- Cable Capacitance: 69.9 pF/m
- Frequency Response: 0-10 kHz (±3dB)
🛠 Mechanical Limits
- Max Torque: 5.1 N·m
- Bend Radius: 25.4 mm
- Thread Grip: 12 mm
Advanced Protection
- ◼ FluidLoc Cable: Triple-layer FEP insulation resists oils, acids, and high-pressure washdowns
- ◼ PPS Tip: 40% harder than standard probe materials
Performance Metrics
| Scale Factor | 7.87 V/mm ±12.5% |
| Linear Range | 0.25–1.75 mm |
| Target Size | 13 mm min (8.9 mm absolute) |
Industrial Compliance
- ▹ Compatible with 305m shielded triad field wiring
- ▹ 50% thicker case vs standard 30 mm models
