Product details
Overview

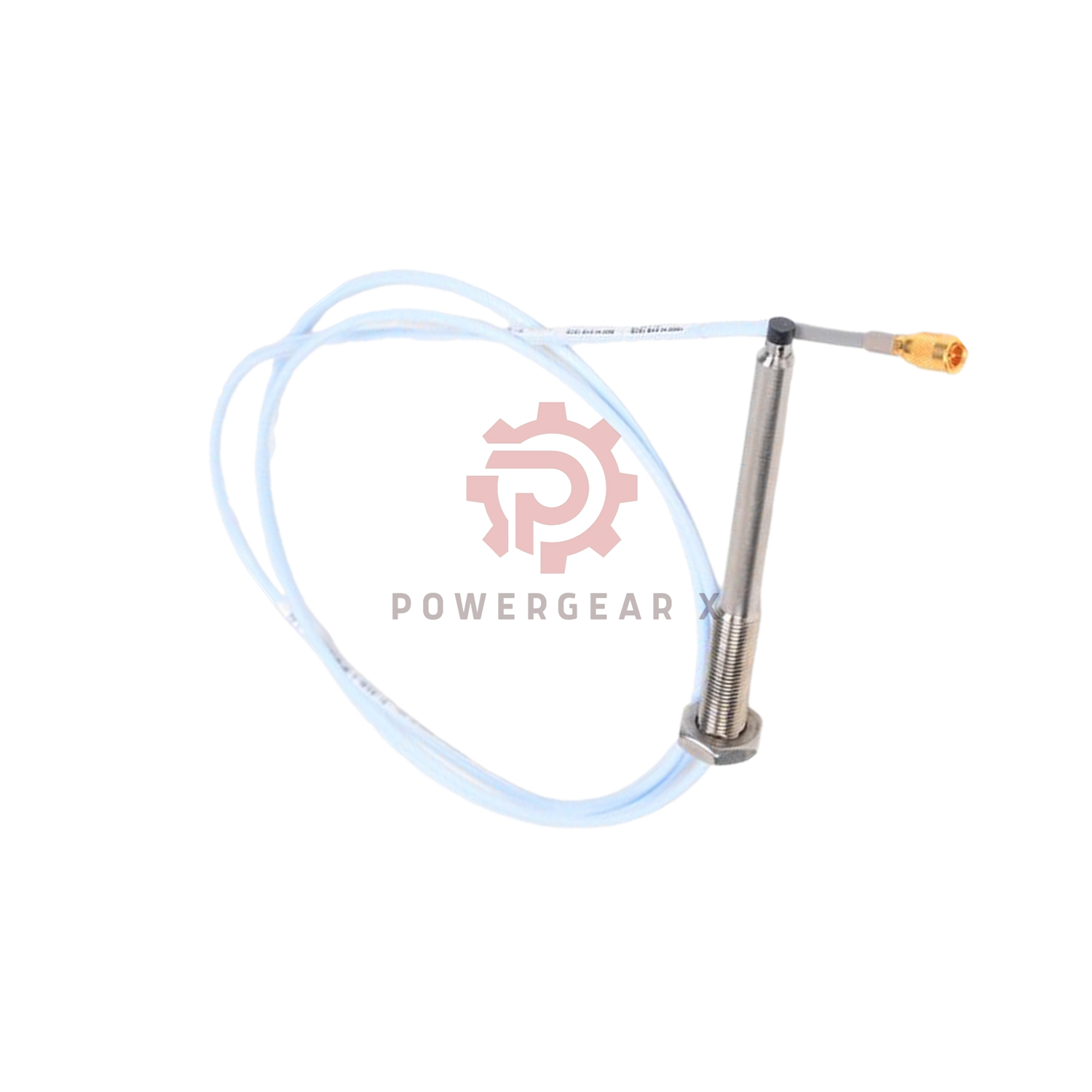

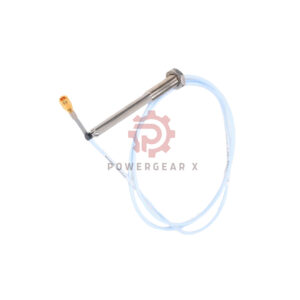

The Bently Nevada 330903-00-05-10-01-05 3300 NSv Proximity Probe features a 50mm case and ClickLoc connector protector. Built for harsh industrial use, it works from -52°C to +177°C. Compatible with 3300 RAM systems. Ships new with a 1-year factory warranty.
Technical Specs
- Brand: Bently Nevada
- Part No.: 330903-00-05-10-01-05
- Code Guide:
– 00: No armor
– 05: 50mm case
– 10: 1.0m cable
– 01: ClickLoc + protector
– 05: Multi-certified - Resistance: 4.2Ω ±0.5Ω
- Shield Loss: 0.066Ω/m
- Thread Fit: M8x1 (12mm max)
- Capacitance: 69.9 pF/m
Key Features
- → Connector protector prevents damage
- → 50mm case for medium-depth installs
Performance Data
- Gap Range: 0.25–1.75mm (±0.06mm)
- Voltage Output: 7.87 V/mm (±12.5%)
- Min Target: 8.9mm diameter
Certifications
- ✔ ATEX II 3G Ex ic IIC
- ✔ CE 2014/34/EU
- ✔ RoHS compliant
