330903-00-04-70-11-00 | Bently Nevada Metric 3300 NSv – Proximity Probes

Product Overview

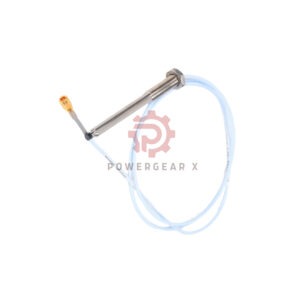

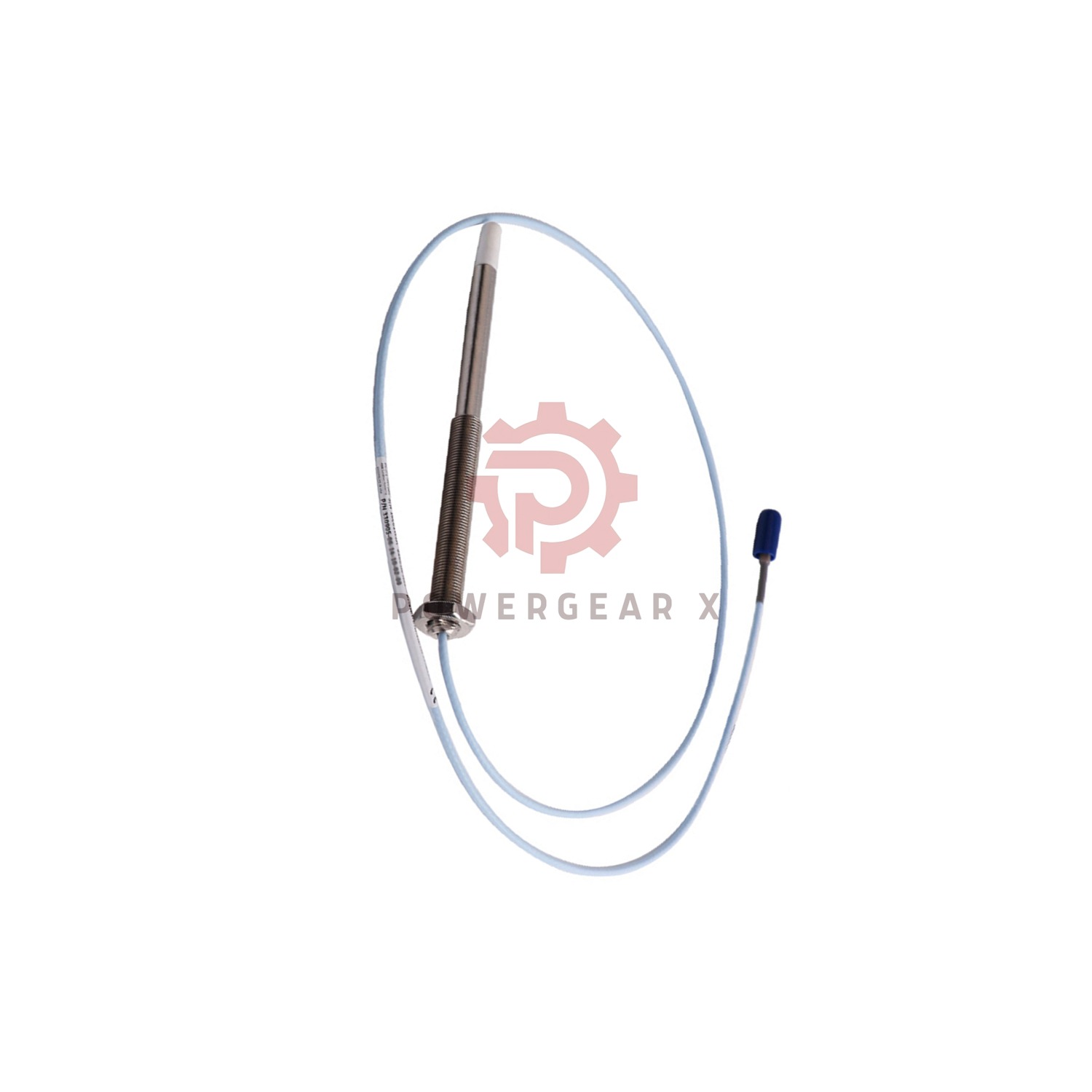

The Bently Nevada 330903-00-04-70-11-00 proximity probe delivers precise vibration monitoring with chemical-resistant design. Features a 40mm stainless steel case, 7m FluidLoc cable, and ClickLoc connector. Factory-new with 12-month warranty.

Technical Specifications

• Brand: Bently Nevada
• Full Model: 330903-00-04-70-11-00
• Model Codes:
  ▶ 00: 0mm unthreaded section
  ▶ 04: 40mm case length
  ▶ 70: 7.0m cable
  ▶ 11: ClickLoc + FluidLoc + protector
  ▶ 00: No certifications required
• Electrical Data:
  – Probe: 5.9Ω ±0.9 at 7m
  – Cable: 0.220Ω/m (center), 0.066Ω/m (shield)
  – Capacitance: 69.9pF/m ±5%

Key Performance

• Measurement Range: 0.25–1.75mm (10–70 mils)
• Accuracy: ±0.06mm max deviation
• Voltage Output: 7.87V/mm (±12.5%)
• Response: 0–10kHz (±3dB)

Installation Guide

• Threads: M8x1 (max 12mm depth)
• Torque: 0.56N·m max (finger tight)
• Gap: Set to 1.0mm (40 mils)
• Bend Radius: 25.4mm minimum

For more detailed information:3300 NSv Proximity Transducer System Datasheet
