330903-00-04-05-11-05 | Proximity Probes Metric 3300 NSv – Bently Nevada

Overview

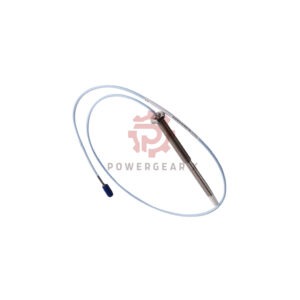

The Bently Nevada 330903-00-04-05-11-05 3300 NSv Proximity Probe is engineered for precision monitoring in extreme industrial environments. Compatible with legacy 3300 RAM systems, it features a FluidLoc cable for chemical resistance, a compact 40mm case, and Viton O-ring sealing. Operates flawlessly from -52°C to +177°C.

Technical Specifications

• Brand: Bently Nevada
• Model: 330903-00-04-05-11-05

  ⚬ 00: 0mm unthreaded section

  ⚬ 04: 40mm case (33% longer than -03)

  ⚬ 05: 0.5m cable (20″)

  ⚬ 11: ClickLoc + FluidLoc cable

  ⚬ 05: ATEX/IECEx/CSA certified

• Core Performance:
  • Accuracy: ±0.06mm deviation over 0.25–1.75mm range
  • Scale factor: 7.87V/mm (±12.5% tolerance)
  • Response: 0–10kHz (±3dB with 305m wiring)
• Robust Design:
  • Cable: FluidLoc FEP insulation, 25.4mm bend radius
  • Seal: Viton O-ring (IP67-equivalent)
• Installation:
  • Max torque: 7.3N·m (5.1N·m recommended)
  • Wiring: 16–24 AWG, 305m max

For more detailed information:3300 NSv Proximity Transducer System Datasheet
