🚨 330903-00-03-10-11-05 HIGHLIGHTS

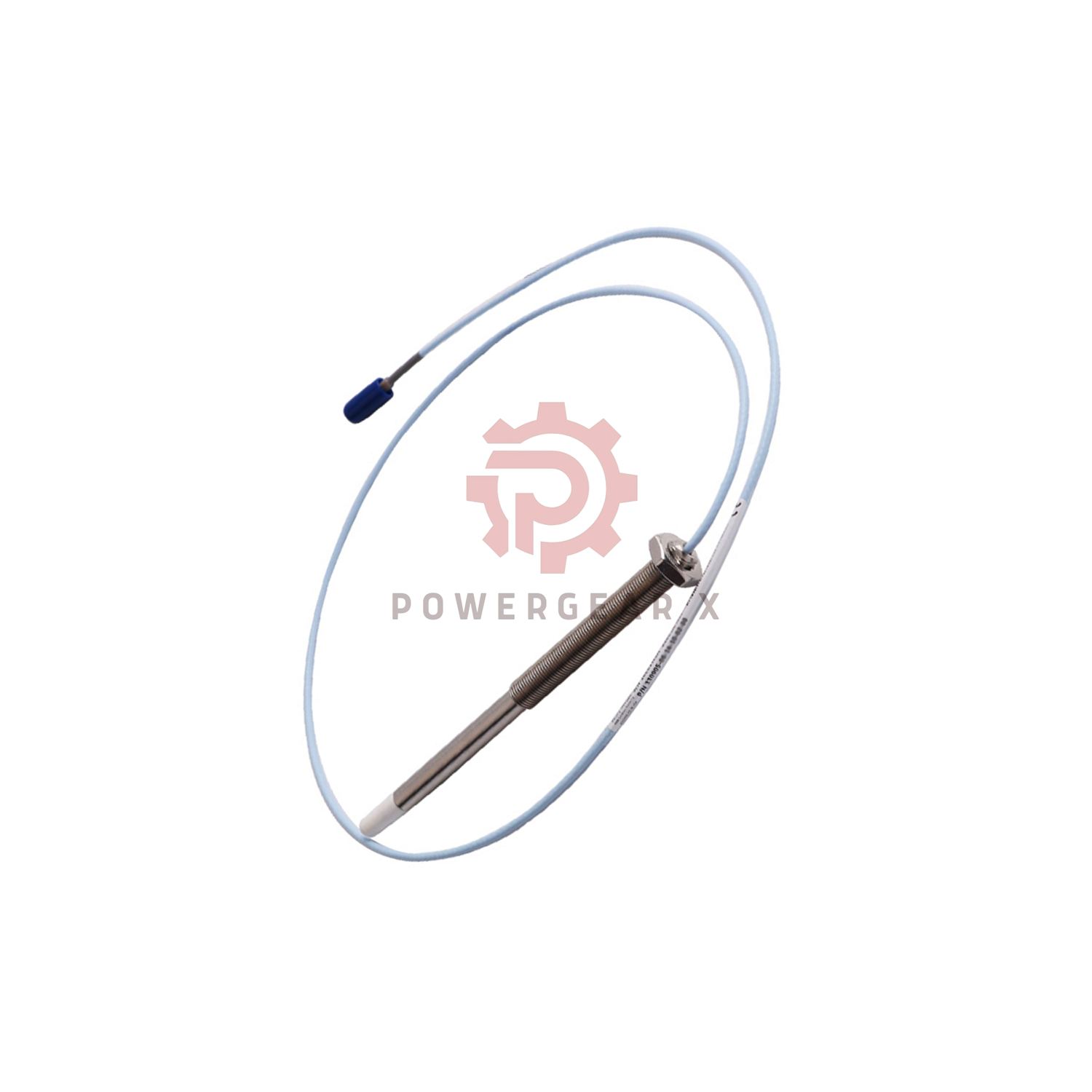

This Bently Nevada 3300 NSv Probe(330903-00-03-10-11-05) merges a 30mm case with IP68 FluidLoc protection for extreme environments. Perfect for oil/gas compressors and marine applications. Ships factory-new with full certifications.
🔍 MODEL CODE DECODED
| -00 | ▶ No Armor |
| -03 | ▶ 30mm Case |
| -10 | ▶ 1.0m Cable |
| -11 | ▶ FluidLoc + Protector |
| -05 | ▶ ATEX/CE/IECEx |
⚡ PERFORMANCE DATA
- Temp Range: -52°C ↔ +177°C
- Resistance: 4.2Ω ±0.25Ω
- Shield Loss: 0.066Ω/m
- Scale Factor: 7.87V/mm (±12.5%)
- Min Target: Ø8.9mm
- Bending: 25.4mm Radius
💧 FLUIDLOC SPECS
- IP68 waterproof rating
- 0.220Ω/m center conductor
- Tested @ 10 bar pressure
⚠ CRITICAL NOTES
WARNING: For shafts <13mm → Reduce gap to 0.5mm. Max 305m cable length.
📜 CERTIFICATIONS
ATEX II 1G | IECEx Ex ia IIC T4 | CE 2014/34/EU | RoHS3
