330903-00-03-05-12-05 | Proximity Probes Metric 3300 NSv – Bently Nevada

Overview

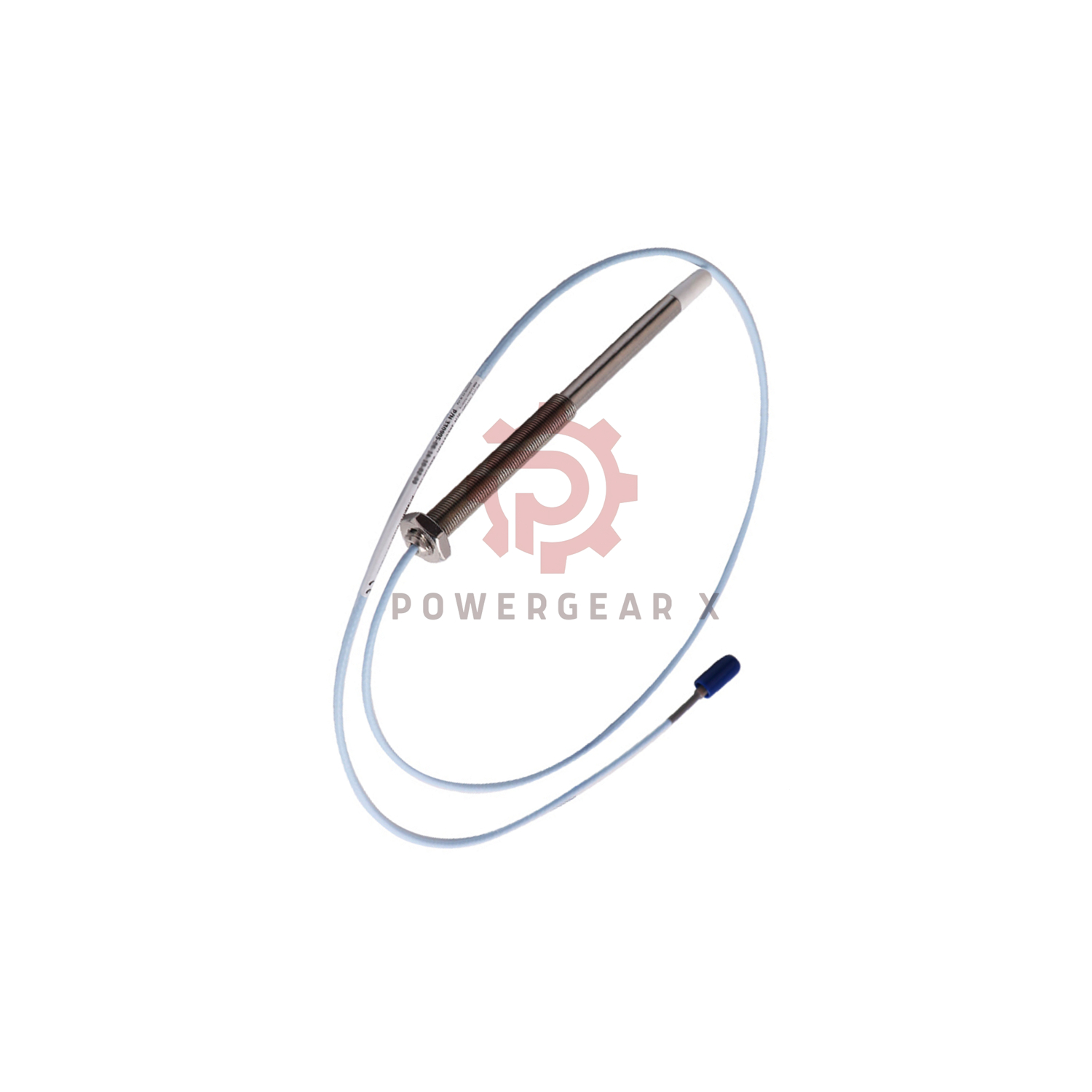

The Bently Nevada 330903-00-03-05-12-05 3300 NSv Probe is a rugged industrial sensor for harsh environments. Replaces older 3300 RAM probes with stronger chemical resistance. Features a ClickLoc connector, FluidLoc cable, and Viton O-ring seal. Works in extreme cold (-52°C) and heat (+177°C).

Technical Specifications

• Brand: Bently Nevada
• Model: 330903-00-03-05-12-05

  ▸ 00: 0 mm unthreaded

  ▸ 03: 30 mm case

  ▸ 05: 0.5m cable

  ▸ 12: ClickLoc + FluidLoc cable

  ▸ 05: ATEX/IECEx certified

• Core Specs:
  • Resistance: 4.0Ω ±0.5 (at 0.5m)
  • Voltage: 7.87V/mm (±12.5%)
  • Range: 0.25–1.75mm from target
  • Accuracy: ±0.06mm error
• FluidLoc Cable:
  • Center wire: 0.220Ω/m
  • Shield: 0.066Ω/m
  • Bend radius: 25.4mm (1.0in)
  • Insulation: Oil-resistant FEP
• Installation:
  • Max torque: 7.3N·m (65in·lb)
  • Safe torque: 5.1N·m (45in·lb)
  • Thread depth: 12mm minimum

For more detailed information:3300 NSv Proximity Transducer System Datasheet
