330903-00-03-05-01-05 | 3300 NSv – Proximity Probes Metric Bently Nevada

Overview

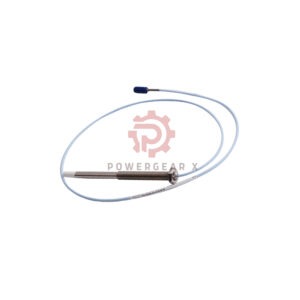

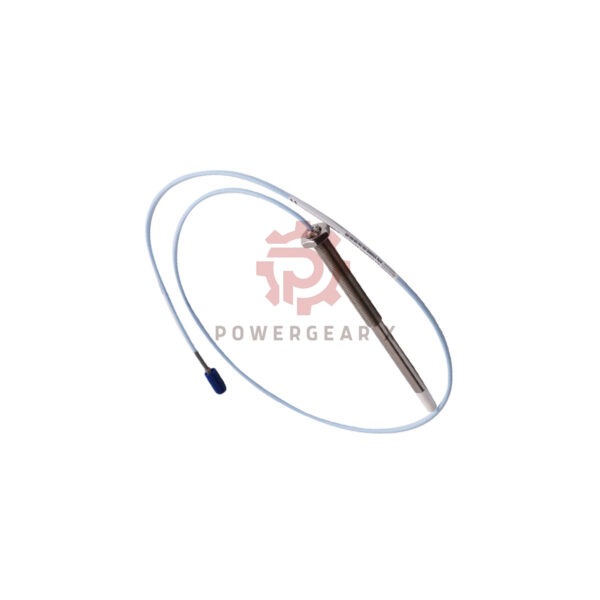

The Bently Nevada 330903-00-03-05-01-05 3300 NSv Proximity Probe is built for precision monitoring in extreme industrial environments. Compatible with legacy 3300 RAM systems, it delivers stronger chemical resistance and a wider operating range. Features a ClickLoc connector with protector, FEP-insulated cable, and Viton O-ring sealing. Designed to operate from -52°C to +177°C with 30mm compact case length.

Technical Specifications

• Brand: Bently Nevada
• Part No.: 330903-00-03-05-01-05
• Key Upgrades:
  • 30% smaller case vs. 3300 RAM probes
  • IP67-rated connector protection
  • Zero signal loss up to 305m field wiring
• Model Code Structure:

  ◈ 00 → 0mm unthreaded

  ◈ 03 → 30mm case (50% shorter than -05)

  ◈ 05 → 0.5m cable (20″)

  ◈ 01 → ClickLoc + dust cap

  ◈ 05 → ATEX/IECEx/CSA certified

• Performance Data:
  • Response time: <2μs (10kHz bandwidth)
  • Hysteresis: 0.5% full scale (0.008mm)
  • Insulation resistance: 100MΩ at 500V DC
• Cable & Wiring:
  • Shield effectiveness: 90dB @ 30MHz
  • Max pull force: 50N (11.2 lbf)
  • Bend cycles: 10,000+ (25.4mm radius)
• Mechanical Limits:
  • Case material: AISI 304 SST (salt spray 1,000hrs)
  • Vibration resistance: 20g peak (10–2000Hz)
  • Impact rating: 100g, 11ms half-sine

For more detailed information:3300 NSv Proximity Transducer System Datasheet
