330903-00-02-70-01-05 | Bently Nevada Metric 3300 NSv – Proximity Probes

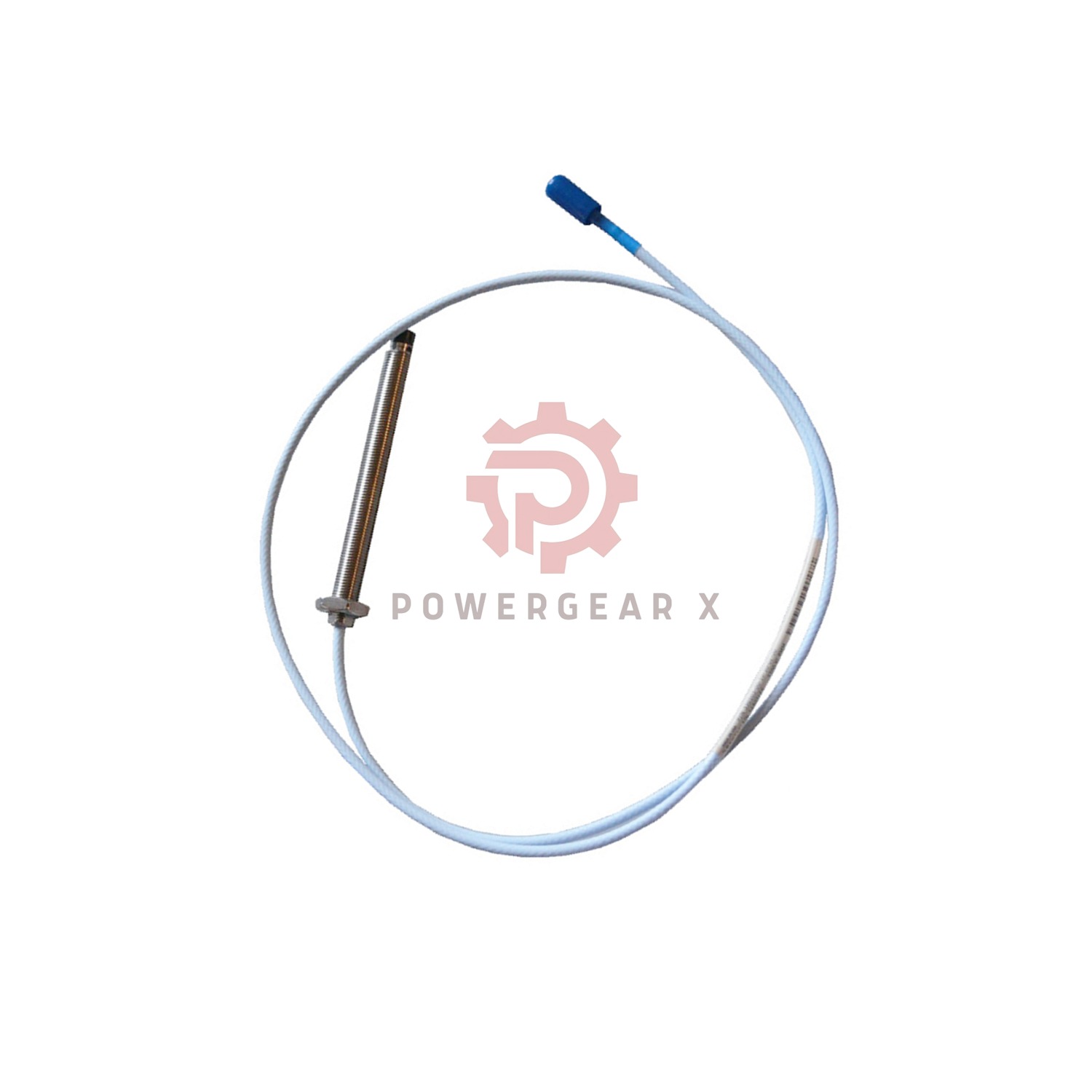

Bently Nevada 3300 NSv Proximity Probe: Ultra-Compact Industrial Sensor

Description

The Bently Nevada 3300 NSv Probe (Model: 330903-00-02-70-01-05) features a 20mm ultra-compact case with 7.0m standard cable for space-constrained installations. Designed with M8X1 threading and ClickLoc connector protector, this sensor replaces 3300 RAM probes while offering enhanced chemical resistance. Ideal for gearboxes and compact turbines.

Technical Specifications

• Brand: Bently Nevada
• Full Model: 330903-00-02-70-01-05
• Suffix Breakdown:
  • -00: 0mm Unthreaded
  • -02: 20mm Case (Shortest Option)
  • 70: 7.0m Cable (23ft)
  • -01: ClickLoc + Protector
  • -05: Multi-Certified
• Range: 0.25–1.75mm (10–70 mils)
• Accuracy: ±0.06mm (±2.3 mils)
• Output: -1 to -13 Vdc (7.87 V/mm)
• Temp Range: -52°C to +177°C
• Materials: PPS Tip | 304 SST Case

Installation Guide

• Max Torque: 5.1 N·m (45 in·lb)
• Target Size: ≥13mm Diameter
• Bend Radius: 25.4mm (1.0″)
• Field Wiring: 16-24 AWG Shielded Triad

Key Features

• Space-Saving Design: 20mm case for tight installations
• PPS Material: Resists oils/solvents

Certifications & Support

• ATEX/IECEx/CE: Hazardous area approved
• 12-Month Warranty: Factory sealed
• Global Shipping: FedEx/DHL/UPS (2-5 days)

For more detailed information:3300 NSv Proximity Transducer System Datasheet
