330903-00-02-05-12-00 | 3300 NSv – Bently Nevada Proximity Probes Metric

Overview

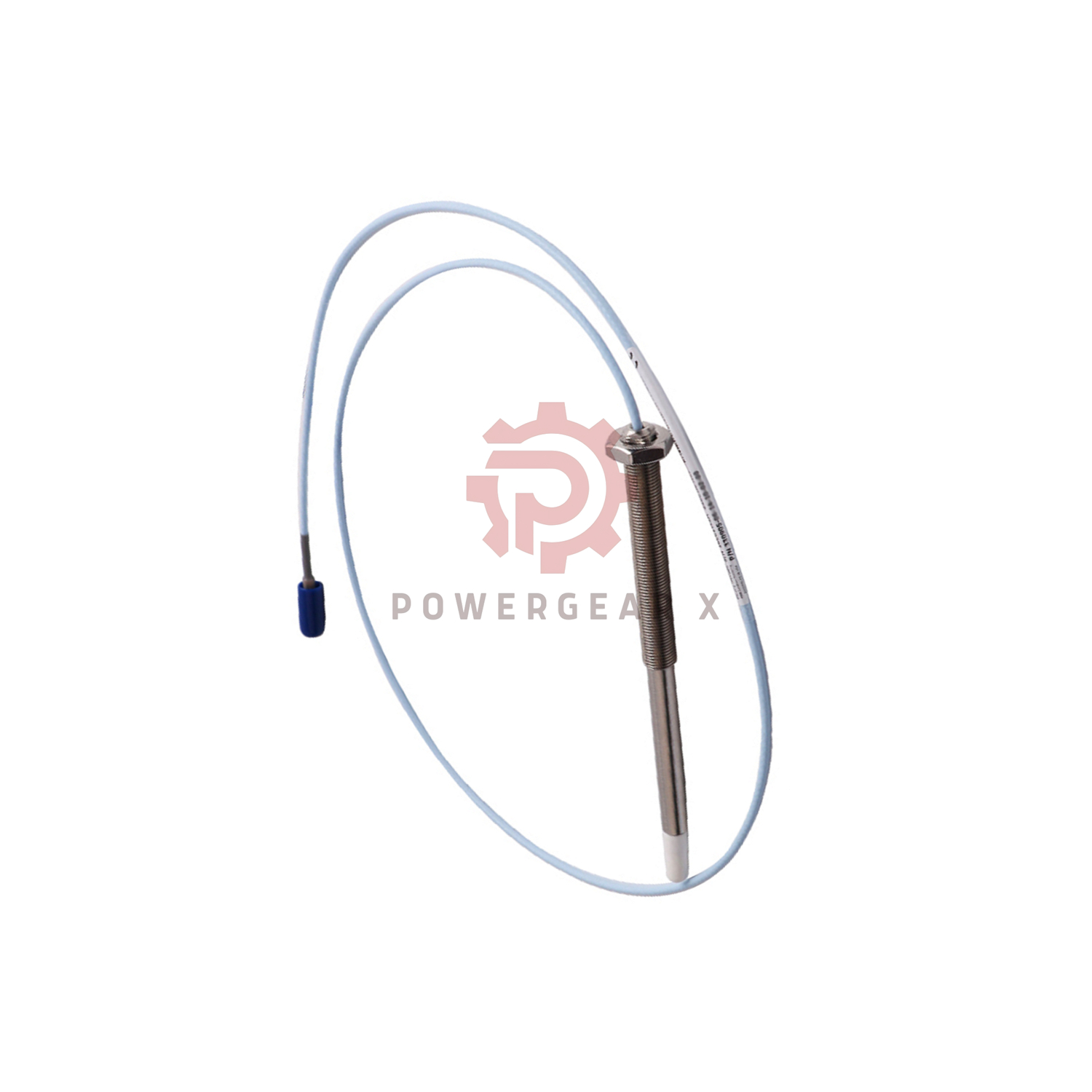

The Bently Nevada 330903-00-02-05-12-00 3300 NSv Proximity Probe is a high-performance sensor for industrial machinery. It works with older 3300 RAM systems but offers better chemical resistance and a FluidLoc cable for harsh environments. Built with a stainless-steel case and Viton seal, it operates in extreme temperatures (-52°C to +177°C).

Technical Specifications

• Brand: Bently Nevada
• Part Number: 330903-00-02-05-12-00
• Model Codes:

  → 00: 0 mm unthreaded length

  → 02: 20 mm case length

  → 05: 0.5-meter cable (20 in)

  → 12: ClickLoc connector + FluidLoc cable

  → 00: No agency approvals required

• Electrical Specs:
  • Probe resistance: 4.0Ω ±0.5 (at 0.5m)
  • Center conductor: 0.220Ω/m (0.067Ω/ft)
• Mechanical Specs:
  • Linear range: 0.25–1.75 mm (10–70 mils)
  • Gap setting: 1.0 mm (40 mils)
  • Scale factor: 7.87 V/mm (±12.5%/-20%)
  • Deviation error: <±0.06 mm (±2.3 mils)
• Field Wiring:
  • Wire gauge: 16–24 AWG (0.2–1.5 mm²)
  • Shielding: Triad cable required
• Durability:
  • Tip material: PPS (polyphenylene sulfide)
  • Case material: AISI 304 stainless steel
  • Bend radius: 25.4 mm (1.0 in)
  • Thread engagement: 12 mm for M8x1

For more detailed information:3300 NSv Proximity Transducer System Datasheet
