Overview

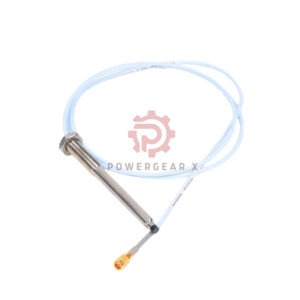

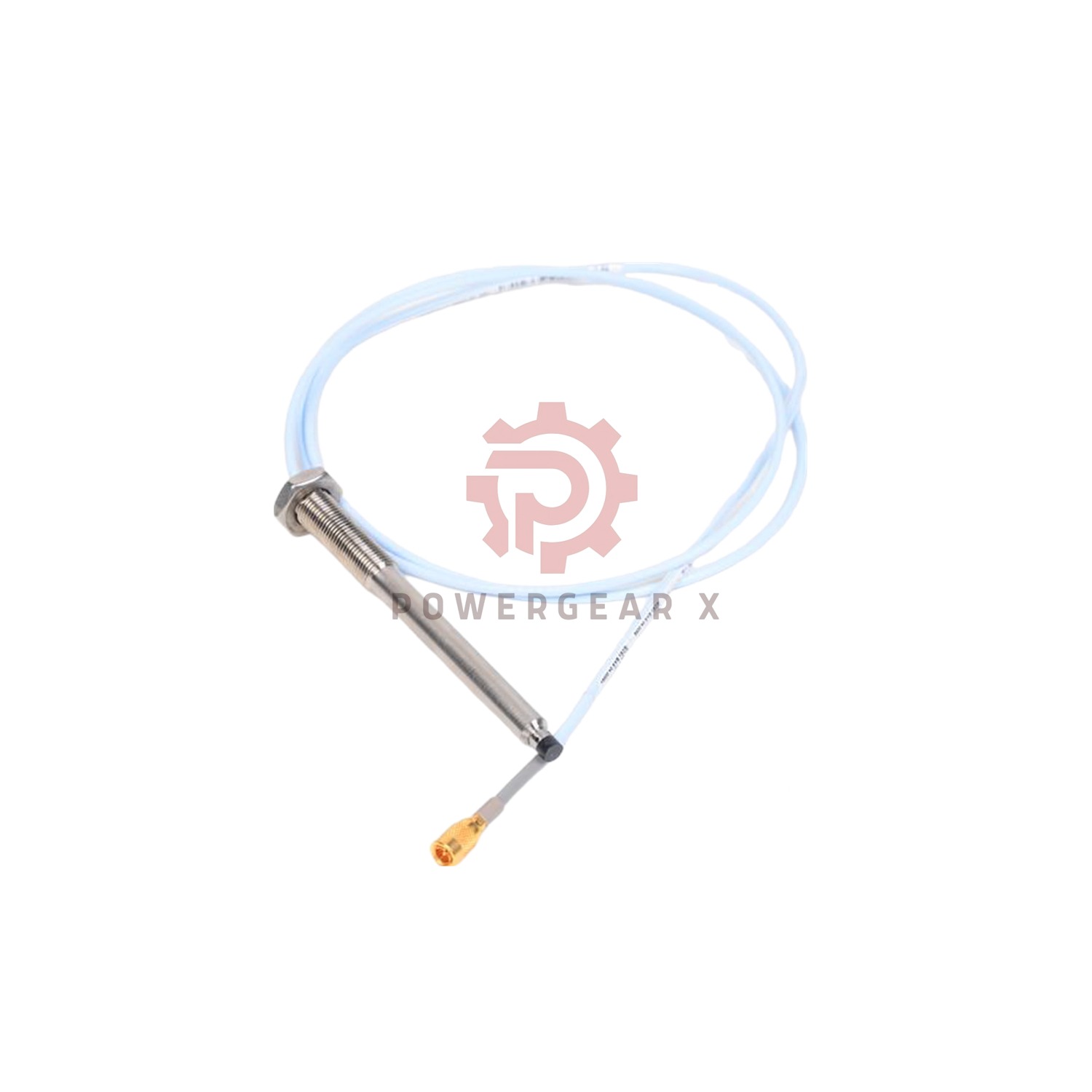

The Bently Nevada 330903-00-02-05-11-05 NSv Proximity Probe offers precision monitoring with a compact 20 mm case. Designed for tight spaces, it features a connector protector for enhanced durability. This probe replaces older 3300 RAM models and ships new with a 12-month warranty.

Technical Specifications

• Brand/Model: Bently Nevada 330903-00-02-05-11-05
• Probe Resistance: 4.0 Ω ±0.5 Ω (0.5 m)
• Cable Performance:
  • Center conductor: 0.220 Ω/m (±0.3%)
  • Shield resistance: 0.066 Ω/m (±1.2%)
  • Capacitance: 69.9 pF/m (±3 pF)
• Installation:
  • Thread: M8x1 (12 mm engagement)
  • Torque: 5.1 N·m (45 in·lb) recommended
  • Min. bend radius: 25.4 mm
• Signal Range: 0.25-1.75 mm (-1 to -13 Vdc)
• Scale Factor: 7.87 V/mm (±12.5%)
• Temp Range: -52°C to +177°C

Model Code Explained

• -00- 0 mm unthreaded length
• -02- 20 mm case length
• -05- 0.5 m cable (20 in)
• -11- ClickLoc connector + protector
• -05- ATEX/IECEx certified

Key Upgrades

For more detailed information:3300 NSv Proximity Transducer System Datasheet
