330903-00-02-05-01-05 3300 NSv – Bently Nevada Proximity Probes Metric

Overview

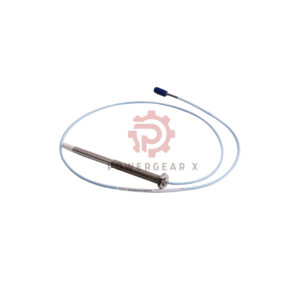

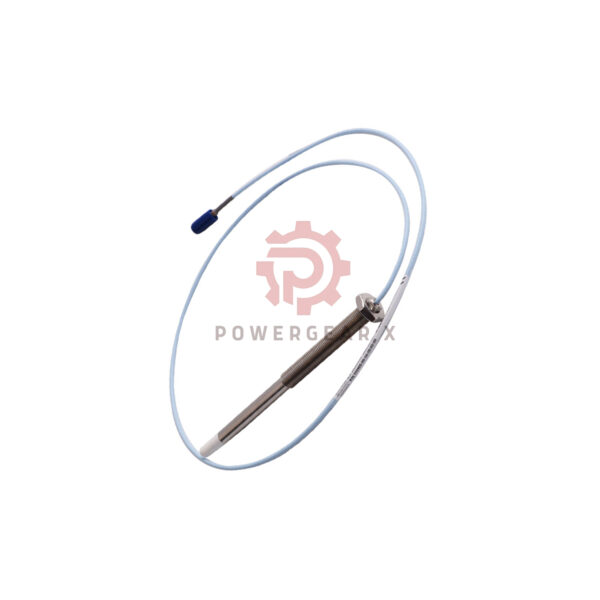

The Bently Nevada 330903-00-02-05-01-05 3300 NSv Proximity Probe offers reliable monitoring for industrial machinery. Designed with an M8x1 thread and no armor, it replaces older 3300 RAM probes while improving chemical resistance. Includes a ClickLoc connector with protector and seals pressure using a Viton O-ring. Ideal for compressors and harsh environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 330903-00-02-05-01-05
  • Breakdown of Suffix Codes:
    • 00: 0 mm unthreaded length
    • 02: 20 mm overall case length
    • 05: 0.5-meter total cable (20 inches)
    • 01: ClickLoc connector + protector
    • 05: Multiple agency approvals
• Probe Resistance: 4.0 ohms (±0.5) at 0.5m length
• Cable Specs:
  • Center conductor: 0.220 ohms/m
  • Shield: 0.066 ohms/m
  • Capacitance: 69.9 pF/m
• Field Wiring: 0.2–1.5 mm² (16–24 AWG), max 305m
• Performance:
  • Linear range: 0.25–1.75 mm
  • Scale factor: 7.87 V/mm (±12.5%/-20%)
  • Frequency response: 0–10 kHz (±3 dB)
• Target Size: Min. 8.9 mm (13 mm recommended)
• Durability:
  • Tip material: PPS
  • Case material: AISI 304 SST
  • Bend radius: 25.4 mm
  • Temperature range: -52°C to +177°C
• Installation:
  • Max torque: 7.3 N•m (use 5.1 N•m)
  • Thread engagement: 12 mm for M8x1

For more detailed information:3300 NSv Proximity Transducer System Datasheet
