330901-00-40-10-02-05 Proximity Probes 3300 NSv Bently Nevada

Precision Vibration Sensor

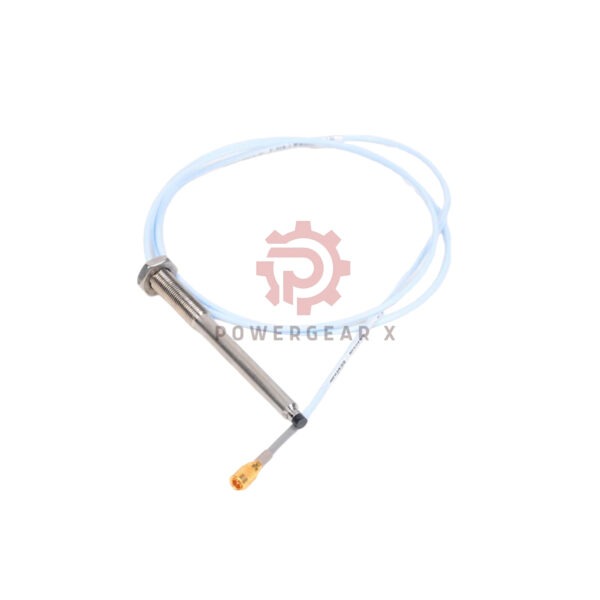

The 3300 NSv Probe 330901-00-17-10-02-05 (1.7″ case, 1m cable) detects machinery vibrations with ±0.01mm accuracy. Made in USA. Operates at -52°C to +177°C with 100,000h lifespan at +120°C.

Full Technical Data

• Mechanical


  Case length	1.7″ (43.18mm) ±0.05mm
  Cable length	1.0m ±2% (39.37″ ±0.79″)
  Thread engagement	0.375″ (9.525mm) max
  Weight range	14g (0.5oz) to 150g (5.3oz)

  75Ω impedance @ 1kHz, FEP insulation 0.3mm thick

• Torque Limits
  • Max instantaneous: 7.3N·m (65in·lb)
  • Continuous service: 5.1N·m (45in·lb)
  • Thread stripping torque: 9.5N·m ±5%
• Material Properties


  Component	Material	Temp Limit	Other
  Case	AISI304 SST	+425°C	18% Cr, 8% Ni
  Tip	PPS	+240°C	UL94 V-0 flame rating
  Seal	Viton® GLT	-26°C to +232°C	Shore A 75±5

• Environmental
  • IP68 rating when properly installed
  • 10-2000Hz vibration resistance (IEC 60068-2-6)
  • 50g shock survivability (MIL-STD-202G)

Certifications

• ATEX II 1/2G Ex ia IIC T4 Ga
• IECEx EPL Ga/Gb
• CSA C22.2 No.0-10
• RoHS 3 (2015/863/EU)

Contact

Technical docs: sales@powergearx.com

For more detailed information:3300 NSv Proximity Transducer System Datasheet
