Overview

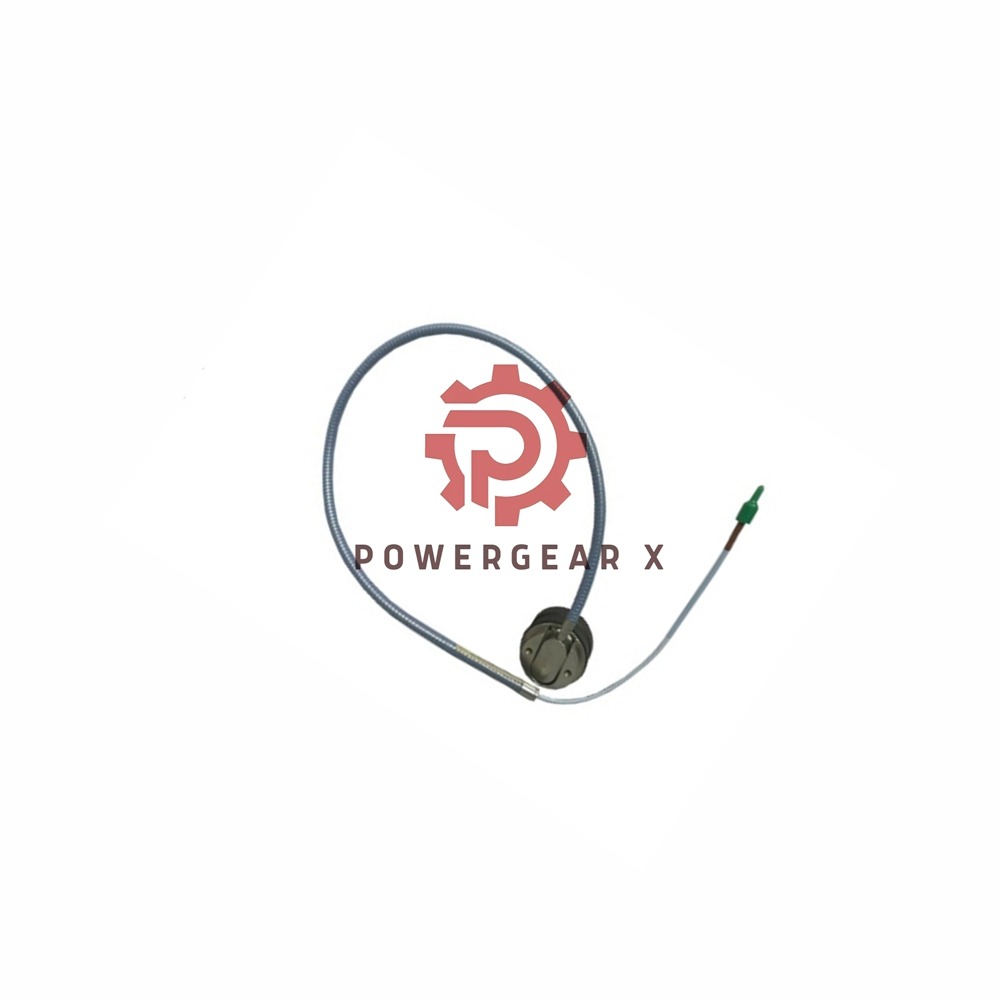

The Bently Nevada 330876-03-10-00-CN 3300 XL 50 mm Proximity Probe is a robust solution for monitoring machinery in extreme environments. Its smooth, side-exit design and advanced high-temperature FluidLoc cable ensure superior performance and reliability in demanding conditions such as steam turbine DE applications. Engineered with precision, this probe offers a 50 mm linear sensing range and compatibility with specific Proximitor Sensors for maximum efficiency.
Features
- Brand: Bently Nevada
- Model: 330876-03-10-00-CN
- Cable Type: High-temperature FluidLoc with perfluoroalkoxyethylene (PFA) insulation
- Design: Smooth, side-exit probe case for ease of installation
- Connector: ClickLoc connectors with contamination prevention features
- Temperature Tolerance: Operates continuously at up to 200°C and intermittently at 250°C
- Sealing: Front and rear seals for moisture resistance
Technical Specifications
| Specification | Details |
|---|---|
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) without barriers |
| Output Resistance | 50 Ω |
| Linear Range | 1.3 to 29.2 mm (50 to 1150 mils) |
| Average Scale Factor (ASF) | 394 mV/mm (10 mV/mil) nominal |
| Deviation from Best Fit Line | Less than ±0.74 mm (±29 mils) |
| Extension Cable Material | Triaxial PFA-insulated FluidLoc cable |
| Minimum Target Size | 102 mm (4.0 in) diameter (flat target) |
| Case Diameter | 1.99 inches |
Suffix Meaning
- 03: Smooth 1.99 in diameter, side-exit case
- 10: Total length of 1.0 meter (3.3 feet)
- 00: High-temperature FluidLoc cable
- CN: Country-specific agency approvals
Applications
This probe is ideal for high-temperature environments such as steam turbine DEs and other critical industrial settings. It excels in applications requiring reliable vibration and displacement monitoring, particularly where moisture and temperature extremes are a concern.
FAQ
- What is the operating temperature range of the 3300 XL 50 mm Probe?
- It operates up to 200°C continuously and can withstand 250°C intermittently.
- What type of targets is recommended?
- Flat targets with a minimum diameter of 102 mm (4.0 inches) are advised.
- What does the High-Temperature FluidLoc Cable offer?
- Enhanced durability and resistance to environmental conditions like moisture and high temperatures.
- What makes the ClickLoc connector unique?
- It includes a removable collar for routing through tight spaces and ensures protection against contamination.
For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
