330730-080-01-CN Bently Nevada | Armored Extension Cable

Overview

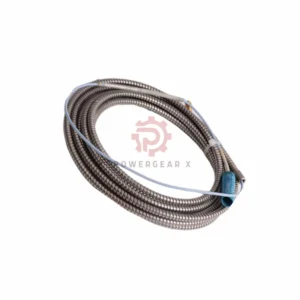

The Bently Nevada 3300 XL 11 mm Extension Cable (Product No. 330730-080-01-CN) is a high-quality, armored extension cable designed for use with the 3300 XL Proximity Probes. Manufactured in the USA, this cable features robust construction and is ideal for environments requiring reliable performance. The 8.0-meter (26.2 feet) version offers flexible, stainless-steel armor for additional protection. With excellent temperature tolerance, this extension cable ensures optimal functionality even in extreme operating conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11 mm Extension Cable
• Product No.: 330730-080-01-CN
• Length Option: 8.0 meters (26.2 feet)
• Connector & Cable Option: Armored cable (01)
• Agency Approval Option: CN (Country Specific)

Key Features:

• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Armor: Flexible AISI 302 SST with FEP outer jacket
• Operating/Storage Temperature: -52°C to +177°C (-60°F to +351°F)
• Tensile Strength: 330 N (75 lbs) from probe case to probe lead
• Connector Material: Gold-plated brass
• Extension Cable Weight: 45 g/m (0.5 oz/ft)

Extension Cable Resistance (8.0 m length):

• RCORE (from center conductor to center conductor): 2.0 ± 0.5 ohms
• RJACKET (from coaxial conductor to coaxial conductor): 0.6 ± 0.2 ohms

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
