Product details

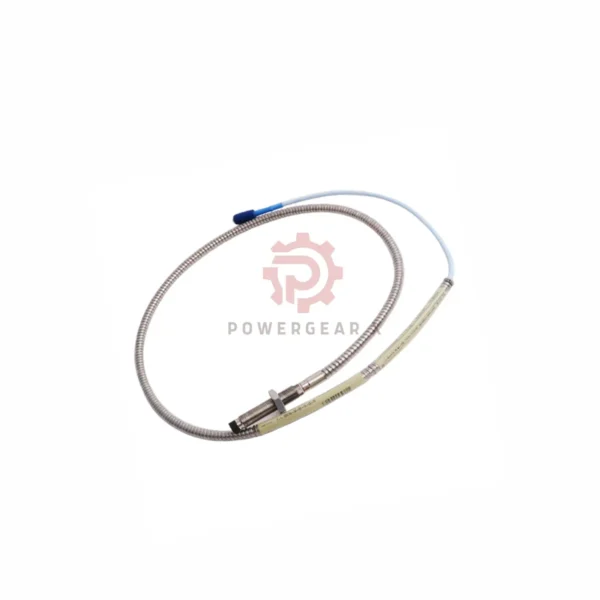

Bently Nevada 330708-00-40-10-02-00 – Precision Vibration Probe
Essential Features
- 1-meter industrial probe with 5/8-18 UNF threading
- Viton O-ring pressure sealing technology
- Gold-plated ClickLoc connector
- Made in USA with optional COO certificate
Technical Specifications
- Full Model: 330708-00-40-10-02-00
- Cable Length: 1.0 metre (3.3 ft)
- Case Length: 4.0 inches
- Resistance: 5.9Ω ±0.5Ω
- Cable Type: 75Ω triaxial FEP
- Temp Range: -51°C to +177°C
- Weight: 0.17kg
Mechanical Details
- Thread Type: 5/8-18 UNF
- Max Thread Engagement: 0.938 inch
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Min Bend Radius: 25.4mm (1.0 inch)
Installation Guide
- Max Torque: 45.2 N•m (400 in•lb)
- Recommended Torque: 15.2 N•m (133 in•lb)
- Connector Torque: Finger tight (max 0.565 N•m)
- Avoid temperatures below -34°C (-30°F)
Compatibility
- Works with 3300 XL monitoring systems
- Fits standard 5/8-18 UNF mounting points
- Pairs with extension cables (1m, 5m, 9m)
Environmental Ratings
- Pressure sealed for industrial environments
- Vibration resistant design
- Chemical-resistant FEP cable insulation
Package Contents
- 3300 XL proximity probe
- Installation documentation
- 12-month manufacturer warranty
Shipping Options
- FedEx International Priority
- UPS Worldwide Express
- DHL Global Mail Packet Plus
- Tracked shipments worldwide
FAQ
Q: Minimum installation temperature?
A: Do not expose below -34°C (-30°F)
Q: Pressure testing available?
A: Custom testing through special request
Q: Alternative cable lengths?
A: Available in 1m, 5m, and 9m versions
Q: Thread compatibility?
A: 5/8-18 UNF standard (other threads available)
