Product details

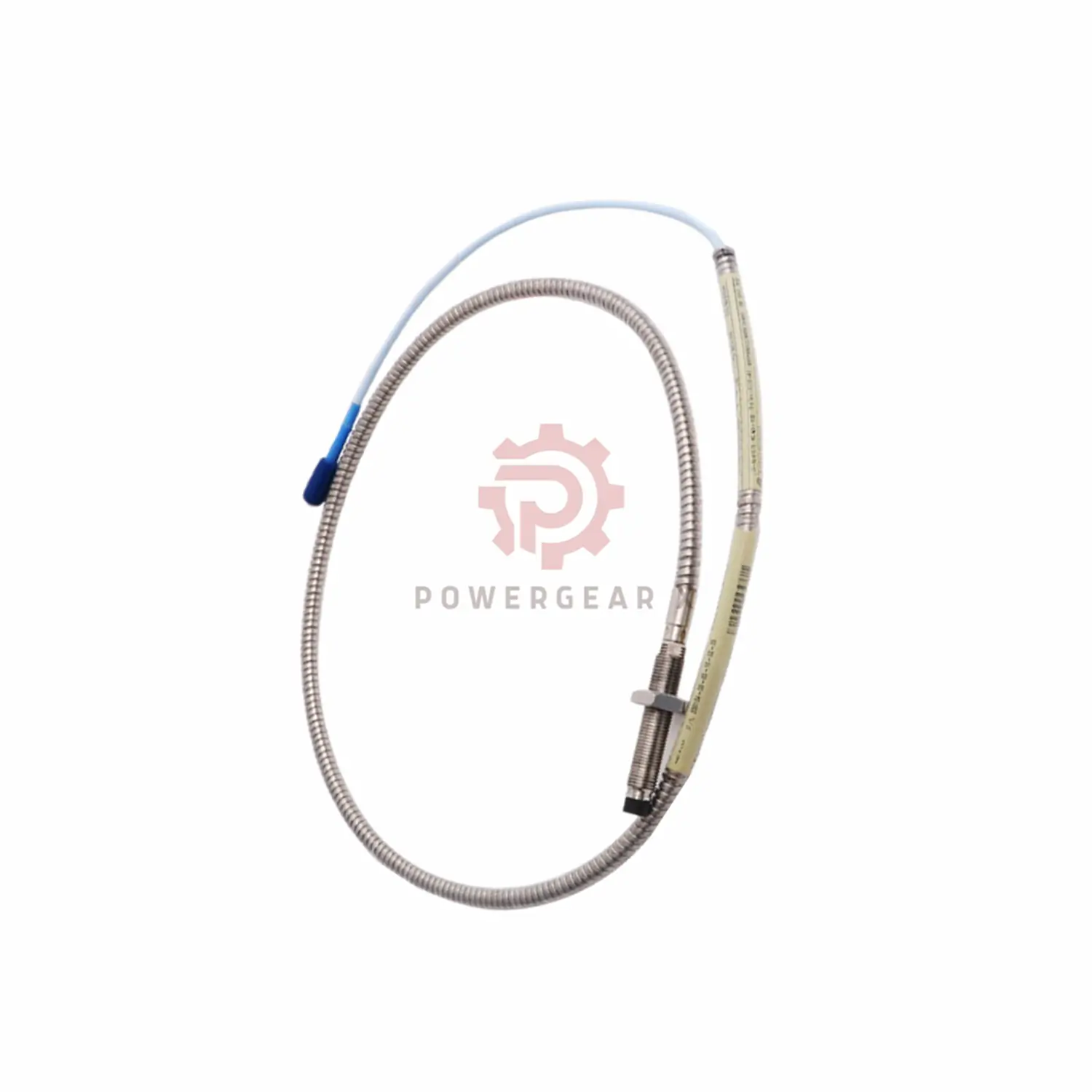

Bently Nevada Long-Cable Vibration Sensor
5-meter industrial probe for critical machinery monitoring. Features ClickLoc connector and multiple international certifications.
Technical Specifications
| Part Number | 330708-00-24-50-02-05 |
| Cable Length | 5.0 meters (16.4 ft) |
| Case Length | 2.4 inches |
| Resistance | 7.2Ω ±0.8 |
| Temperature | -51°C to +177°C |
Suffix Details
- 00 = No unthreaded section
- 24 = 2.4 inch case
- 50 = 5.0 meter cable
- 02 = Standard ClickLoc connector
- 05 = Multiple agency approvals
Performance Data
- Thread Type: 5/8-18 UNF
- Max Thread Depth: 0.938 inch
- Torque Range: 133-400 in-lb
- Min Bend Radius: 25.4mm
- Cable Type: 75Ω triaxial FEP
Environmental Ratings
- Seal material: Viton O-ring
- Min install temp: -34°C
- Vibration resistance: Up to 10g
- Humidity tolerance: 5-95% non-condensing
Installation Requirements
- Must use with 5m Proximitor Sensor
- Recommended torque: 133 in-lb
- Max torque: 400 in-lb
- Avoid sharp cable bends
- Check O-ring before installation
Certifications
Multiple international approvals (Option 05). COO available on request.
Package Contents
- 1x Proximity probe
- Installation documentation
- 12-month manufacturer warranty
Shipping Options
FedEx | UPS | DHL – Worldwide delivery
FAQ
Q: Why must I use 5m Proximitor Sensor?
A: Electrical calibration matches cable length for accurate readings.
Q: Can I use in high-temperature areas?
A: Yes, rated for +177°C (351°F) continuous operation.
Q: Chemical resistance?
A: PPS tip and stainless steel provide excellent chemical resistance.
Q: How to check if probe is working?
A: Measure resistance between center and outer conductors.
Q: Warranty coverage?
A: 12 months from shipment date for manufacturing defects.
