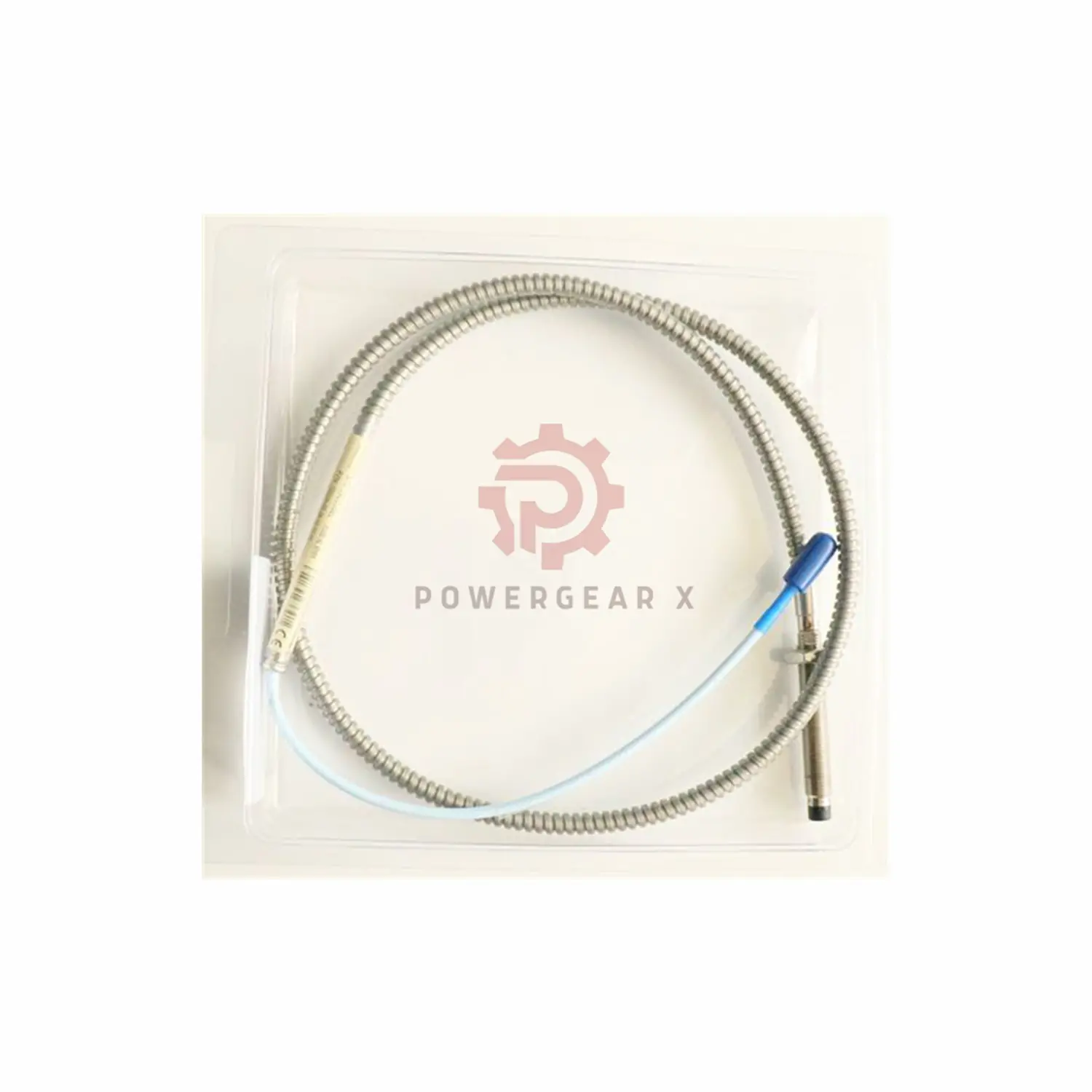

Bently Nevada Long-Reach Vibration Sensor
Industrial-grade 5m proximity probe with connector protector. Designed for critical machinery monitoring with multiple international certifications.
Core Specifications
| Part Number | 330708-00-24-50-01-05 |
| Cable Length | 5.0 meters (16.4 ft) |
| Resistance | 7.2Ω ±0.8 |
| Temperature | -51°C to +177°C |
Suffix Breakdown
- 00 – 0in unthreaded section
- 24 – 2.4in case length
- 50 – 5.0m cable length
- 01 – ClickLoc with protector
- 05 – Multiple certifications
Electrical Specifications
- Cable type: 75Ω triaxial FEP
- Insulation resistance: 100MΩ min
- Dielectric strength: 500V AC
- Response time: <5ms
Mechanical Specifications
- Thread type: 5/8-18 UNF
- Max thread depth: 0.938 in
- Min bend radius: 25.4mm
- Seal material: Viton O-ring
- Weight: 0.17kg
Installation Guide
- Recommended torque: 133 in-lb
- Max torque: 400 in-lb
- Min install temp: -34°C
- Requires 5m Proximitor Sensor
- Use connector protector always
Performance Data
- Vibration range: 0-10kHz
- Linearity: ±0.5% full scale
- Hysteresis: <0.1%
- Shock resistance: 50g peak
Certifications
Multiple international approvals (Option 05). COO available on request.
Package Contents
- 1x Proximity probe
- Connector protector
- 12-month manufacturer warranty
Global Shipping
FedEx | UPS | DHL – Worldwide delivery
FAQ
Q: Why 5m cable length?
A: For installations where sensor is distant from monitor.
Q: Special sensor requirement?
A: Must use with 5m Proximitor Sensor only.
Q: Pressure testing available?
A: Contact custom department for special requests.
Q: Chemical resistance?
A: PPS tip and stainless steel provide excellent resistance.
Q: Warranty period?
A: Full 12 months from shipment date.
