Product details

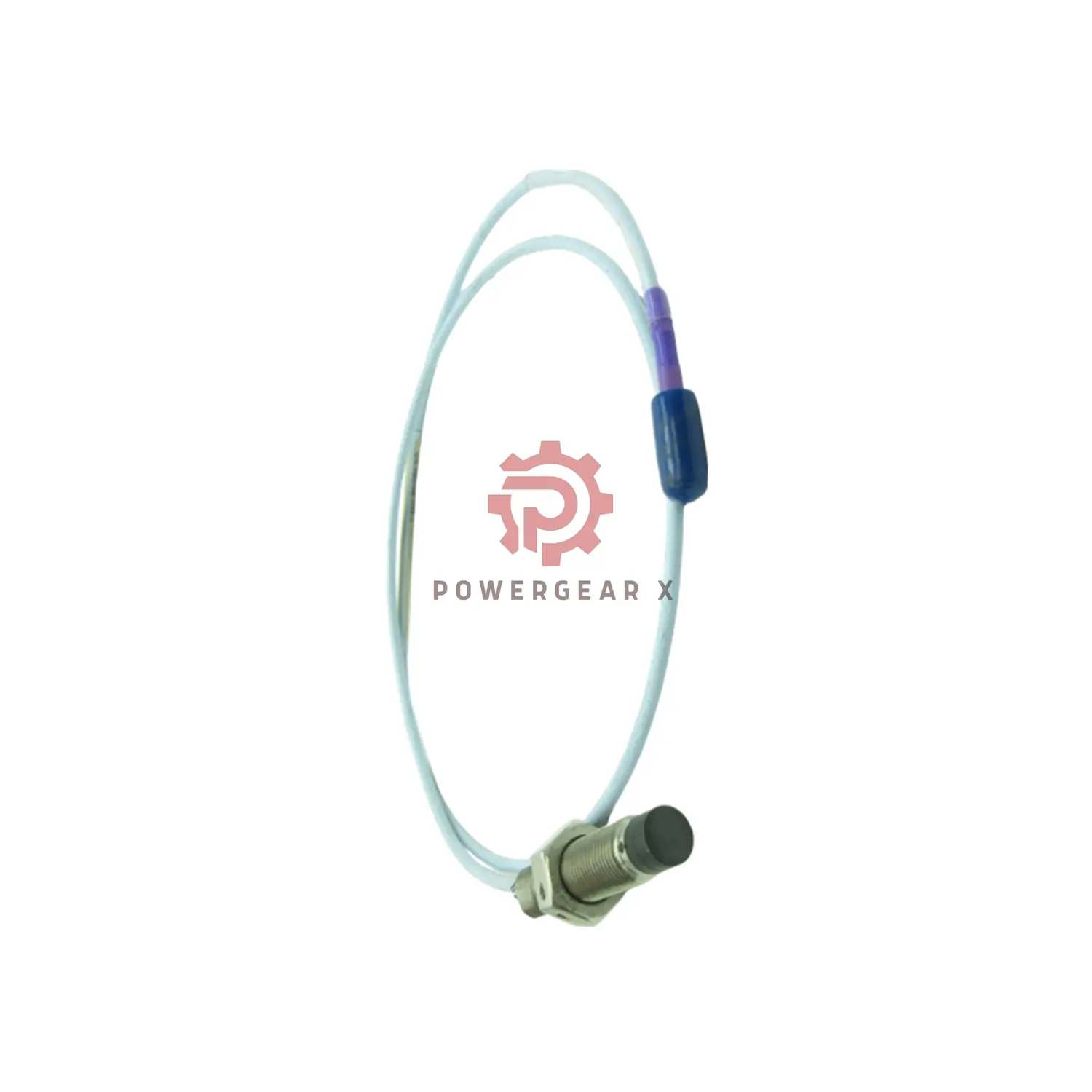

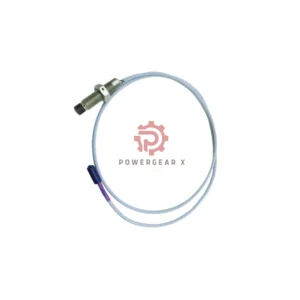

Bently Nevada 3300 XL 11mm Proximity Probe: Extended Industrial Sensing
Professional-grade 11mm vibration probe with extended 3.0″ stainless steel case. Perfect for challenging machinery monitoring. Made in USA with precision engineering.
Key Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Product Code: 330707-00-30-10-02-00
- Case Length: 3.0 inches (special extended version)
- Cable Length: 1.0 metre (3.3 feet)
- Temp Range: -51°C to +177°C (-60°F to +351°F)
- Thread Size: 5/8-18 UNF
Technical Highlights
- PPS probe tip with Viton O-ring pressure seal
- Robust AISI 304 stainless steel housing
- 75 Ω triaxial FEP-insulated cable
- Miniature coaxial ClickLoc connector
- Probe resistance: 5.9 ± 0.5 ohms
- Minimum bend radius: 25.4mm (1.0 in)
Installation Guide
- Optimal torque: 15.2 N•m (133 in•lb)
- Max torque: 45.2 N•m (400 in•lb)
- Max thread engagement: 0.938 in
- Avoid installation below -34°C (-30°F)
- Connector torque: Finger tight only
Certifications & Packaging
- Optional Certificate of Origin (COO)
- No agency certifications required
- Shipping Weight: 0.17 kg
- Includes: Probe, cable, connector
Shipping & Warranty
12-month manufacturer warranty. Worldwide delivery via FedEx, UPS, DHL.
FAQ
Q: What makes this version different?
A: Features extended 3.0-inch case length for deeper installations
Q: Can it handle high-pressure environments?
A: Viton sealed for differential pressure – contact for custom pressure testing
Q: Available cable lengths?
A: Standard: 1m (this unit), 5m or 9m options
