Product details
Durable Long-Reach Sensor for Demanding Sites

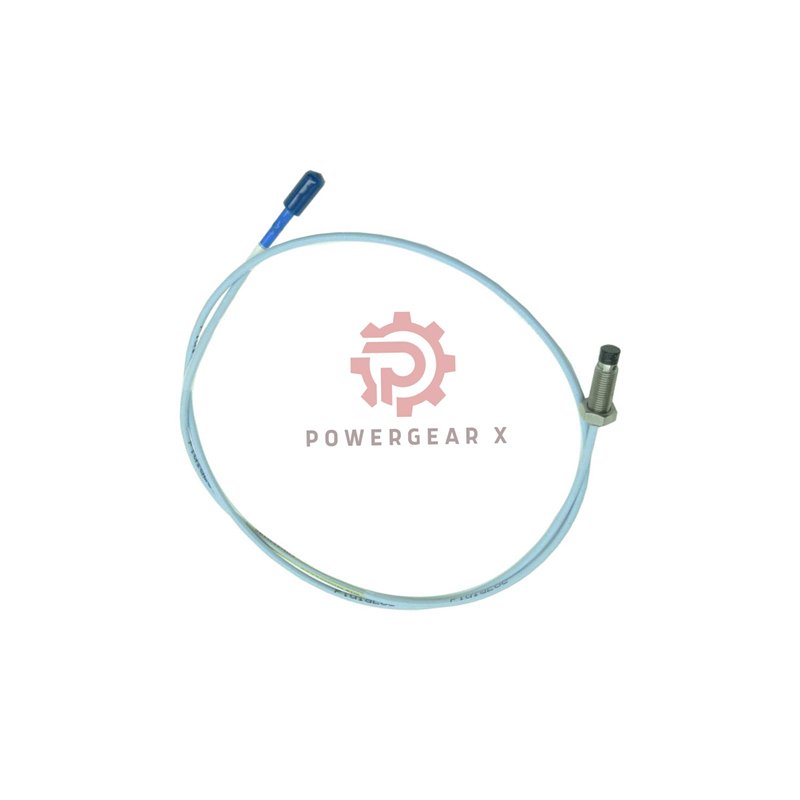

The Bently Nevada 330707-00-25-90-12-05 combines extended reach with robust protection. This 9-meter probe features a rugged FluidLoc cable and holds multiple safety approvals. It is built for reliable performance in tough industrial environments.
Model Number Explained
- Base Model 330707: 3300 XL 11mm Probe, 5/8-18 UNF, No Armor
- Suffix Breakdown:
- 00: Unthreaded Length = 0.0 in
- 25: Case Length = 2.5 in
- 90: Cable Length = 9.0 m (29.5 ft)
- 12: Connector = ClickLoc, FluidLoc Cable
- 05: Approvals = Multiple Agencies
Detailed Product Specifications
- Brand: Bently Nevada
- Series & Type: 3300 XL 11mm Proximity Probe
- Exact Model: 330707-00-25-90-12-05
- Mounting: 5/8-18 UNF Thread
- Probe Dimensions: Short 2.5-inch Stainless Steel Body
- Cable System: 9.0m FluidLoc, 75 Ω Triaxial
- Connection: Miniature Coaxial ClickLoc
- Tip Material: PPS (Polyphenylene Sulfide)
- Key Electrical Spec: Probe Resistance = 8.5 Ω ± 1.1 Ω
- Environmental Rating: -51°C to +177°C Operating Temp
- Installation Specs:
- Recommended Torque: 15.2 N·m (133 in-lb)
- Maximum Torque: 45.2 N·m (400 in-lb)
- Min Cable Bend: 25.4 mm (1.0 in)
- Sealing: Viton O-Ring (Seals tip-to-case pressure)
- Weight: 0.17 kg
Top Features for Your Application
- Harsh Environment Ready: FluidLoc cable resists oils, chemicals, and moisture.
- Global Compliance: Carries multiple international hazardous area approvals.
- Space-Saving Design: Short case fits compact mounting locations.
- Extended Connectivity: Long 9m cable allows flexible routing to distant monitors.
- Precision Built: Consistent electrical specs ensure accurate system calibration.
Technical FAQ & Buying Advice
Product Differentiation
- How is model 330707-00-25-90-12-05 different from the similar ’11’ option?
- The ’12’ option has a ClickLoc connector without a separate connector protector. The ’11’ option includes a physical protector cap. Both use FluidLoc cable.
Cable & Durability
- Is the FluidLoc cable on this model suitable for direct burial or conduit?
- It is highly resistant to fluids and many chemicals. For direct burial, additional mechanical protection (like a conduit) is still recommended for long-term security.
Certifications & Use
- What does “Multiple Approvals” (Option 05) allow me to do?
- This means the probe is certified for use in various classified hazardous areas globally (e.g., ATEX, IECEx zones). Always verify it matches your site’s specific certification requirement.
Warranty Coverage
- If the FluidLoc cable jacket gets damaged during my 12-month warranty, is it covered?
- The warranty covers defects in materials or workmanship. Damage from external causes like crushing, cutting, or excessive bending during installation is not covered.
Delivery & Ordering
- Can I track my order of the 330707-00-25-90-12-05?
- Yes. Once shipped via FedEx, UPS, or DHL, you will receive a tracking number by email to monitor your delivery in real-time.
Order or Inquire Today
For stock availability and competitive pricing on the 330707-00-25-90-12-05, contact our sales team.
Email: sales@powergearx.com
WhatsApp/Call: +86 18030005825
