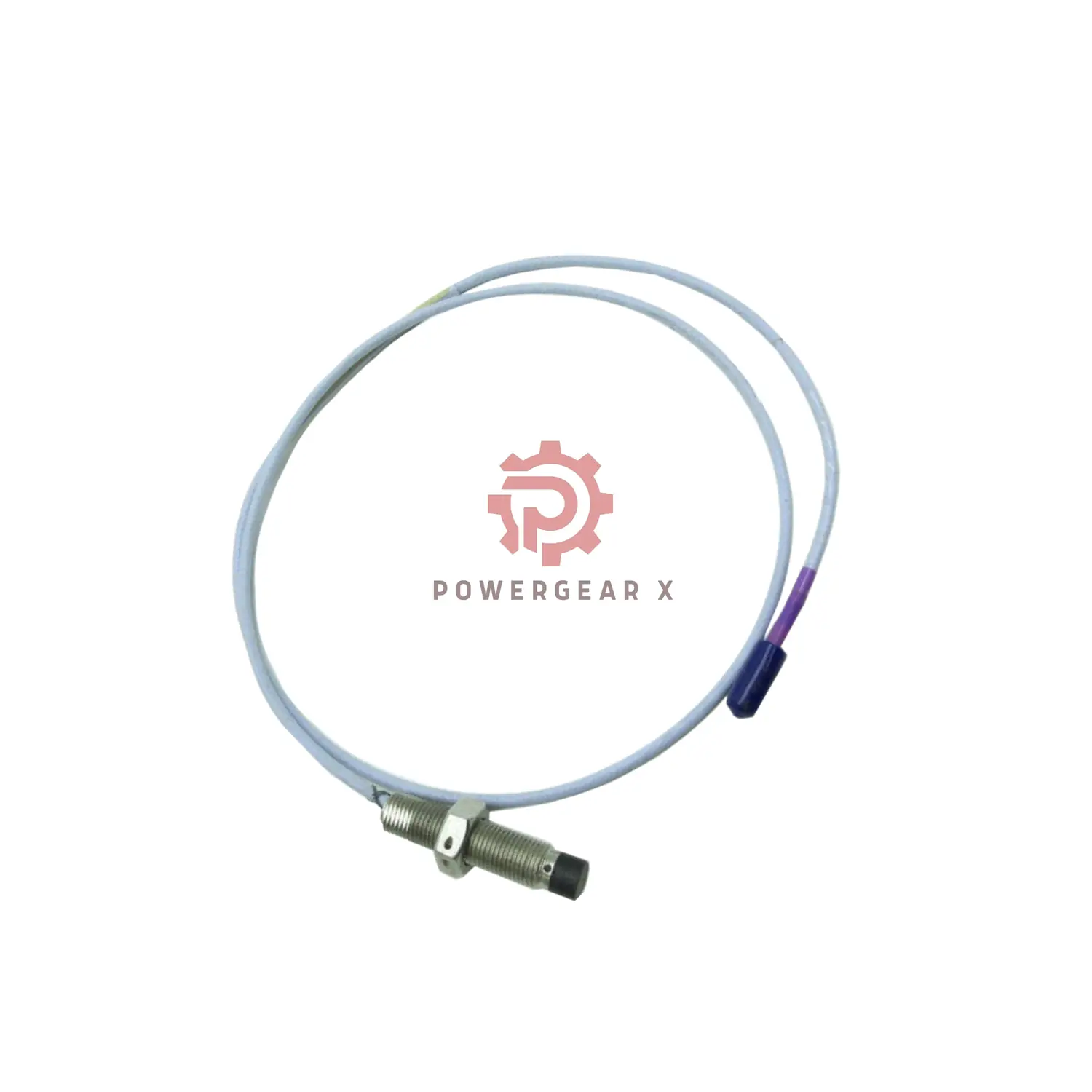

330707-00-24-10-02-00 | Bently Nevada 11 mm Proximity Probe

Bently Nevada 3300 XL Proximity Probe: Compact Vibration Monitoring

Product Summary

USA-made vibration probe with short 1m cable. Works from -51°C to +177°C. Perfect for tight spaces in motors and pumps.

Product Code Explained

• 330707 – 11mm Probe (5/8-18 UNF)
• 00 – 0″ unthreaded section
• 24 – 2.4″ case length
• 10 – 1.0 meter cable
• 02 – ClickLoc connector
• 00 – No special approvals

Key Specifications

• Cable Length: 1.0 meter (3.3 ft)
• Resistance: 5.9Ω ±0.5Ω
• Case Material: Stainless steel
• Tip Material: PPS plastic
• Thread Size: 5/8-18 UNF
• Max Temp: +177°C (351°F)
• Min Bend Radius: 25.4 mm
• Shipping Weight: 0.17 kg

Installation Notes

• Tighten to 15.2 N•m torque
• Keep cable bends over 25mm
• Do not install below -34°C

Shipping & Support

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL

Technical Questions

• Q: Can I use this in food processing equipment?
  A: Yes, stainless steel and PPS materials are food-safe.
• Q: What is the minimum cable bend radius?
  A: Minimum 25.4mm bend radius required.
• Q: Does it work with 3300 monitoring systems?
  A: Yes, fully compatible with Bently Nevada 3300 monitors.
• Q: Can I cut the cable length?
  A: No, cutting voids warranty.
• Q: Is calibration required?
  A: Factory calibrated – ready to install.

Download Documents

Get detailed information:

• • Installation guide
  • Specification sheet
