Product Introduction

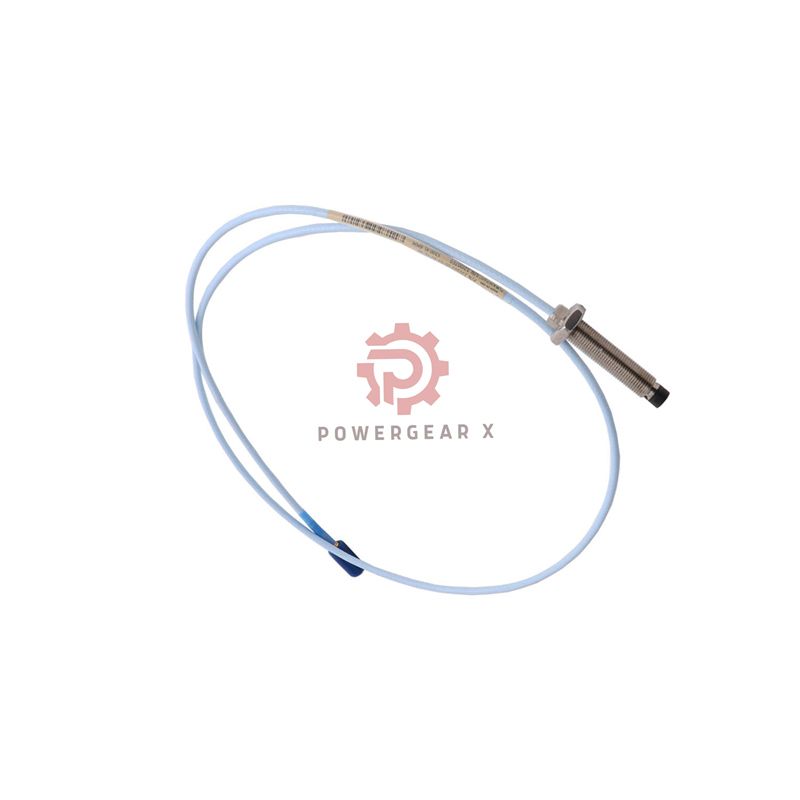

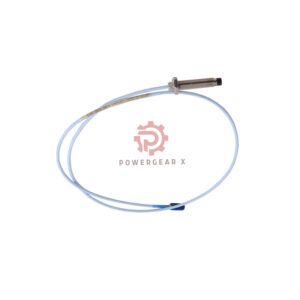

Introducing the heavy-duty Bently Nevada 330707-00-20-50-12-00. This 3300 XL series 11mm proximity probe is built for challenging environments. It features a protective stainless steel armor and a special FluidLoc cable. This design prevents oil and fluid ingress along the cable. It is made in the USA for reliable vibration monitoring. Perfect for wet or oily machinery applications.
Ordering Code Structure
- 330707: Core Model – 3300 XL 11mm Probe, 1/2-20 UNF Thread, With Armor
- 00: Unthreaded Section – 0 inches
- 20: Case Length – 2.0 inches
- 50: Cable Length – 5.0 meters (16.4 feet)
- 12: Connection – ClickLoc Connector with FluidLoc Cable
- 00: Agency Approval – Not Required
Complete Technical Specifications
- Brand & Family: Bently Nevada 3300 XL Probes
- Product Type: 11mm Proximity Probe with Armor & FluidLoc
- Electrical Data
- Probe Resistance (5.0m): 7.2 Ω ± 0.8 Ω
- Cable Construction: 75 Ω Triaxial, FEP Insulated
- Connector System: Miniature Coaxial ClickLoc
- Physical & Mechanical Data
- Mounting Thread: 1/2-20 UNF
- Max Thread Engagement: 0.750 inches
- Case Material: AISI 304 Stainless Steel (Armored)
- Tip Material: Chemical-Resistant PPS Plastic
- Recommended Case Torque: 15.2 N•m (133 in•lb)
- Connector Torque: Hand-tight only (Max 0.565 N•m)
- Cable Bend Radius: Minimum 25.4 mm (1.0 inch)
- Unit Weight: 0.17 kg
- Environmental & Operational Limits
- Full Temperature Range: -51°C to +177°C (Storage & Operation)
- Pressure Seal: Viton O-Ring (Differential Pressure)
- Critical Note: Avoid continuous temperatures below -34°C to prevent seal damage.
Installation & Handling Notes
Install using the 1/2-20 UNF thread. Engage up to 0.75 inches of thread. Tighten to 15.2 N•m. Connect the FluidLoc cable with the ClickLoc connector—hand-tight is enough. Route the armored cable to avoid extreme bends (stay above 1-inch radius). The FluidLoc feature is active once connected; ensure connectors are clean and dry before assembly.
System Compatibility
This 330707-00-20-50-12-00 probe is designed exclusively for use with the 5-meter Bently Nevada 3300 XL Proximitor Sensor. Do not use it with 1m or 9m system components. It is a direct, upgraded replacement for standard probes in applications where fluid ingress or cable damage is a concern.
Quality Promise & Delivery
- Condition: 100% New, Genuine Bently Nevada Product.
- Manufacturer Warranty: 12 Months from purchase date.
- Global Shipping: Available via FedEx, UPS, and DHL express services.
Frequently Asked Questions
How does the FluidLoc cable actually work?
It uses a special sealing design within the cable and connector. This creates a barrier that blocks fluids from traveling through the cable’s interior, preventing them from reaching the machine casing or sensor.
Can I use this 5-meter probe with a 9-meter Proximitor system?
No. The product note states it is for use with the 5-meter Proximitor only. Using mismatched lengths will cause calibration and performance errors.
What is the main advantage of the armor?
The stainless steel braided armor protects the inner cable from being cut, crushed, or worn through by abrasion. This is critical in areas with moving parts or rough surfaces.
Is the Viton O-ring chemical resistant?
Viton has good resistance to many oils, fuels, and chemicals. However, for specific aggressive chemicals, you should verify compatibility or contact Bently Nevada for custom options.
The specs warn about cold temperatures. Why?
The elastomer in the pressure seal can become brittle and crack if frozen below -34°C. If your machine operates in very cold conditions, consider warm tracing or insulation for the probe body.
Expert Selection Tips
Choose this 330707-00-20-50-12-00 model when you need both cable armor and fluid sealing. First, confirm your system uses a 5-meter Proximitor. Second, verify your mounting hole is 1/2-20 UNF. This is the premium choice for harsh, wet, or high-abuse environments.
