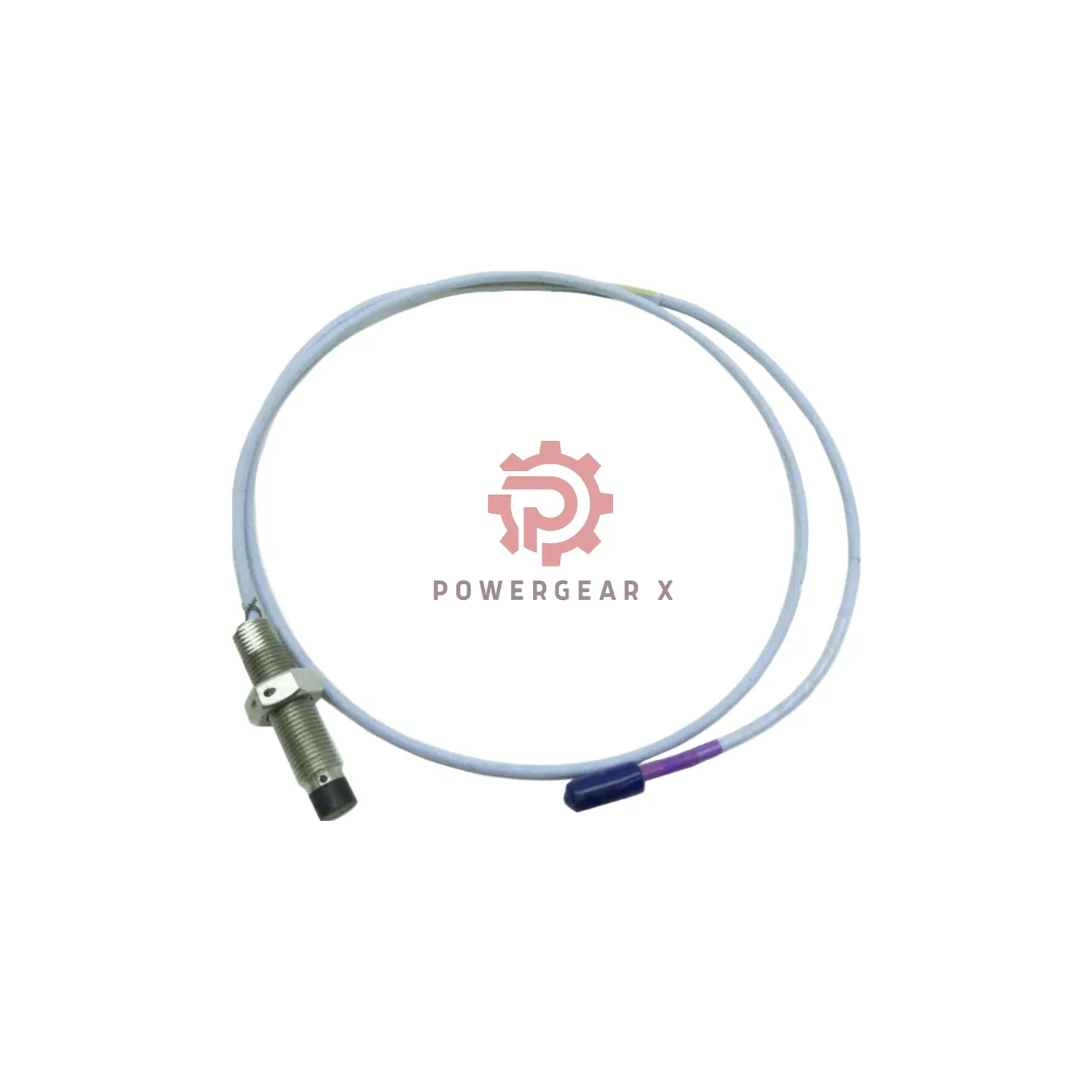

330707-00-20-10-11-00 | Bently Nevada 11 mm Proximity Probe

Bently Nevada 330707-00-20-10-11-00 – Sealed Industrial Probe

Key Advantages

• Compact 2-inch case with FluidLoc technology
• Built-in connector protector for harsh environments
• 5/8-18 UNF threaded installation
• Made in USA with optional COO certificate

Technical Specifications

• Full Model: 330707-00-20-10-11-00
• Cable Length: 1.0 metre (3.3 ft)
• Resistance: 5.9Ω ±0.5Ω
• Connector: ClickLoc with protector
• Temp Range: -51°C to +177°C
• Weight: 0.17kg
• Min Bend Radius: 25.4mm (1 inch)

Construction Details

• Case: AISI 304 stainless steel
• Tip: PPS polymer for chemical resistance
• Seal: Viton O-ring pressure barrier
• Cable: 75Ω triaxial FEP insulation

Installation Guide

• Max Torque: 45.2 N•m (400 in•lb)
• Safe Torque: 15.2 N•m (133 in•lb)
• Connector Torque: Finger tight only
• Avoid sustained cold below -34°C (-30°F)

Compatibility

• Works with 1m Proximitor Sensors
• 3300 XL monitoring systems
• Standard 5/8-18 UNF mounts
• M14/M16 threaded alternatives

Environmental Protection

• FluidLoc prevents oil migration
• Connector protector resists moisture
• Corrosion-resistant materials

Package Includes

• Proximity probe with FluidLoc cable
• Connector protector
• Installation guide
• 12-month manufacturer warranty

Shipping Information

• FedEx International Priority
• UPS Worldwide Express
• DHL Global Mail Packet
• Tracked shipments with insurance

FAQ

Q: Why use connector protector?
A: Extra protection in humid/wet conditions

Q: Minimum operating temperature?
A: Rated to -51°C (-60°F) but avoid sustained cold below -34°C

Q: Pressure rating?
A: Seals differential pressure (custom testing available)

Q: Alternative cable lengths?
A: Available in 1m, 5m, and 9m versions
