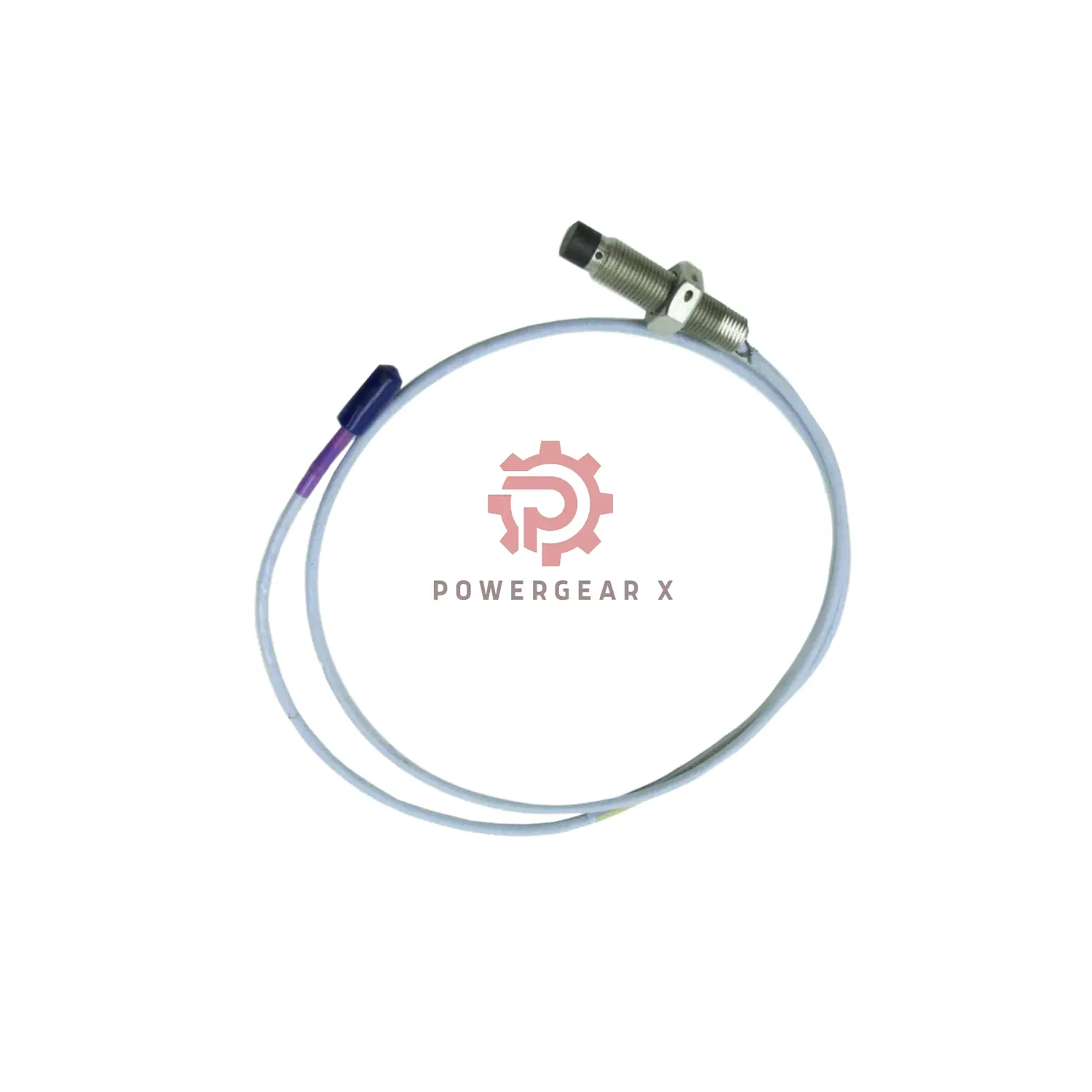

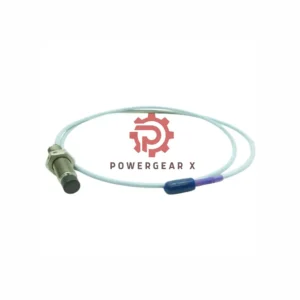

330707-00-20-10-02-00 | Bently Nevada 11 mm Proximity Probe

Bently Nevada 3300 XL 11mm Proximity Probe: Precision Industrial Sensing

Premium 11mm proximity probe for industrial machinery monitoring. Made in USA with robust stainless steel construction. Measures vibration and position in extreme conditions.

Key Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11mm Proximity Probe
• Full Product Code: 330707-00-20-10-02-00
• Measurement Range: 11mm sensing distance
• Accuracy: ±0.5 ohm probe resistance tolerance
• Output Signal: 75 Ω triaxial output
• Temp Range: -51°C to +177°C (-60°F to +351°F)
• Cable Length: 1.0 metre (3.3 feet)
• Thread Size: 5/8-18 UNF

Technical Features

• PPS probe tip with Viton O-ring seal
• AISI 304 stainless steel case
• FEP-insulated triaxial cable
• Miniature coaxial ClickLoc connector
• Probe resistance: 5.9 ± 0.5 ohms
• Max bend radius: 25.4mm (1.0 in)

Installation Guide

• Recommended torque: 15.2 N•m (133 in•lb)
• Max torque: 45.2 N•m (400 in•lb)
• Max thread engagement: 0.938 in
• Avoid temperatures below -34°C (-30°F) during installation
• Connector torque: Finger tight (max 0.565 N•m)

Certifications & Packaging

• Optional Certificate of Origin (COO)
• Agency approval: Not required (00 option)
• Shipping Weight: 0.17 kg
• Pack includes: Probe unit with cable and connector

Warranty & Shipping

12-month manufacturer warranty. Global shipping via FedEx, UPS, DHL.

FAQ

Q: Can this probe handle high-pressure environments?
A: Designed for differential pressure sealing – contact us for pressure testing

Q: What cable lengths are available?
A: Standard lengths: 1m, 5m, 9m (this model: 1m)

Q: Is this explosion-proof?
A: Agency approval option 00 = not certified for explosive environments
