Product details

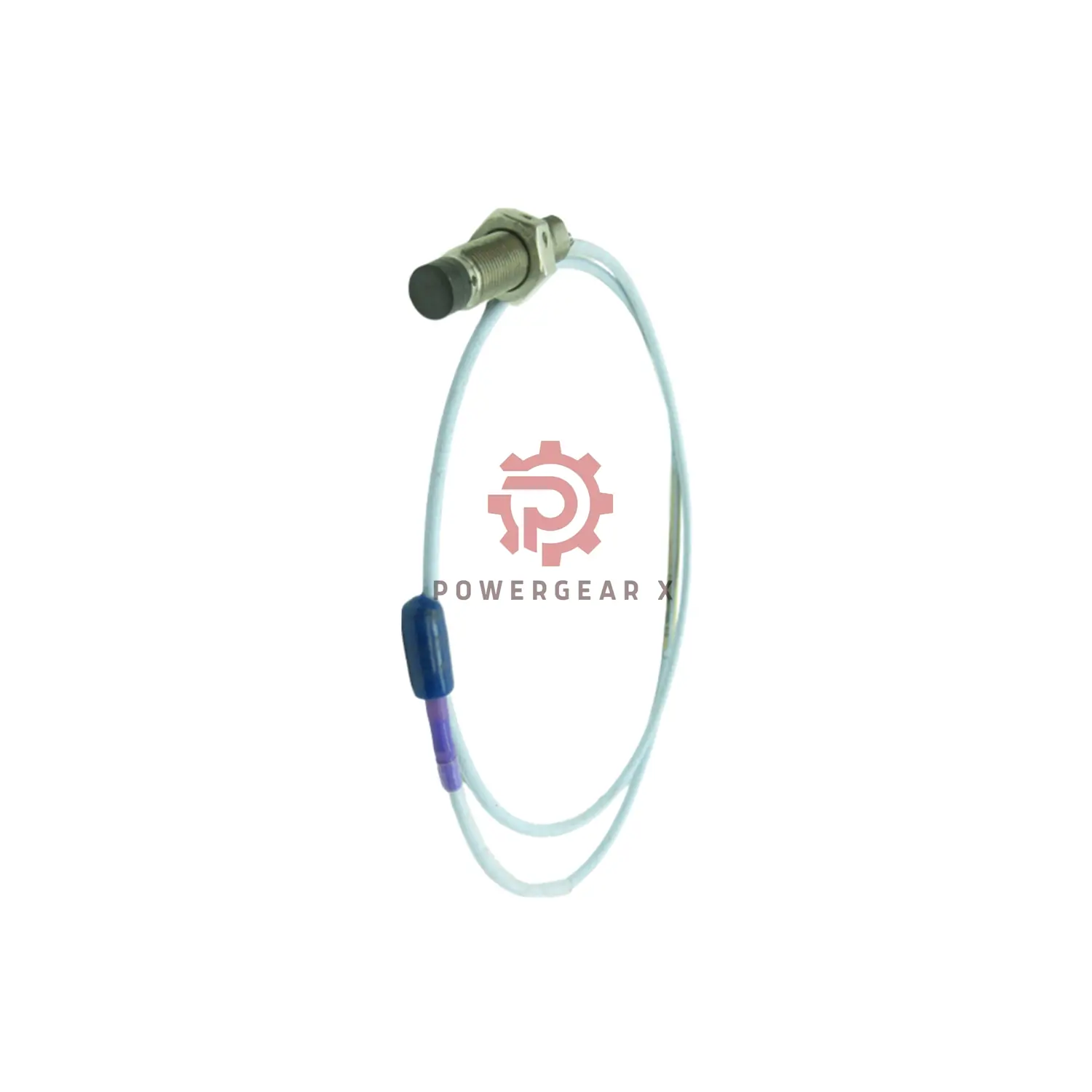

Bently Nevada 3300 XL Compact Probe: Short-Body Design with Extended Reach
Core Product Identity
This variant features a unique combination of 1-inch case and 9-meter cable. Made in USA for industrial vibration monitoring.
Product Number Breakdown
- 330707: 11mm Probe body
- 00: Zero unthreaded length
- 10: 1.0 inch case length
- 90: 9.0 meter cable
- 02: ClickLoc connector
- 05: Multiple global approvals
Technical Specifications
- Case Length: 1.0 inch (25.4 mm)
- Cable Length: 9.0 meters (29.5 ft)
- Electrical Resistance: 8.5Ω ±1.1Ω
- Temperature Range: -51°C to +177°C
- Thread Specification: 5/8-18 UNF
- Min Bend Radius: 25.4 mm
- Case Torque: 15.2 N•m recommended
- Shipping Weight: 0.17 kg
Installation Guidance
- Apply 15.2 N•m torque to case threads
- Hand-tighten connector only
- Maintain minimum 25mm cable bend
- Prevent exposure below -34°C
Certifications & Shipping
- Multiple international approvals
- 12-month warranty
- FedEx/UPS/DHL global delivery
Technical Questions Answered
- Q: Is this suitable for steam turbine monitoring?
A: Yes, handles temperatures up to 177°C. - Q: Can I use this in hazardous locations?
A: With Option 05 approvals, check local certifications. - Q: What’s the advantage of shorter case length?
A: Fits space-limited installations like motor bearings. - Q: Is the cable oil-resistant?
A: FEP-insulated cable resists oils and chemicals. - Q: How does cold weather affect installation?
A: Do not install below -34°C to protect seals.
Access Documentation
Download these resources:
