330703-000-080-10-02-00 | Bently Nevada 11 mm Proximity Probe

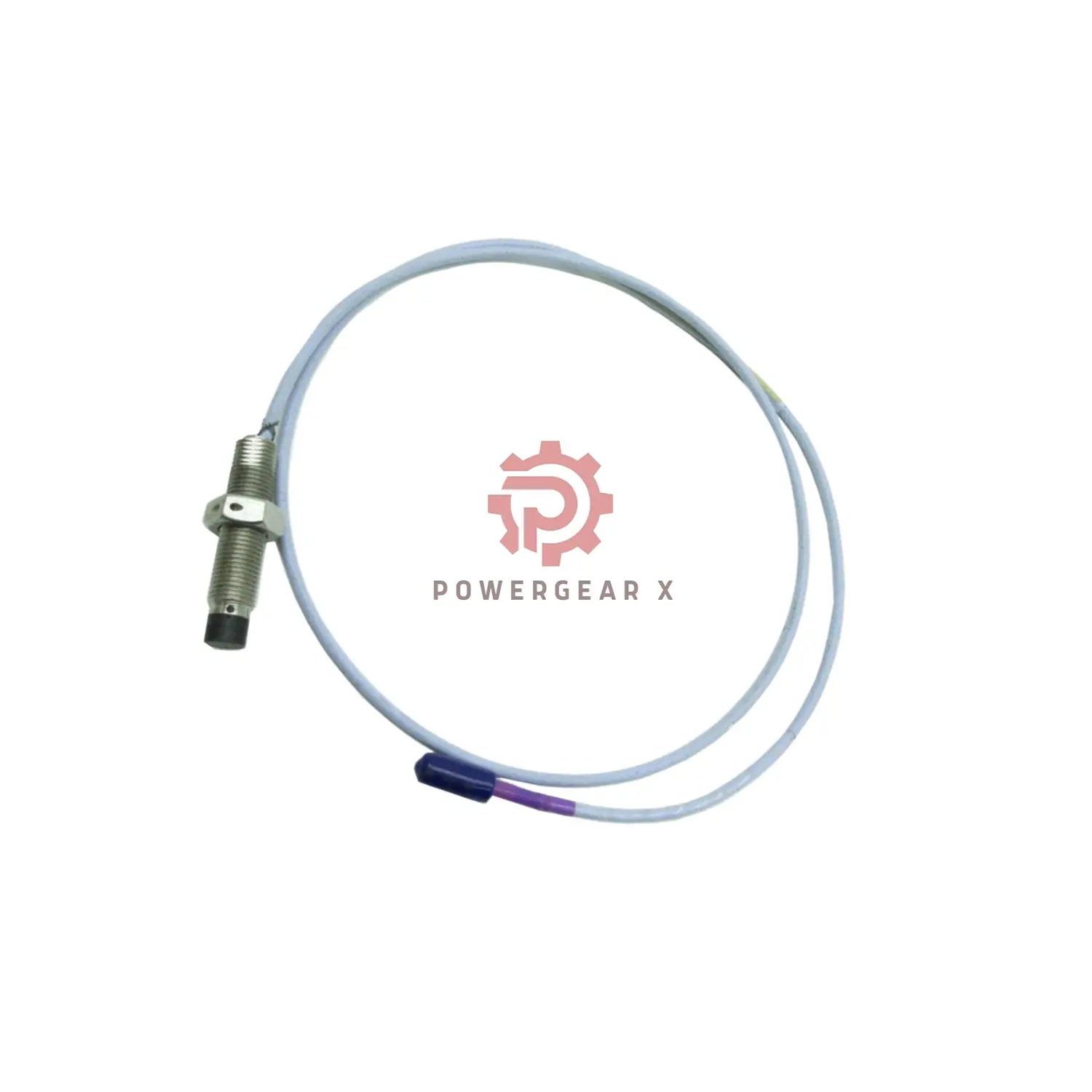

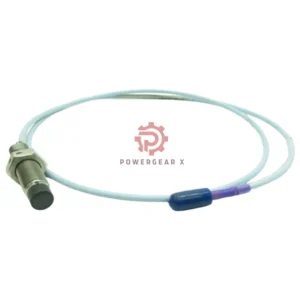

Bently Nevada 330703-000-080-10-02-00 3300 XL 11mm Proximity Probe

Key Specifications

• Measuring Range: 0-11mm
• Output Signal: -18V to -22V DC
• Accuracy: ±0.5% FS
• Frequency Response: 0-10kHz
• IP Rating: IP67

Enhanced Technical Data

• Cable Bend Radius: 25mm minimum
• Shock Resistance: 100g peak (11ms)
• Vibration Limit: 20g peak (20-2000Hz)
• EMI Protection: 300V/m RF field immunity

Installation Guide

• Mounting Torque: 21.1 N·m
• Thread Engagement: Max 21mm
• Sensor Gap: 1.27mm±0.25mm
• Alignment Tolerance: ±5° angular

Industrial Applications

• Gas turbine shaft vibration monitoring
• Pump bearing wear detection
• Compressor rotor eccentricity measurement
• Generator air gap monitoring

Model Suffix Breakdown (330703-000-080-10-02-00)

• 330703: Base Model
• 000: Unthreaded Length (00mm)
• 080: Case Length (80mm)
• 10: Cable Length (1.0m)
• 02: ClickLoc Connector
• 00: No Agency Approval

Package Includes

• Probe with 1m cable
• M14x1.5 mounting nut

Service Terms

• 12-month warranty
• Global Stock: 500+ units
• Shipping: FedEx/UPS/DHL
• Support: 24/7 technical hotline
