Product details

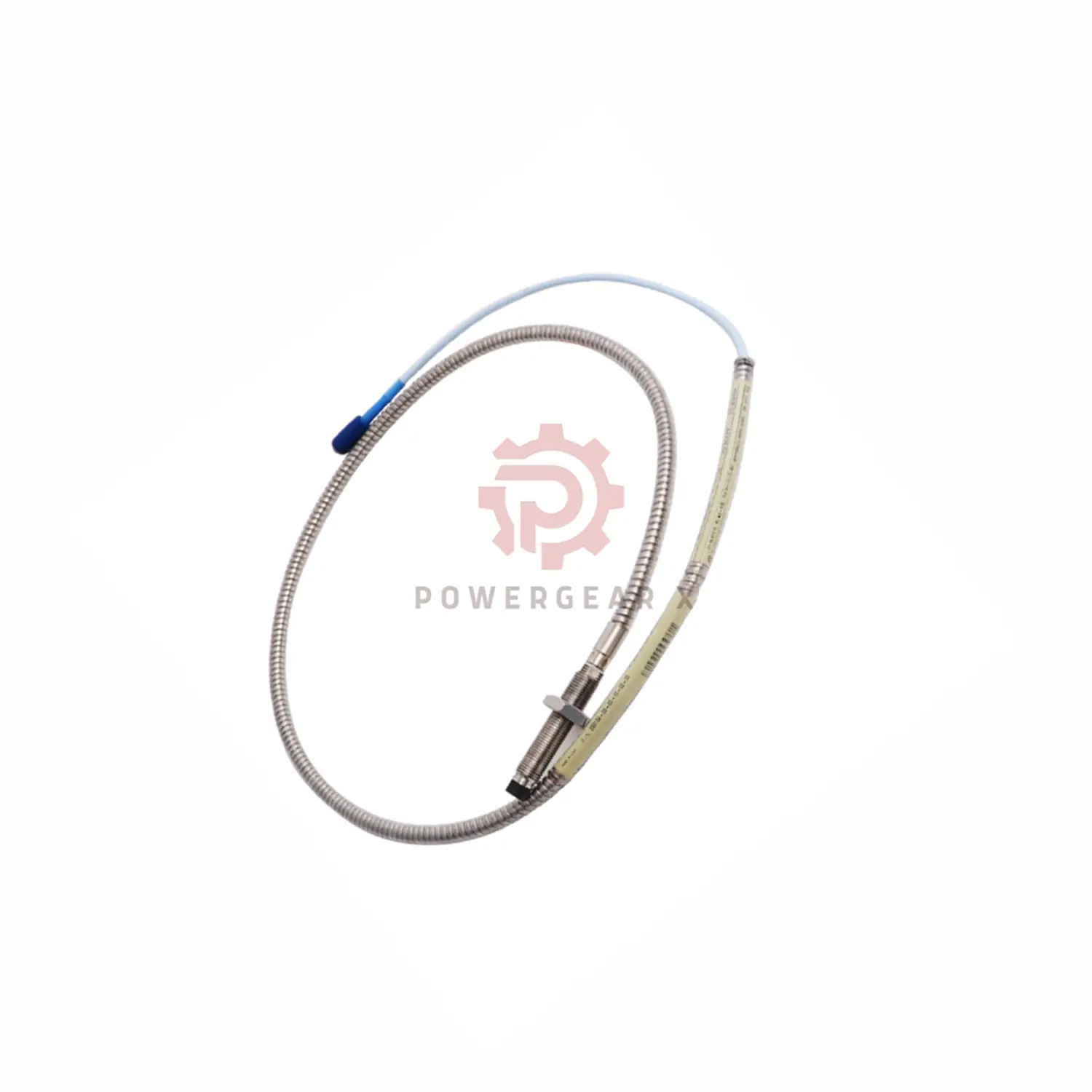

Bently Nevada 3300 XL 11mm Proximity Probe
Industrial-grade vibration monitoring solution for critical machinery. Made in USA with extreme temperature tolerance. Optional Certificate of Origin available.
PRODUCT CONFIGURATION
- Base Model: 330702
- Unthreaded Length: 00 (0 inch)
- Case Length: 30 (3.0 inch)
- Cable Length: 10 (1.0 metre)
- Connector Type: 02 (Miniature coaxial ClickLoc)
- Agency Approval: 00 (Not required)
CORE SPECIFICATIONS
- Thread Type: 1/2-20 UNF
- Max Thread Engagement: 0.750 in
- Case Torque: 15.2 N•m (133 in•lb) recommended
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 stainless steel
- Cable Resistance: 5.9Ω ±0.5 (1m length)
- Min Bend Radius: 25.4 mm (1.0 in)
PERFORMANCE DATA
- Temp Range: -51°C to +177°C (-60°F to +351°F)
- Seal Material: Viton O-ring
- Cable Type: 75Ω triaxial FEP-insulated
- Connector Torque: Finger tight (max 0.565 N•m)
- Weight: 0.17 kg
INSTALLATION NOTES
- Maintain 25mm clearance from other components
- Apply thread lubricant for high-temperature installations
- Never exceed 45.2 N•m case torque
- Route cables away from heat sources above 177°C
ORDER & SHIPPING
- Part Number: 330702-00-30-10-02-00
- Package: Single probe with armored cable
- Shipping: FedEx/UPS/DHL (1-3 business days)
- Warranty: 12 months material/workmanship
PROBE FAQ
Q: Minimum installation temperature?
A: Do not install below -34°C to preserve seal integrity
Q: Pressure testing available?
A: Custom testing service upon request
Q: Cable armor specifications?
A: 304 SST braid with crush resistance rating
Q: Replacement interval?
A: 5-year typical service life in standard conditions
